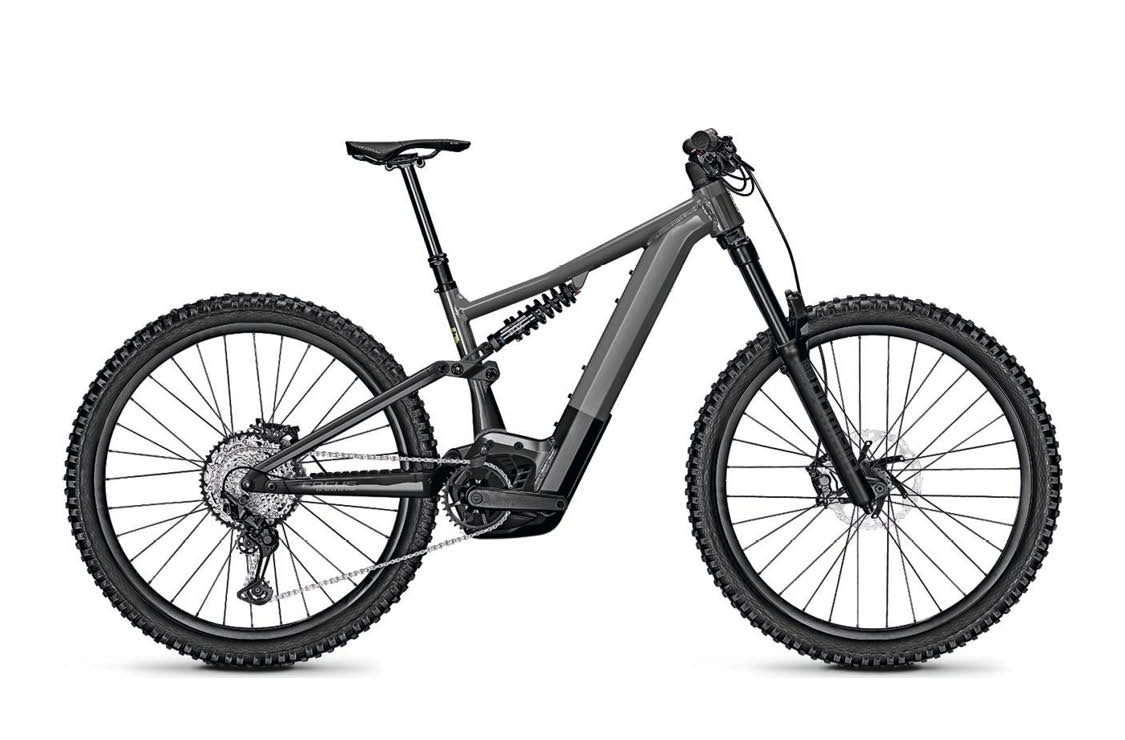

Focus Sam2 6.7 eMTB 2023
Focus Sam2 6.7 eMTB 2023
-
The Focus Sam2 6.7 eMTB is your entry ticket to the the new 2023 Sam2 Enduro / Downhill eMTB range. "Designed for down" Focus have a completely new frame and suspension set up for 2023 to work with the Bosch Smart System and Bosch CX motor. The Sam2 2023 series has the same downhill DNA of the previous model (burley frame, slack head angle 63.5 or 64.5 ,170mm travel, coil shock). and for 2023 Focus has moved the game on with a lower centre of gravity, stiffer frame and a fully active 4-bar linkage for improved traction in small and big hit situations.
-
- Drive System: Bosch Smart System
- Motor: Bosch Performance CX, 85Nm of torque
- Battery: Bosch Lithium-ion 625Wh (powertube)
- Performance: Rock Shox Zeb Fork, Rock Shox Deluxe Coil Select and SRAM Code R 4 Piston
- Brand: Focus
Details
Your entry ticket to the new Sam2 enduro eMTB range. The Focus Sam2 6.7 your entry ticket to the Enduro / Downhill eMTB range for 2023.
"Designed for Down", it also has a completely new frame and suspension setup with fully active 4-bar linkage while retaining the same downhill DNA of the previous model (burley frame, slack head angle, 180/170mm). The Sam2 6.7 runs on Rock Shox Zeb Fork 180mm, Rock Shox Deluxe Coil Select shock 170mm, SRAM Code R 4-piston brakes and SRAM GX Eagle 12-sp gears.
Slack or slacker? For more aggressive trails you can slacken the head angle from 64.5 to 63.5 using the rotatable headset cups.
Bosch Smart System. With the Sam2 6.7 you get the Bosch 625Wh powertube battery as standard. Download the Bosch eBike flow app to unlock customisable rider modes, fitness and performance data, as well as security features. Add the Bosch eBike Alarm and Connect Module to add a integrated 100dB alarm and GPS tracking to your pride and joy.
Ground Up Frame Re-design. To accomodate the new Bosch Smart System Focus rotated the Bosch CX motor to allow the battery to sit lower in the down tube and help keep the weight low down in the bike.
The battery is still removable, however to increase frame stiffness and reduce weight, the opening for battery removal is at the bottom of the downtube, protected by a sturdy skid plate.
Contact us to preorder. See the Sam2 6.8 if you prefer higher spec components. See the Jam2 6.7 if you're not sure whether you need the full 180/170mm travel and enduro set up.
System | Bosch Smart System, 250W mid-drive |
---|---|
Motor | Bosch Performance CX, 85Nm |
Battery |
Bosch PowerTube 625Wh
|
Charger | Bosch 4A (Smart) |
Display | Bosch LED Remote |
Frame |
7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. Gen2, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
---|---|
Sizes | S 39 M 42 L 44 XL 46 |
Colours | Slategrey / Black |
Fork |
Rock Shox ZEB 29 Boost, Charger R, DebonAir, 110x15 mm rake, 44 mm rake |
Travel | 180mm |
Rear Suspension |
Rock Shox Super Deluxe Coil Select, 230/65 mm, hardware: 25,0 x 8.0 mm, no Bushing |
Wheel Size | 29" |
Wheelset |
RODI TRYP30, 30-622 Novatec D041, Novatec D462, |
Tyres | Schwalbe Magic Mary, 2.6 Super Trail Soft, 65-622 / Schwalbe Magic Mary, 2.6 Super Gravity Soft, 65-622 |
Gearing |
SRAM GX Eagle, 12-speed |
Sprocket | SRAM PG-1230 NX Eagle, 12-speed |
Chain |
SRAM NX Eagle, 12-speed
|
Brakes |
SRAM Code R |
Handlebar |
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
|
Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
Saddle |
Proxim W350
|
Seatpost | Post Moderne dropper post PM-214, 34.9 mm |
Weight |
25.4kg |
Carry Capacity | 150kg inc rider |
Geometry | See Focus website |
Lights | No - mounts provided |
---|---|
Lock | No |
Carrier Rack | No - mounts provided |
Mudguards |
No - mounts provided
|
Kickstand | No |
