Orbea Kemen SUV 10 EBike
Orbea Kemen SUV 10 EBike
The Orbea Kemen SUV eBike is a stunning lighter weight trekking ebike that is built to be tough and versatile, to cope with bigger loads on rugged terrain as well as urban streets. It is equipped with robust, top quality components and is powered by the Shimano EP8 motor with 85Nm. It has a high density internal 540Wh battery which offers up to 5 hours riding plus there is an option for an extra 252Wh with a range extender.
The Kemen SUV 10 model comes with high performance equipment such as Fox 34 forks with 100mm travel, Shimano XT Linkglide 11-sp gearing, dropper seatpost and a reinforced rear carry rack for up to 27kg luggage. Turn family utility into mini-adventures and enjoy all types of terrain that get thrown up your way in the process.
- Drive System: Shimano EP8 mid-drive 250Wh
- Motor: Shimano EP8-RS , 85Nm
- Battery: Orbea Internal 540Wh (252Wh extender available)
- Range: Varies. Up to 5 hours.
- Quality: Race Face wheels, Fox 34 forks, Shimano XT 11-speed
- Brand: Orbea
Orbea have taken a different approach to the traditional usually-heavy SUV ebike. Their aim was to build a robust and comfortable SUV-style ebike that was as light and slim as possible, and was also easy to ride without power if necessary. The result is the Orbea Kemen SUV. A bike that is beautiful and clean to look at and still has the chops to be a workhorse and a loaded-up adventurer.
Lightweight touring platform. To create the sleek look, light weight, rideability and robustness needed for the Kemen ebike Orbea designed a brand new frame that can accommodate the top equipment for performance and lighter weight. The Kemen has allterrain geometry and a strong hydroformed aluminium frame with high-polished welds that not only looks beautiful but is extra-strong and comfortable to ride.
Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP8 motor which is not only very strong with 85Nm but is also compact, lightweight and offers the least resistance of any motor when pedalling without power. They achieve their sleek clean lines by routing all cabling through the frame and the frame also houses the large 540Wh high-density battery. If up to 5 hours of riding isn't enough there is also the option to mount a 252Wh range extender.
Ultra-premium components: durable and high performance. The Orbea Kemen 10 model offers higher-quality components with gears from Shimano’s XT series with 11 speeds and linkglide, a Fox 34 Float AWL suspension fork (100 mm travel) and a lighting system from Lezyne with the new Super HB STVZO 1000 headlight. This offers up to 1,000 lumens of light output. In addition, the Kemen 10 models have a dropper suspension seatpost with 100 mm travel and 2.35" knobbly tires.
There is enough clearance in the fork for mud clearance with the mudguards and the rear rack is reinforced and able to carry up to 27kg. Also fully compatible with the rear axles used by follow me or tow along baby carriages.
Turn family utility into mini-adventures and enjoy all types of terrain that get thrown up your way in the process.

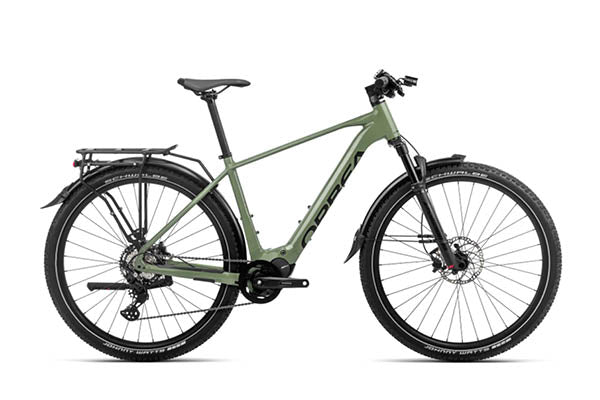

Note. Bike featured below is the Orbea Kemen 30 E-Bike
|System||Shimano EP8 mid-drive 250Wh|
|Motor||Shimano EP8, 85Nm|
Orbea Internal 540Wh
Range extender: 252Wh
|Range||Varies. Up to 5 hours|
|Charger||Orbea Smart Charger (42V-4A)|
Orbea Kemen, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12
Lifetime warranty (if register)
|Sizes||S: 40, M: 45, L: 48, XL: 53
See here for geometry and size guide

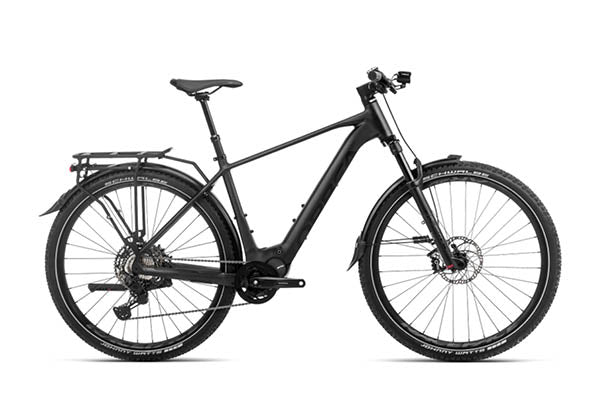

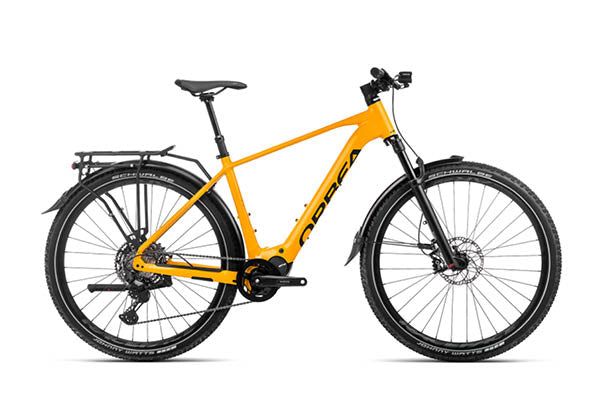

|Colours||Night Black; Mango/ Black Matt; Urban Green/ Black Matt
|Fork||Fox 34 Float AWL 100 RAIL QR15x110|
|Crankset||Shimano Steps EM600|
|Headset||FSA 1-1/2" Integrated Aluminium Cup|
|Handlebar||OC 35mm 20mm Rise 780mm|
|Stem||OC1 35mm interface -6º|
|Shifters||Shimano XT M8130 Link Glide|
|Brakes||Magura MT5 E-STOP Hydraulic Disc Easy Route Connection|
||Shimano CS-LG600 11-50t 11-Speed|
||Shimano XT M8130 Link Glide SGS Shadow Plus|
|Chainguide||Alloy EP8 36t w/chainguard|
||Race Face AR 30c Tubeless Ready|
|Tires||Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape|
||OC Mountail Control MC20, 31.6mm, Dropper|
|Saddle||Selle Royal Vivo 145x269mm|
F: Lezyne Super HB STVZO 1000 with Remote, Low Bean 600 Lumens, High Bean 1000 Lumens
R: Lezyne Super Bright CARRIER STVZO Alert Technology 12Lumen
Orbea Kemen Suv oversize Alloy Rear Carrier, w/Mik HD and Oertlieb QL3.1 system
|Mudguards||CURANA Apollo 70mm|
|Kickstand||Ursus Mooi rear adjustable|
