Orbea Vibe H30 eBike 2025
Orbea Vibe H30 eBike 2025
-
The Orbea Vibe H30 ebike is a stylish lightweight urban ebike currently designed to ride beautifully with and without power, the Vibe range is sleek, nimble, and equipped with top componentry such as a daylight running light, carbon forks, 45C tires, Shimano 8-speed gearing and hydraulic disc brakes. A top commuter ebike.
-
- Drive System: Ebikemotion X35 Plus rear drive, 250W
- Motor: Ebikemotion X35 Plus
- Battery: Ebikemotion 36V/6.9A 248Wh ANT+
- Range: Varies. 70km+ some have reported 150km+
- Comfort: Carbon fork, new Vibe frame, 45C x 700 tires
- Brand: Orbea
Details
Urban style. Less is More. Recommended by Choice. The Orbea Vibe range has been designed to enhance urban life. With the Vibe you have a beautifully designed, beautifully made ebike that is light in weight and subtle power for a sophisticated and fun ride companion.
The Vibe H30 model is the naked crossbar version in the range for those who prefer to keep things clean and simple. It is perfect for those who appreciate quality and want to the freedom to ride wherever they want. It comes with simple 8-sp Shimano gears which and Shimano 2-piston hydraulic disc brakes.
Orbea have put a lot of effort into ensuring the Vibe offers comfort as well as great handling. It has a carbon fork and wide 700 x 45C tires which and the geometry is more upright that your usual road-oriented flatbar.
A fantastic choice for those who love riding and want quality, style and innovation.
Contact us to order or order online. Limited sizes and colours available. Not available to test ride however can be ordered in. Note: Not supplied with kickstand however can be added as an extra if required.
Delivery to regional and interstate locations may attract additional charges depending on delivery address. Discount vouchers not applicable whilst on sale
| System | Ebikemotion rear-drive 250W |
|---|---|
| Motor | Ebikemotion X35 Plus |
| Speed | EN15194 compliant - assistance to 25km/h |
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| BMS | Yes, has battery management system |
| Range | Varies based on usage. 70km++ |
| Display | Opt: Ebikemotion Pulsar One monochrome ANT+ LEV |
| Remote | Ebikemotion iWoc ONE |
| Charger | Ebikemotion X35 |
| Parts | |
|---|---|
| Frame | Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc |
| Sizes | S: 45.5, M: 49, L: 53, XL: 57.5 |

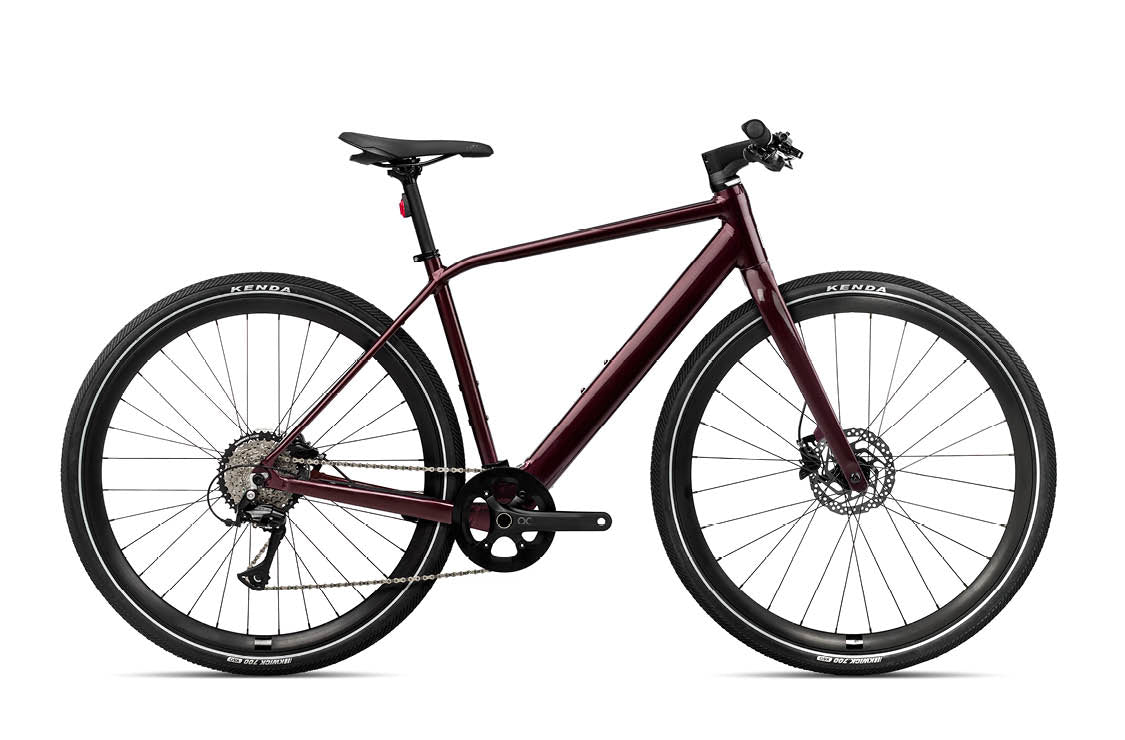

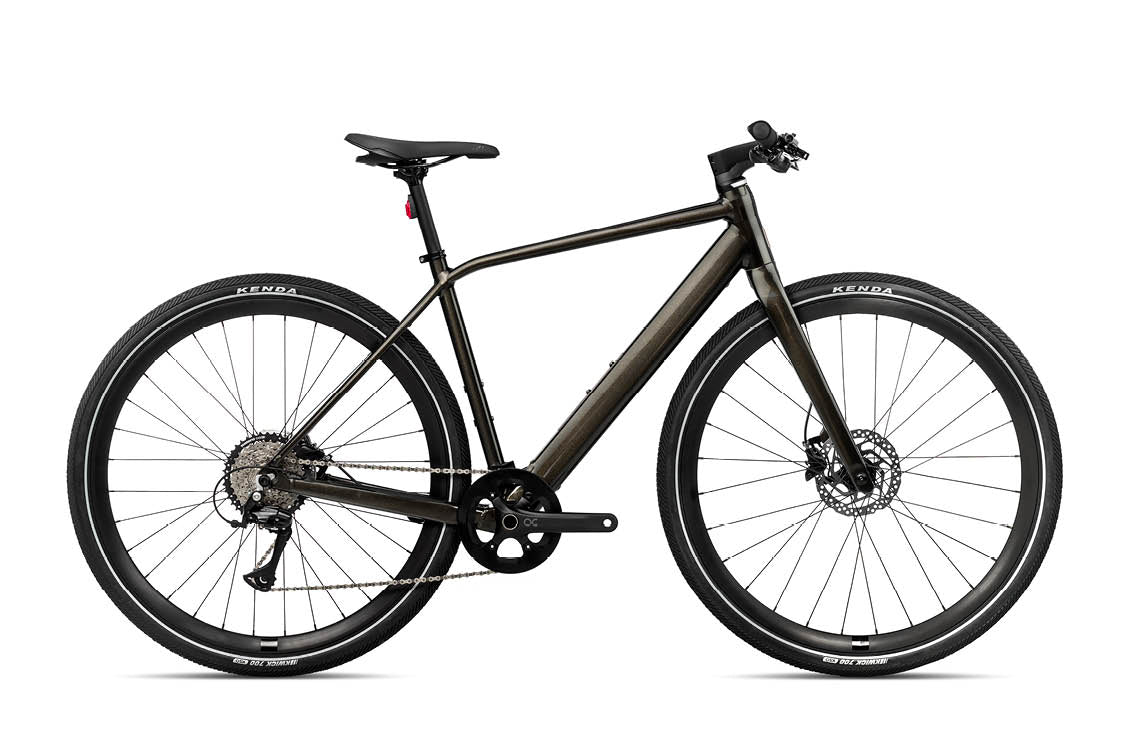

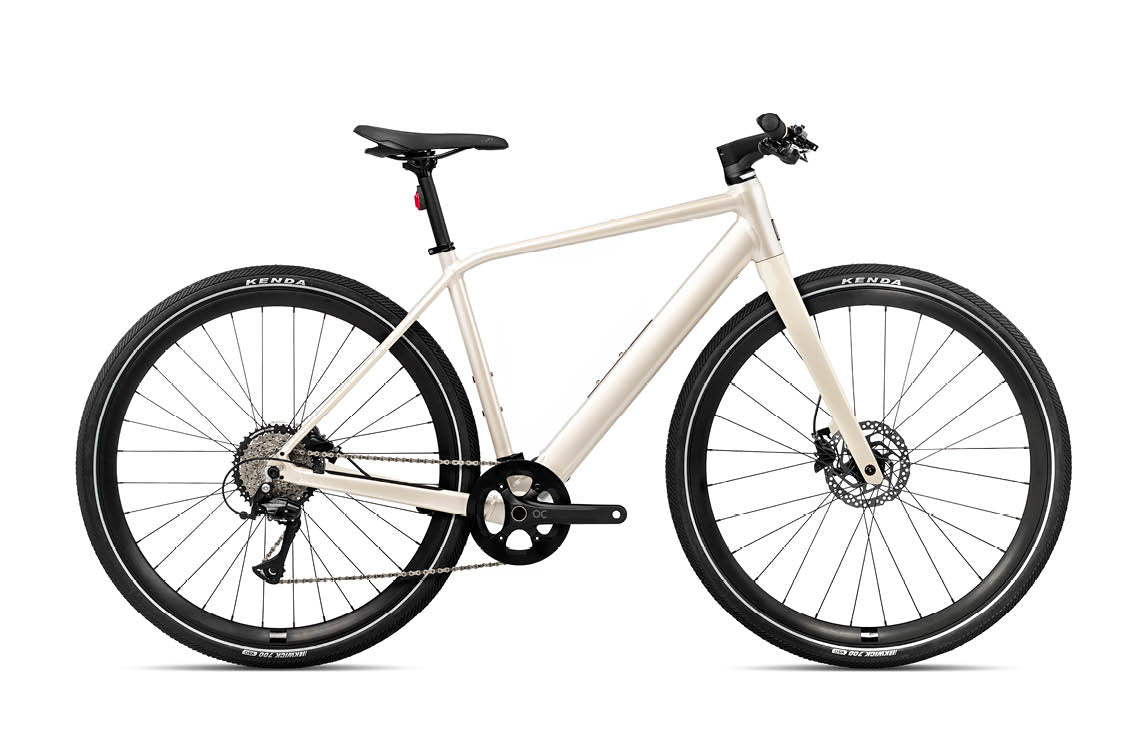

| Colours | Ivory White, Metallic Green, Metallic Burgundy |
| Fork | Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximum tire, flat mount disc mount, Thrue Axle12x100mm |
| Wheel Size | 700C (28") |
| Tyres | Kenda K1052 700x45C Reflective type+puncture protection |
| Crankset |
CR 0.1, Forged alloy, 42t, w/Chainguard |
| Chain | KMC X8 |
| Wheels |
Alloy, Tubeless, 700c, 21c, 32H |
| Shifters |
Shimano SL-M315 |
| Rear Derailleur |
Shimano Acera M3020 |
| Cassette |
Shimano CS-HG400 11-40t 8-Speed |
| Stem |
Alloy forged, -6º, ICR |
| Brakes |
Shimano MT200 Hydraulic Disc |
| Saddle | Selle Royal Lift 1215 URN 278x145mm |
| Pedals | VP-537 Black |
| Seatpost | Alloy 27.2 Offset 0, for integrated light |
| Handlebars | Alloy 31.8mm 12mm Rise 700mm |
| Weight | Approx 15kg |
| Fitted Accessories | |
|---|---|
| Front Position Light | Daylight running light, on head tube, COB Led, On/Off, 60 Lumen, ECE50 |
| Front Light | No |
| Rear Light | Lezyne FENDER STVZO seatpost mount 11 lumens |
| Lock | No |
| Carrier Rack | No |
| Mudguards | No |
| Kickstand | No |
| Bell | Knog OI Classic |
