Orbea Wild M10 eMTB 2023 - Small
Orbea Wild M10 eMTB 2023 - Small
-
The Orbea Wild M10 eMTB is a mid-range model in the exciting new 2023 Wild enduro range. Powered by the responsive Bosch CX motor with Smart System, its modern enduro geometry coupled with lightweight carbon frame delivers maximum performance and maximum fun. Plus it features some of the best electrical integration and detailing yet seen on a full powered EMTB.
-
The Orbea Wild M10 eMTB model is equipped with Fox 38 Float Performance forks, a Fox Float X Performance rear shock and Shimano XT/SLX 12-speed drivetrain. You can fine tune your spec too with the customisation options offered by Orbea MYO. A top shelf eMTB with next level performance.
- See what's available below. Contact us to order or if you want assistance with MYO. See the Wild H10 if you want this spec at a better price with an alloy frame. See our range overview for a comparison of all models.
-
- Drive System: Bosch Performance CX - Smart System
- Motor: Bosch 250W mid-drive, 85Nm
- Battery: Bosch Lithium-ion PowerTube 750Wh
- Range: Up to 110km
- Quality: Fox 38 Float Performance/ Fox Float X suspension 160/160mm, Shimano XT/SLX drivetrain, dropper seatpost
- Brand: Orbea
Details
Light. Fast. Powerful. The 2023 Orbea Wild eMTB range has been described as "an absolute weapon for enduro riders" and it is a range that features next level integration, detailing and performance. Orbea have created a new industry benchmark with this lightweight full power race-ready enduro eMTB.
The Wild M10 eMTB is the mid range carbon model in the range and it offers excellent value for this top performance platform. It is powered by the Bosch CX motor with Smart System and its modern enduro geometry, large 750Wh battery and slimline frame is designed for speed and maximum fun. If you prefer lighter weight there is an option to change to 625Wh if you preorder.
To keep things clean it also has the new Bosch Smart System controller integrated into the top tube of the frame with the new compact Bosch mini remote on the handlebar.
A 29er with a slack 63.5 head angle and e-optimised geometry, The Wild's lightweight carbon frame delivers optimum enduro uphill and downhill performance. The Wild M10 has Fox 38 Float Performance forks and a Fox Float X Performance rear shock with 160/160mm travel and runs on a Shimano XT/SLX 12-speed drivetrain.
This is an eMTB that sets a new benchmark. Drop-dead gorgeous. Light. Fast. Powerful.
Contact us to order or order online. Small frame, cosmic carbon. Delivery interstate and regionally is available and extra charges may apply depending on location. Discount vouchers not applicable in conjunction with sale price.
System | Bosch Smart System, 250W mid-drive |
---|---|
Motor | Bosch Gen 4 Performance CX, 85Nm torque |
Battery |
Bosch Powertube 750Wh Horizontal (Opt: 625Wh) |
Display | BOSCH System Controller and Mini Remote |
Charger | Bosch 4A (Smart) |
Frame | Orbea Wild OMR 2023, Carbon |
---|---|

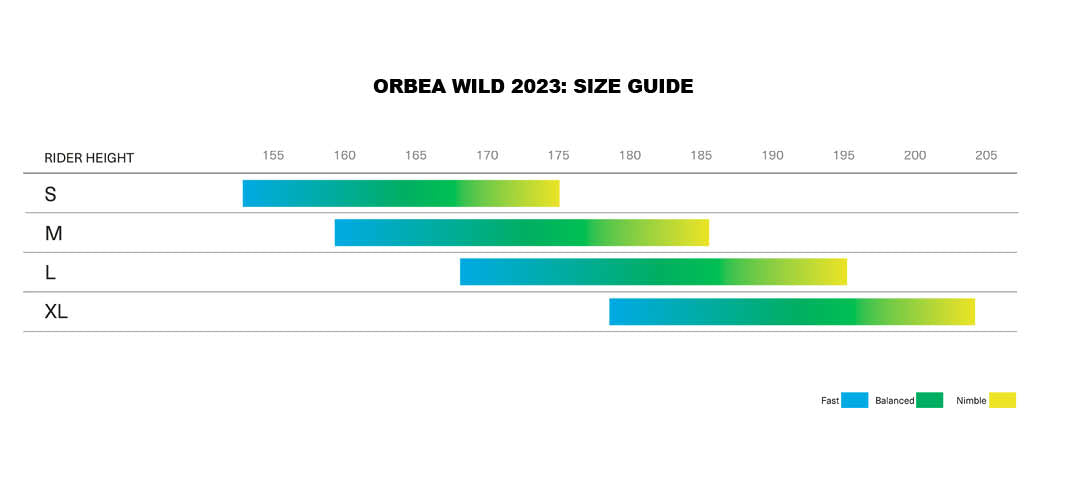

Sizes |
S 41.5cm, M 41.5cm, L 43.5cm, L 46cm
|
Colours | Cosmic Carbon ; Halo Silver/Tanzanite Carbon (or Custom) |
Fork | Fox 38 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized |
Front Travel | 160mm (170mm custom) |
Rear suspension | Fox Float X Performance Trunnion 2-Position Adjust custom tune 205x65mm |
Rear Travel | 160mm |
Wheel Size |
29" Concentric Boost 12x148
|
Wheels | OQUO Mountain Control MC32TEAM eBIKE |
Tyres |
Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR |
Rear derailleur | Shimano XT M8100 SGS Shadow Plus |
Shifters | Shimano SLX M7100 I-Spec EV |
Crank | e*thirteen Plus Alu |
Cassette | Shimano CS-M7100 10-51t 12-Speed |
Chain | Shimano M6100 |
Brakes | Shimano M6120 Hydraulic Disc |
Handlebar | OC Mountain Control MC20 Alu SL, Rise20, Width 800 |
Stem |
OC Mountain Control MC20, 0º |
Saddle | Fizik Aidon 208x145mm manganese rail |
Seatpost | OC Mountain Control MC20, 31.6mm, Dropper |
Warranty | Bosch drive system warranty: 2 years Orbea frame warranty: Lifetime |
MYO | *For custom options and to customise via MYO see Orbea's website here>> |
