Orbea Wild M20 eMTB 2023
Orbea Wild M20 eMTB 2023
-
The Orbea Wild M20 eMTB is the most economical carbon model in the exciting new 2023 Wild enduro range. Powered by the responsive Bosch CX system, its modern enduro geometry coupled with lightweight carbon frame delivers maximum performance and maximum fun. Plus it features some of the best electrical integration and detailing yet seen on a full powered EMTB.
-
The Orbea Wild M20 eMTB model is equipped with 160mm RockShox 35 forks, a 160mm Fox Float DPS Performance rear shock and Shimano Deore/XT 12-speed drivetrain. You can fine tune your spec too with the customisation options offered by Orbea MYO.
-
- Drive System: Bosch Performance CX Smart System
- Motor: Bosch 250W mid-drive, 85Nm
- Battery: Bosch Lithium-ion PowerTube 750Wh
- Quality: Fox 38 Float Performance/ Fox Float X suspension 170/160mm, Shimano XT/SLX drivetrain, dropper seatpost
- Brand: Orbea
Details
Light. Fast. Powerful. Best price carbon model. The 2023 Orbea Wild eMTB range has been described as "an absolute weapon for enduro riders" and its a range that features next level integration, detailing and performance. Orbea have created a new industry benchmark with a sub-21kg full power race-ready enduro eMTB with the signature M-LTD version and the 2023 Wild range overall offers the lightest full-powered e-mountain bikes yet.
The Orbea Wild M20 eMTB with its sleek carbon frame and e-optimised geometry. coupled with the Bosch CX motor and Smart System offers you the option to experience this great technology and design at the best price possible for the carbon versions. It has 160mm travel upfront with the RockShox 35 forks and 160mm at the rear with the Fox Float DPS rear shock for handy up and downhill performance and runs on a combined Shimano Deore / XT 12-speed drivetrain.

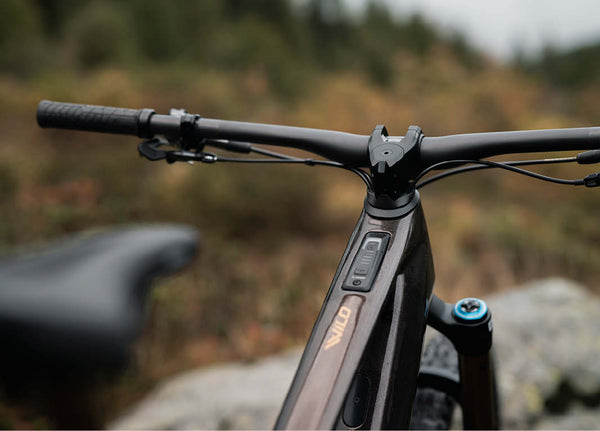

A 750Wh battery built into the frame comes as standard, and there is an option if you MYO for 625Wh if you prefer the lighter weight. It also has the new Bosch Smart System controller integrated into the top tube of the frame and, for extra control on the go, the compact Bosch mini remote on the handlebar.
Contact us to order or for further information on what's available. See the Wild M10 if you prefer Fox suspension. See our video walkthrough below.
| System | Bosch Smart System, 250W mid-drive |
|---|---|
| Motor | Bosch Gen 4 Performance CX, 85Nm torque |
| Battery | Bosch Powertube 750Wh Horizontal (Opt: 625Wh) |
| Range Extender | n.a |
| Range | Up to 110km |
| Display | BOSCH System Controller and Mini Remote |
| Charger | Bosch 4A |
| Frame | Orbea Wild OMR 2023, Carbon |
|---|---|
| Sizes |
|
| Colours | Cosmic Carbon ; Halo Silver/Tanzanite Carbon |
| Fork | RockShox 35 Silver TK Q15x110 Solo Air 160mm |
| Front Travel | 160mm |
| Rear suspension | Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm |
| Rear Travel | 160mm |
| Wheel Size |
|
| Wheels | Race Face AR 30c Tubeless Ready |
| Tyres |
Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR, Maxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR |
| Rear derailleur | Shimano XT M8100 SGS Shadow Plus |
| Crank | e*thirteen Plus Alu |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Brakes | SRAM DB8 Black Hydraulic Disc |
| Handlebar | OC Mountain Control MC30, Rise20, Width 800 |
| Stem |
OC Mountain Control MC20, 0º |
| Saddle | Selle Royal Vivo 145x269mm |
| Seatpost | OC Mountain Control MC20, 31.6mm, Dropper |
| Warranty | Bosch drive system warranty: 2 years Orbea frame warranty: Lifetime |
| MYO | *For custom options and to customise via MYO see Orbea's website here>> |
