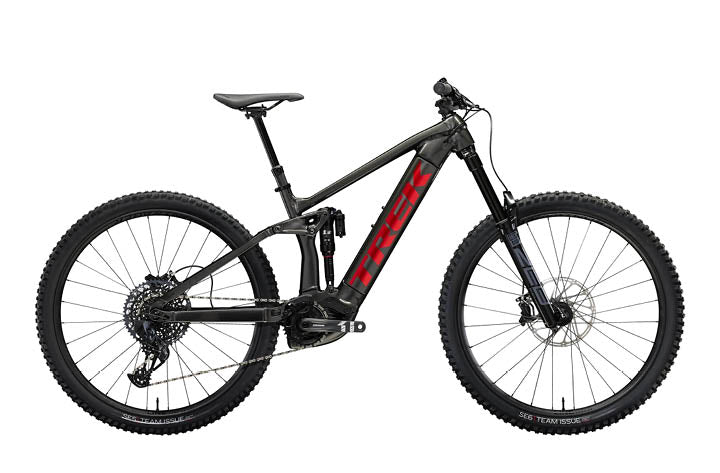

Trek Rail 9 Gen 3 eMTB
Trek Rail 9 Gen 3 eMTB
-
The Trek Rail 9 eMTB is the top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful Bosch drive system will get you back up the mountain faster than you ever thought possible. It comes decked out with a wireless SRAM AXS drivetrain for reliable shifting and an ultra-tidy cockpit.
-
- Drive System: Bosch Smart System
- Motor: Bosch Performance CX, 85Nm of torque
- Battery: Bosch Lithium-ion 625Wh (powertube)
- Quality: Rockshox ZEB suspension, SRAM AXS wireless drivetrain and 4-piston brakes, adjustable geometry, dropper seatpost
- Brand: Trek
Details
Top-of-the-Line Long Travel eMTB with SRAM AXS wireless drivetrain. This is the top alloy model in the Trek Rail range. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful Bosch drive system will get you back up the mountain faster than you ever thought possible. It comes decked out with a wireless SRAM AXS drivetrain for reliable shifting and an ultra-tidy cockpit.
Bosch Smart System with 625Wh battery. The Trek Rail Gen 9 range runs on the Bosch Smart System with 85Nm Bosch CX motor and a 625Wh removable powertube battery. So, a strong intuitive motor and plenty of range for a fun day's riding. Use the Bosch eBike flow app to unlock customisable rider modes, fitness and performance data. You can also add the Bosch eBike Alarm and ConnectModule to add a integrated 100dB alarm and GPS tracking to your pride and joy.
Top tech. Top performance. A burly alloy frame with a super-responsive RockShox ZEB fork with extra-beefy 38 mm stanchions and loads of adjustability, a RockShox Super Deluxe Select+ shock lays the foundation for a top-handling all-mountain machine. Plus, A SRAM GX Eagle drivetrain with an extra-low 52-tooth climbing gear, and Bontrager Line Comp 30 29er wheels with robust Bontrager SE5 Team Issue tyres that come completely tubeless-ready, including sealant.
Contact us to order or order online for local delivery or instore collection. See the Trek Rail 7 if you want a more economical option with Shimano 12-speed shifting.
| System | Bosch Smart System, 250W mid-drive |
|---|---|
| Motor | Bosch Performance CX, 85Nm |
| Battery |
Bosch PowerTube 625Wh
|
| Charger | Bosch 4A |
| Display |

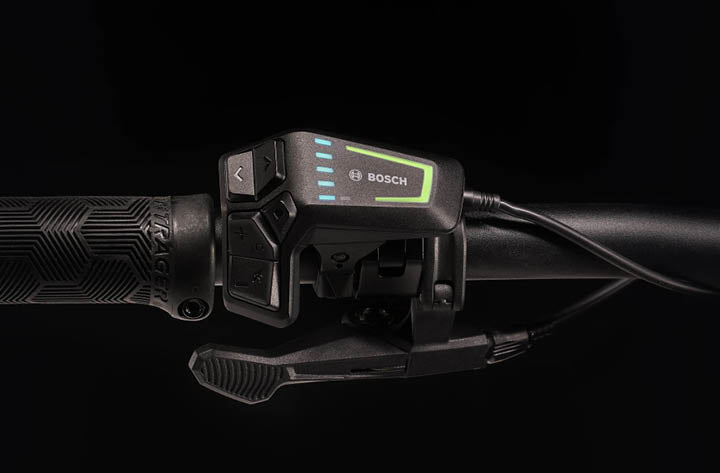

Bosch Intuvia 100, smart system Bosch LED Remote |

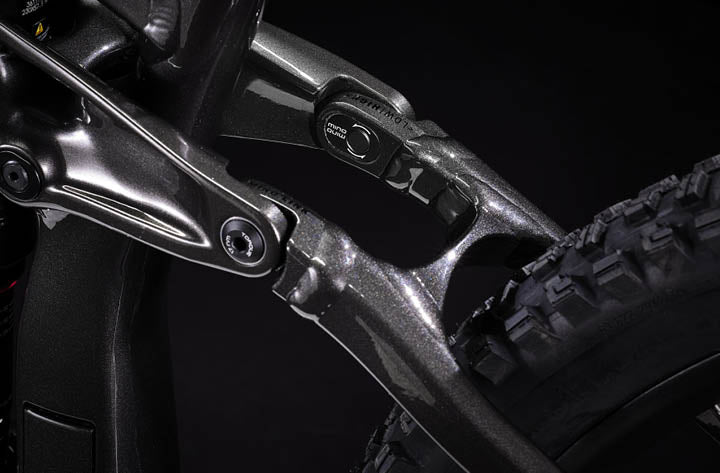

| Frame | Alpha Platinum Aluminium, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel |
|---|---|
| Sizes | S 41 (SRH 155-165cm) M 42 (SRH 165-176cm L 45 (SRH 176-188cm) XL 50 (SRH 188cm-195cm) |
| Colours | Gloss Dnister Black |
| Fork | RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth |
| Travel | 160mm |
| Rear Suspension | RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm |
| Wheel Size | 29" |

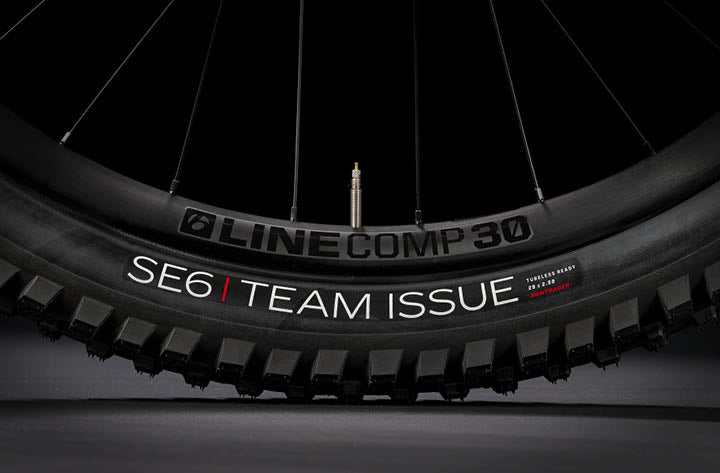

| Wheelset | Bontrager Line Comp 30, Tubeless Ready |
| Tyres | Bontrager SE5/6 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 29x2.50" |
| Gearing |

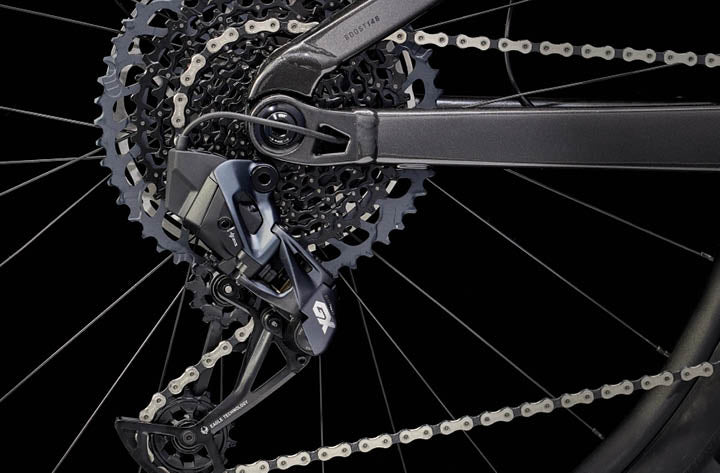

SRAM GX Eagle AXS, 12 speed |
| Rear Derailleur |
SRAM GX Eagle AXS |
| Cassette | SRAM Eagle XG-1275, 10-52, 12-speed |
| Chain | SRAM GX Eagle, 12-speed |
| Brakes | SRAM Code R 4-piston hydraulic disc |
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Stem |
Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Saddle |
Bontrager Arvada, hollow chromoly rails, 138 mm width
|
| Seatpost | Bontrager Line Elite Dropper |
| Weight |
23.6kg inc battery |
| Carry Capacity | 136kg inc rider and cargo |
| Lights | No |
|---|---|
| Lock | No |
| Carrier Rack | No |
| Mudguards |
No
|
| Kickstand | No |
