| Rider Height (cm) | Bike Frame (inch) | Bike Size |
|---|---|---|
| 170 - 178 | 29 | One Size |

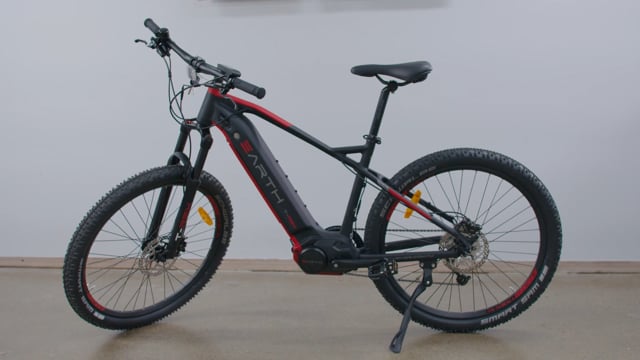

Earth T-Rex 29Sp eMTB
For going places. The Earth T-Rex electric drive platform built for power and reliability. The strong 100Nm motor packs a punch. It has been paired with a large 600Wh battery and the 48V system overall caters well to Australia's climate if you like riding on high power. The battery is neatly integrated into the frame to create a handsome, streamlined look and there is also the option to easily add a second 500Wh battery if you want extra range.
The ebike itself is equipped for comfortable riding with plush saddle and velo grips, and 100mm travel up front which is handy for exploring rougher terrain. It has Shimano 9-speed gearing and tektro hydraulic disc brakes which offer heaps of performance when out and about.
The frame is slightly bigger than the 650B version and, with the 29er model, Earth have gone the extra mile on tires. It comes equipped with the 2.35" knobblies which have extra wall protection and handle particularly well in loose offroad.
With its incredible power and battery the Earth T-Rex 29Sp eMTB is unbeatable value and pure fun each ride.
Order online or contact us to order. Also available in a smaller 650B version or a fully equipped commuter version.
Discount vouchers not applicable whilst on sale. Delivery to regional and interstate locations may attract additional charges depending on delivery address.
| System |
Earth
|
|---|---|
| Motor |
EARTH ATM 100Nm Mid-Drive Limited to 250W
|
| Speed |
EN15194 compliant - assistance to 25km/h
|
| Battery |
PANASONIC Li-Ion Battery 48V 600Wh
|
| BMS |
Yes, has battery management system
|
| Range | Up to 100km depending on rider Optional: PRO Pack Extra Battery 48V10.4A with Mount |
| Display |
Central Colour Multi-Function Display
|
| Frame |
Aluminum 6061 Alloy 29”*510MM
|
|---|---|
| Sizes |
One size
|
| Fork |
100cm Travel Hydraulic Suspension with Lockout
|
| Wheels | 29" rims |
| Tires |
2.35" Knobblies
|
| Gearing |
Shimano 9-Speed Acera
|
| Cassette |
Shimano Acera 9 Speed 11-32T
|
| Brakes |
Tektro Hydraulic Brakes front and rear
|
| Saddle |
Selle Royal RIO plush saddle
|
| Pedals |
MTB pedals
|
| Weight | Approx 25kg incl battery |
| Warranty | Frame: 3 years Motor / Battery: 1 year (2 years if you register your bike) |
| *Note | Specifications are subject to change without notice |
| Lights |
No
|
|---|---|
| Chainguard | No |
| Carrier Rack |
No - mounts provided
|
| Mudguards | No |
| Kickstand |
Yes
|
