| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 162 - 178 | 45.2 | M |
| 170 - 185 | 47.5 | L |
| 175 - 191 | 50 | XL |
| 185 - 201 | 42.5 | XXL |
Amflow PL Carbon 800Wh EMTB - Preorder

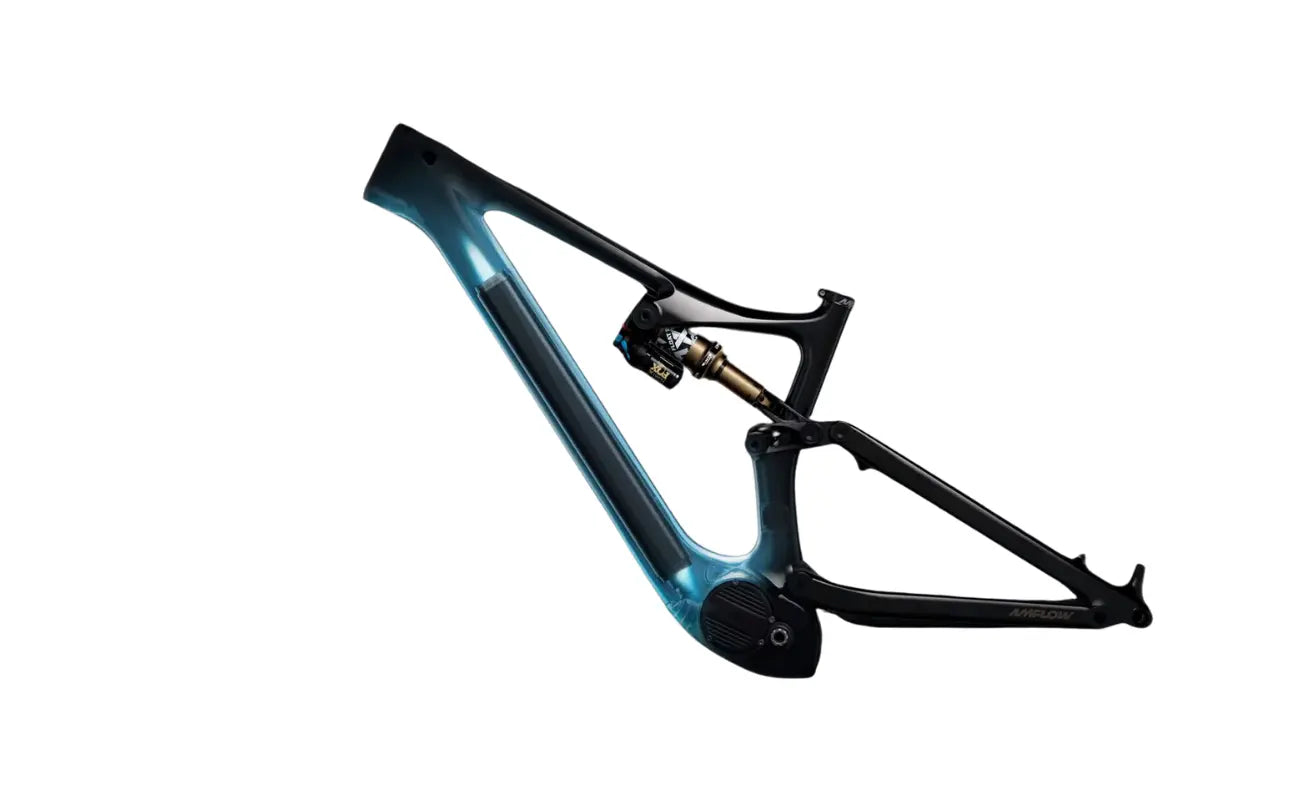

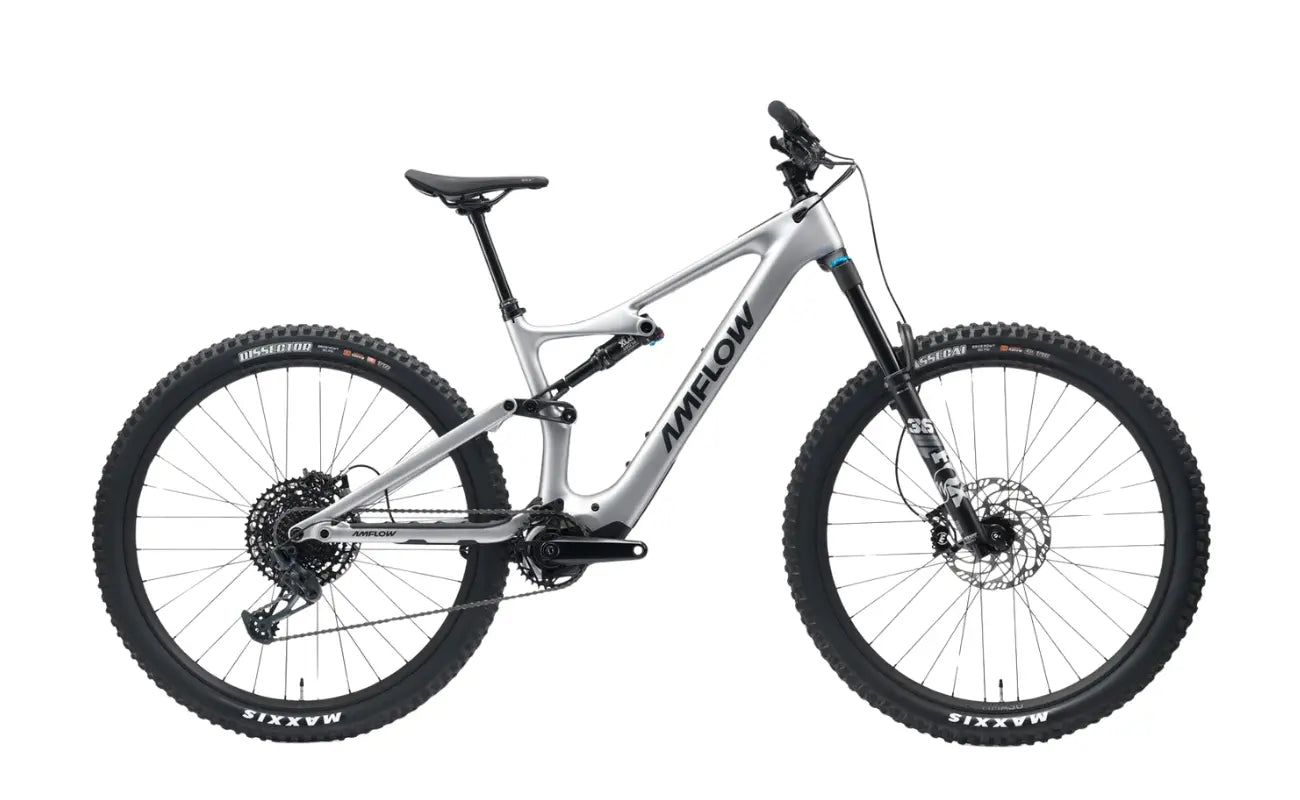

Groundbreaking Lightweight Full Power EMTB. The 160/150mm dual suspension Amflow range of electric mountain bikes were first released in 2025, setting a new benchmark for power and weight in modern electric mountain bikes. The Amflow PL Carbon eMTB is the most affordable in the carbon range. Built around a lightweight carbon frame the Amflow PL Carbon is equipped with Fox 36 Performance suspension, SRAM GX Eagle drivetrain and alloy wheels and offers a confident, responsive ride on varied terrain.
DJI's Avinox Drive System. Strong Performance, Seamless Assistance. Designed and manufactured by DJI, the Avinox Drive System is fully integrated into the Amflow PL, bringing the advanced hardware and software expertise that has made DJI a leader in drones and camera stabilization technology to eMTBs. At the heart of the system is a quiet, smooth motor that provides 105Nm torque and up to 1,000W peak power. Equipped with multiple precision sensors and intelligent DJI algorithms, the Avinox Drive Unit provides powerful, smooth pedal assistance, and with the 800Wh battery and Avinox fast charger, you have plenty of options for mountain biking across all terrains.

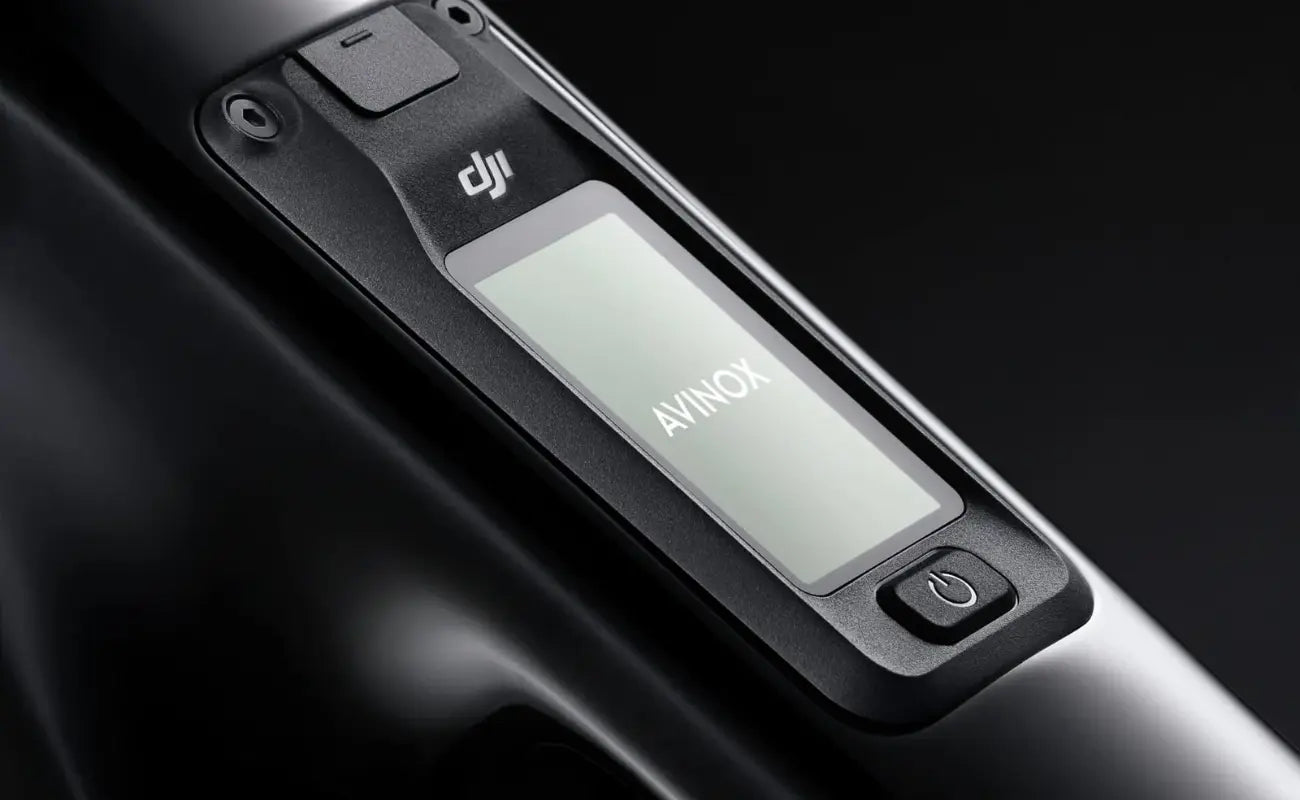

Five Riding Modes, Full Connectivity withBuilt-In Touchscreen Display. The Amflow eMTBs come with a large touchscreen display conveniently built into the top of the top tube. This displays your ride data and range and allows you to easily change screens. Wireless controllers on your handlebars allow you to change ride modes and access other features such as walk assist, auto hold and hill start assist. There are five riding modes and in addition to standard Eco, Trail, and Turbo modes, the DJI Avinox Drive System includes an intelligent Auto mode that adjusts pedal assistance in real time based on terrain and rider position.

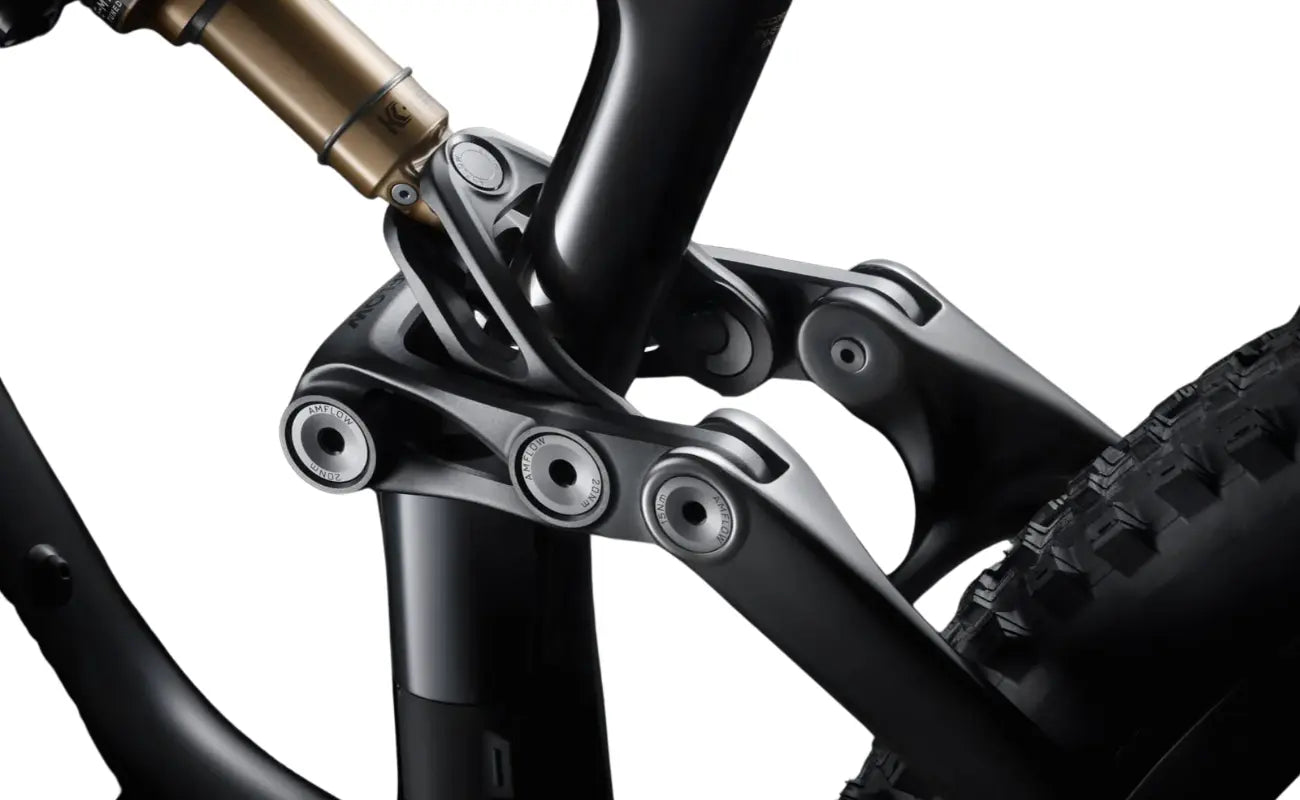

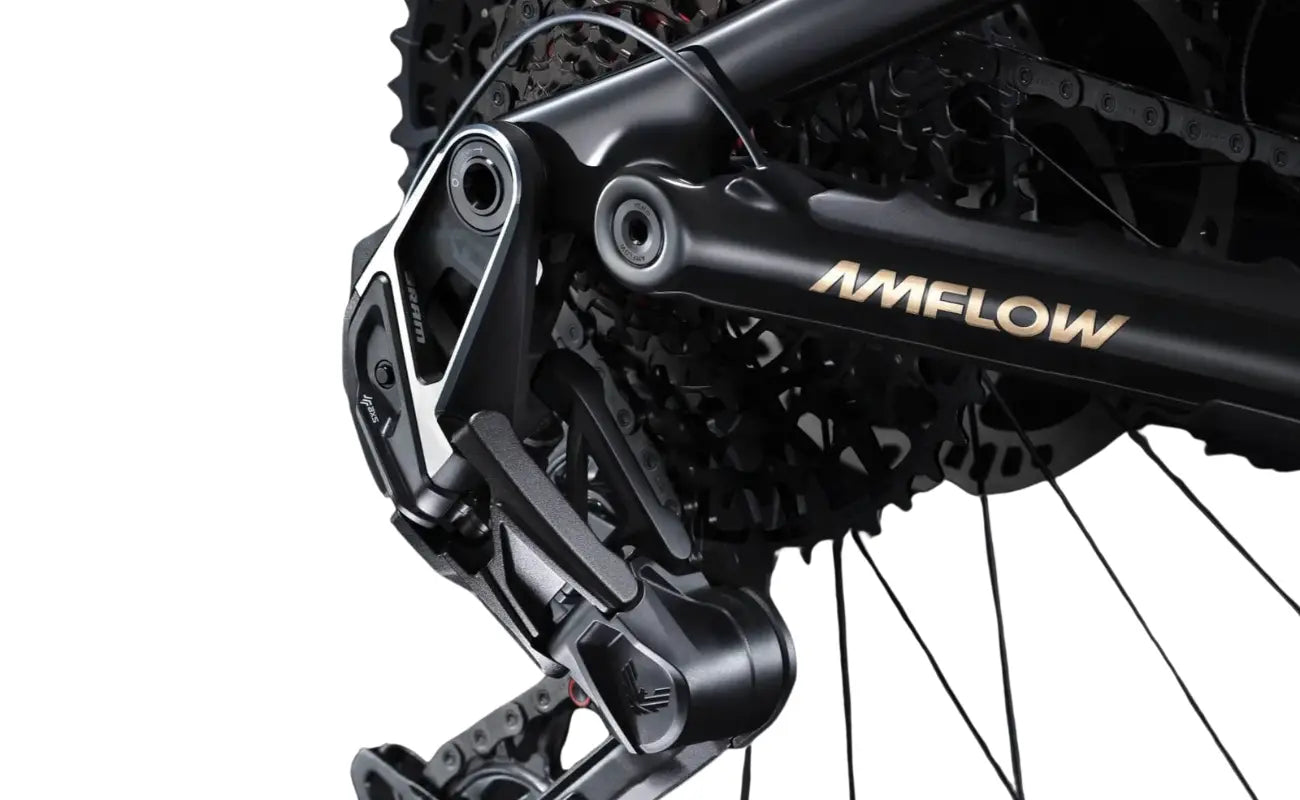

Top Running Gear: FOX 36 Suspension, SRAM Transmission Drivetrain. The Amflow PL Carbon 800Wh eMTB is equipped with a durable, trail-focused component package designed to complement its modern geometry. Up front is the 150mm Fox 36 Performance fork with GRIP damper, paired with a FOX Float Performance rear shock. Shifting is handled by the dependable SRAM Eagle GX Transmission drivetrain with a 10–50T cassette and single-click shifter, while Magura MT5 four-piston hydraulic disc brakes with 203mm rotors front and rear provide strong, consistent stopping power. Also able to be converted into a mullet set up (29" / 27.5") with the flip chip.
Secure Locking System. The Avinox app offers anti-theft features, including password protection and abnormal movement alerts. If the bike is moved, an alarm sounds and a push notification is sent to the app, allowing real-time tracking of location and status. Riders can also use the Phone Key feature to automatically unlock the bike when nearby for added convenience and security.
Contact us to preorder. New stock arriving in approx 2-3 mths. See the Amflow PL Carbon Pro 800Wh EMTB if you want a higher spec, lighter version.
| Drive system | DJI Avinox |
|---|---|
| Motor | Avinox M1: 105Nm |
| Battery | Avinox Integrated Battery: 800Wh |
| Charge time | Up to 5 hours from flat |
| Display |
Avinox Screen: 2-inch OLED Control Display |
| Charger |
Avinox Fast Charger: 12A/508W |
Groundbreaking Lightweight Full Power EMTB. The 160/150mm dual suspension Amflow range of electric mountain bikes were first released in 2025, setting a new benchmark for power and weight in modern electric mountain bikes. The Amflow PL Carbon eMTB is the most affordable in the carbon range. Built around a lightweight carbon frame the Amflow PL Carbon is equipped with Fox 36 Performance suspension, SRAM GX Eagle drivetrain and alloy wheels and offers a confident, responsive ride on varied terrain.
DJI's Avinox Drive System. Strong Performance, Seamless Assistance. Designed and manufactured by DJI, the Avinox Drive System is fully integrated into the Amflow PL, bringing the advanced hardware and software expertise that has made DJI a leader in drones and camera stabilization technology to eMTBs. At the heart of the system is a quiet, smooth motor that provides 105Nm torque and up to 1,000W peak power. Equipped with multiple precision sensors and intelligent DJI algorithms, the Avinox Drive Unit provides powerful, smooth pedal assistance, and with the 800Wh battery and Avinox fast charger, you have plenty of options for mountain biking across all terrains.
Five Riding Modes, Full Connectivity withBuilt-In Touchscreen Display. The Amflow eMTBs come with a large touchscreen display conveniently built into the top of the top tube. This displays your ride data and range and allows you to easily change screens. Wireless controllers on your handlebars allow you to change ride modes and access other features such as walk assist, auto hold and hill start assist. There are five riding modes and in addition to standard Eco, Trail, and Turbo modes, the DJI Avinox Drive System includes an intelligent Auto mode that adjusts pedal assistance in real time based on terrain and rider position.
Top Running Gear: FOX 36 Suspension, SRAM Transmission Drivetrain. The Amflow PL Carbon 800Wh eMTB is equipped with a durable, trail-focused component package designed to complement its modern geometry. Up front is the 150mm Fox 36 Performance fork with GRIP damper, paired with a FOX Float Performance rear shock. Shifting is handled by the dependable SRAM Eagle GX Transmission drivetrain with a 10–50T cassette and single-click shifter, while Magura MT5 four-piston hydraulic disc brakes with 203mm rotors front and rear provide strong, consistent stopping power. Also able to be converted into a mullet set up (29" / 27.5") with the flip chip.
Secure Locking System. The Avinox app offers anti-theft features, including password protection and abnormal movement alerts. If the bike is moved, an alarm sounds and a push notification is sent to the app, allowing real-time tracking of location and status. Riders can also use the Phone Key feature to automatically unlock the bike when nearby for added convenience and security.
Contact us to preorder. New stock arriving in approx 2-3 mths. See the Amflow PL Carbon Pro 800Wh EMTB if you want a higher spec, lighter version.
| Drive system | DJI Avinox |
|---|---|
| Motor | Avinox M1: 105Nm |
| Battery | Avinox Integrated Battery: 800Wh |
| Charge time | Up to 5 hours from flat |
| Display |
Avinox Screen: 2-inch OLED Control Display |
| Charger |
Avinox Fast Charger: 12A/508W |
