Trek Fuel EXe 5 eMTB
Trek Fuel EXe 5 eMTB
-

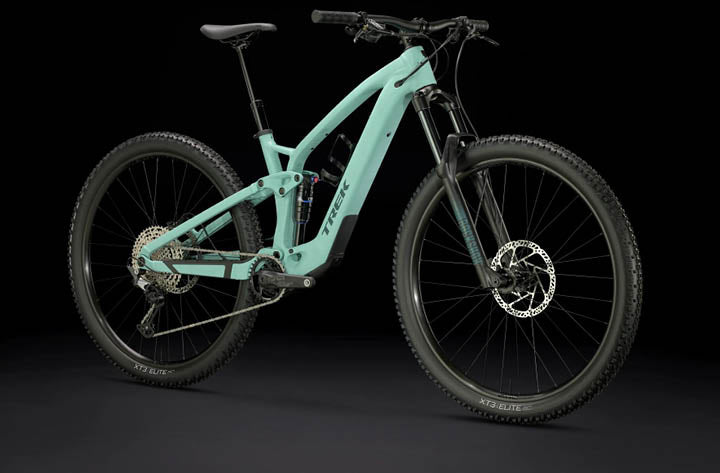

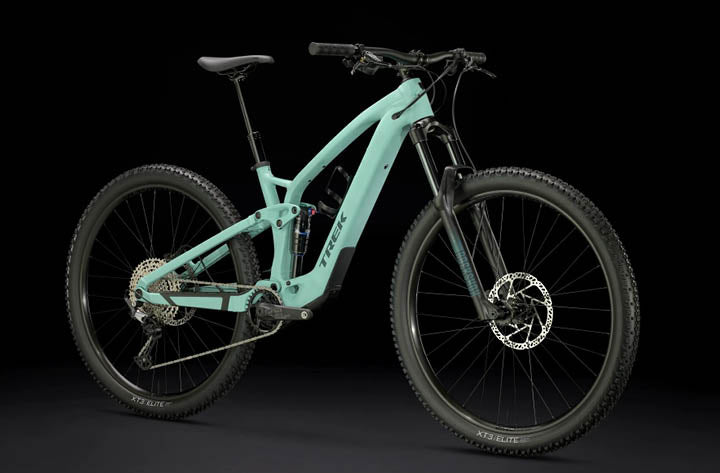

The Trek Fuel EXe 5 eMTB is the most economical model in Trek's highly regarded Fuel EXe eMTB range and features their new alloy frame. With the almost-silent and very discreet TQ motor the Fuel EXe offers a stealthy option for mountain bikers looking for just a bit more oomph on their climbs, and who want to retain the natural mountain bike ride feeling. Its 150/140mm Rockshox dual suspension platform and adjustable geometry offers a balanced, capable bike and a fun riding experience.
-
- Drive System: TQ mid-drive 250Wh
- Motor: TQ-HPR50, 50Nm
- Battery: TQ 360Wh
- Quality: Alloy frame, SRAM GX AXS T-Type wireless gears, SRAM DB8 hydraulics, 150mm/140mm Fox suspension front and rear, Bontrager dropper seatpost
- Brand: Trek
Details
Stealthy, lightweight, fun trail eMTB with wireless transmission. The Trek Fuel EXe 5 eMTB is the most economical model in Trek's highly regarded Fuel EXe eMTB range. It features their new alloy frame and is kitted out with Shimano Deore 12-speed gearing and Tektro 203mm hydraulic brakes. It's 150/140mm Rockshox dual suspension platform and adjustable geometry offers a balanced, capable bike and a fun riding experience for those looking to conquer bigger trails and longer days.

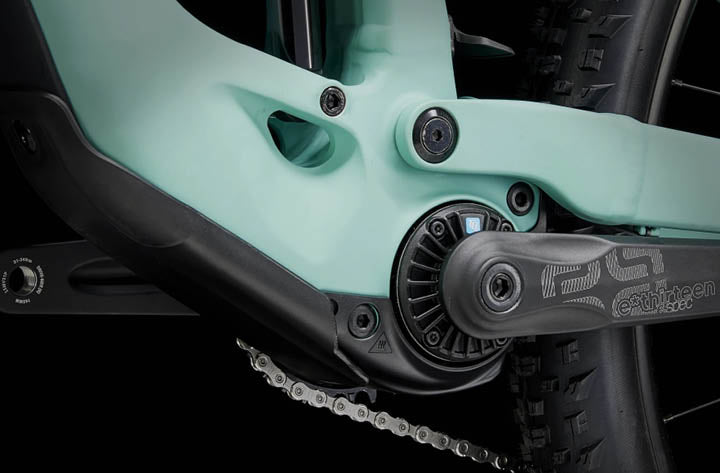

Powered by the almost-silent TQ motor. Powering the Trek Fuel EXe is the extremely compact TQ motor which is considered one of the (if not the) quietest motor on the market. It has 50Nm of torque and a peak power output of 300W which, for traditional mountain bikers, is very welcome on long days and big terrain. Bluetooth and ANT+ capability allows the TQ system to pair with your GPS head unit and mobile phone. Further functions can be unlocked via the Trek Central app, which offers navigation and integration with third party apps.

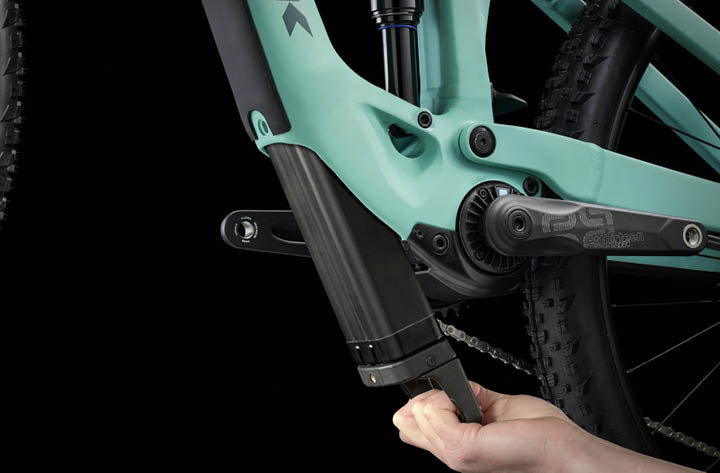

Removable 360Wh battery. The Fuel EXe’s battery can be easily removed from the frame so can be charged on and off the bike. Trek claims you can fully charge the battery in just two hours with a fast charger and rider reviews suggest to expect three hours of riding time per charge if using mixed modes.
A 150/140mm 29er with adjustable geometry. The bike has 29er wheels front and rear, 140mm rear travel paired to 150mm forks, a 65º head angle, and 77º effective seat angle (in Low position; the Mino link flip-chip lets you tweak it by 0.5º steeper in High). It comes with size-specific dropper posts (small: 120mm, medium: 150mm and large: 170mm) and all sizes come with 165mm cranks.
Contact us to order or order online for local delivery or instore collection. Available in two colours. See the Fuel EXe 8 GX AXS version if you want Fox suspension and the new wireless SRAM GX Eagle AXS Transmission (T-Type) drivetrain.
System | TQ mid-drive 250Wh |
---|---|
Motor | TQ-HPR50, 50Nm |
Battery | TQ 360Wh |

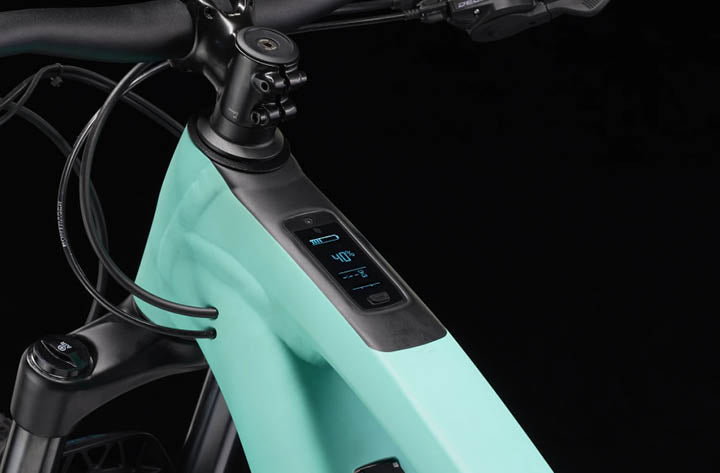

Display | TQ LED display with Bluetooth & ANT+ connectivity |
Charger | TQ 4A charger |

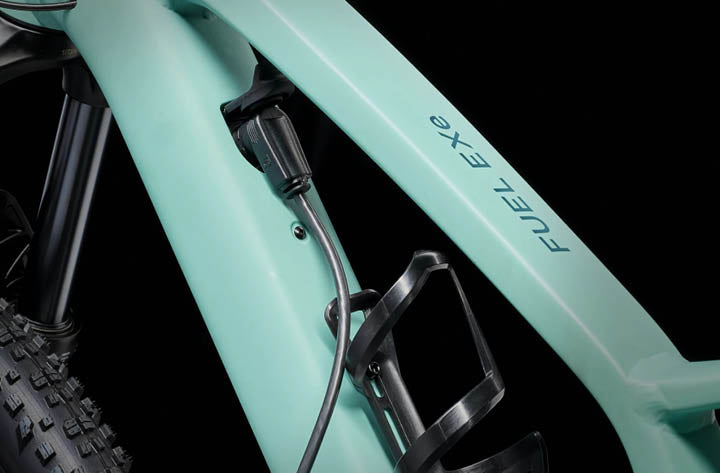

Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube |
---|---|
Sizes | S: 38 (SRH 155-165cm) M: 41 (SRH 165-176cm) L: 43.5 (SRH 177-188cm) XL: 47 (SRH 188cm-195cm) |

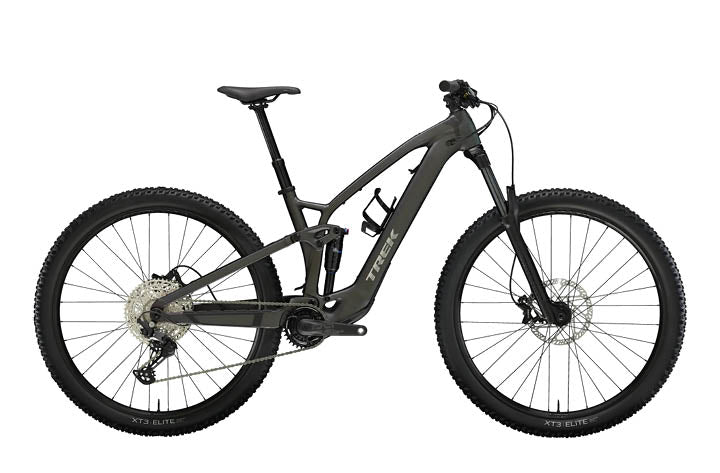

Colours | Matte Blue Sage; Matte Black |
Shock |
X-Fusion Pro 2, 2-position damper, 205 mm x60 mm |
Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |
Wheel Size | 29" |
Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |

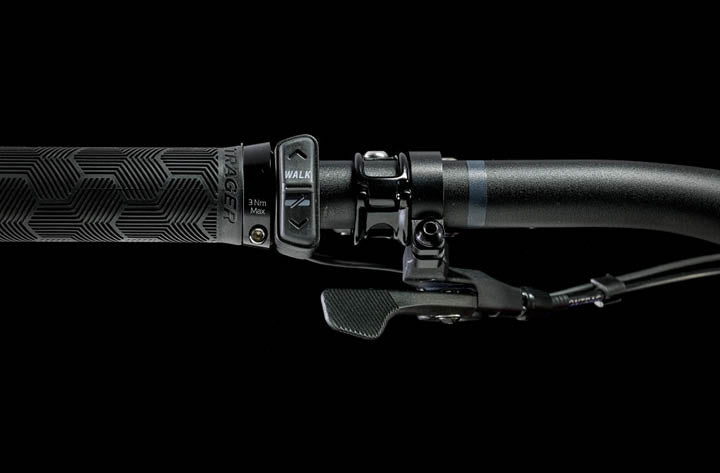

Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |
Stem | Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
Shifters | Shimano Deore M6100, 12-speed |
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
Rear Derailleur |
Shimano Deore M6100, long cage |
Chain |
Shimano Deore M6100, 12-speed |
Chainring | E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
Cranks | E*thirteen E*spec Plus, 165 mm length |

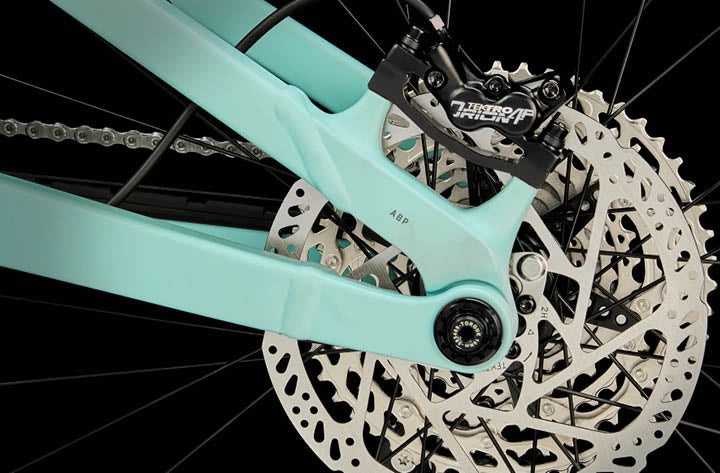

Brakes | Tektro HD-M745 hydraulic disc |
Brake Rotors | Tektro, 6-bolt, 203 mm |
Rims |
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
Tires |
Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
|
Seatpost |
S/M/L: TranzX JD-YSI-22PLQ Dropper, 100/150/170mm travel, internal routing, 34.9 mm, 346/454/497 mm length |
Saddle | Bontrager Arvada, steel rails, 138 mm width |
Pedals | N.A |
Weight | 20.8kg |
Weight Limit | 136kg incl rider and cargo |
Tools | No |
---|---|
Lights | No |
Lock | No |
Carrier Rack | No |
Mudguards | No |
Kickstand | No |
