| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 155 - 165 | 40.5 | XS |
| 166 - 173 | 43.8 | S |
| 174 - 179 | 47.1 | M |
| 180 - 185 | 50.4 | L |
| 186 - 191 | 53.7 | XL |
| 192 - 207 | 57 | XXL |
In Stock
0% FINANCE AVAILABLE

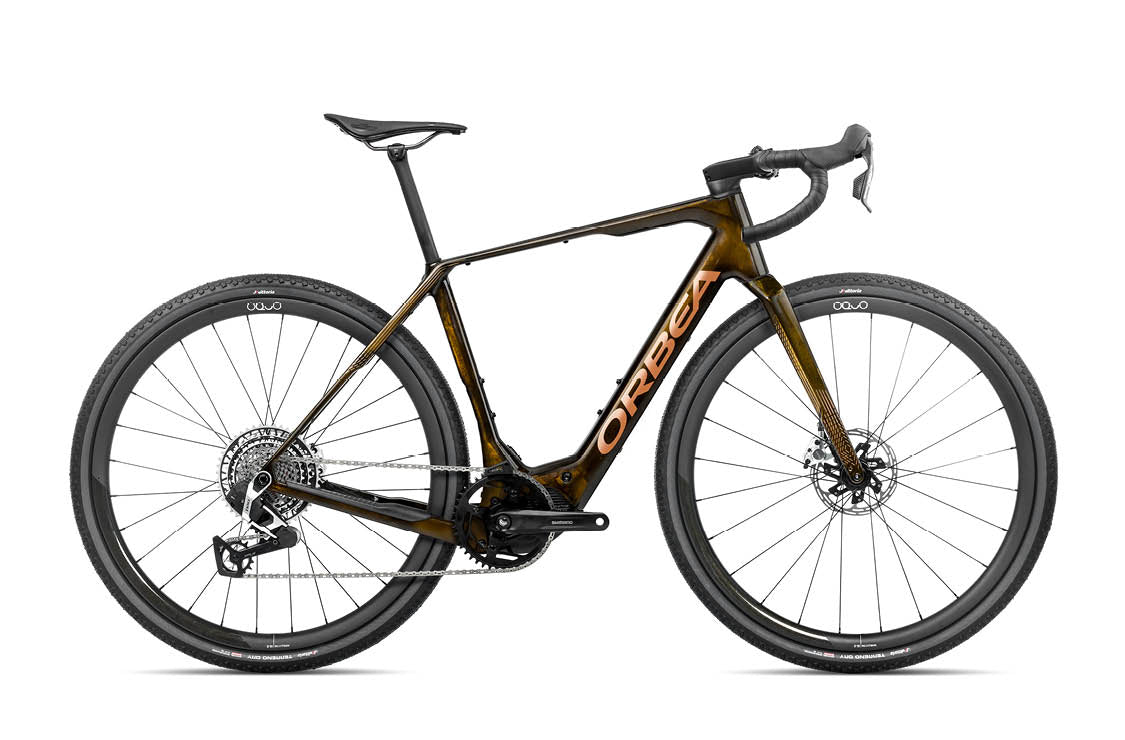

Orbea Denna M11E Carbon Gravel E-Bike - Custom Order
Full Specification
Orbea Denna M11E Carbon Gravel E-Bike - Custom Order
Bike Overview
Top-of-the-range, lightweight, race ready. For Sram lovers. The Orbea Denna ebike is a cutting-edge gravel e-bike and the Denna M11E is the top-of-the range race-ready model, featuring the Sram Red AXS 13-speed groupset and Oquo Road Performance RP45TEAM carbon wheelset. With the powerful Shimano EP801 motor, modern geometry, and huge 50c tire clearance, the Denna M11E is built for top performance.
Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is an optional 210Wh range extender.
Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.
Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M10i if you prefer Shimano Dura Ace Di2 gears.
EBike Technology
| System | Shimano |
|---|---|
| Motor |
Shimano EP801 |
| Battery |
Orbea Internal 420Wh Opt: Range Extender 210Wh |
| Display |
n.a Opt: Shimano EN600 Cycle Computer |
| Remote |
EN600-L |
| Charger |
Orbea 2.Generation eBike Smart charger 42V/2-4A |
Bike Specification
| Frame |
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
|---|---|
| Sizes | XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7 |
| Colours |
Nickel Matt - Carbon Raw Gloss; Escape Green Gloss - Foggy Matt; MYO |
| Fork |
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Rear Derailleur |
Sram Red XPLR AXS 13s |
| Shifters |
Sram Red AXS |
| Cassette |
Sram XG-1290 10-46t 13-Speed |
| Crank |
Shimano Steps EM600 |
| Chain |
Sram Red |
| Chainring | Alloy EP8 42t |
| Chain Guide | Orbea eBike chainguide |
| Handlebar |
Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Stem |
OC Road Performance RP10, -8º |
| Brakes |
Sram Red AXS Hydraulic disc |
| Seatpost |
OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle |
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| Wheels |
Oquo Road Control RC25TEAM |
| Tyres |
Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Pedals | n.a |
| Weight |
Approx 14kg tbc |
Fitted Accessories
| Lights | No |
|---|---|
| Lock | No |
| Carrier Rack | No |
| Mudguards | Opt: Front/rear Apollo Orbit Mudguards 55mm NEG |
| Kickstand | No |
Top-of-the-range, lightweight, race ready. For Sram lovers. The Orbea Denna ebike is a cutting-edge gravel e-bike and the Denna M11E is the top-of-the range race-ready model, featuring the Sram Red AXS 13-speed groupset and Oquo Road Performance RP45TEAM carbon wheelset. With the powerful Shimano EP801 motor, modern geometry, and huge 50c tire clearance, the Denna M11E is built for top performance.
Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is an optional 210Wh range extender.
Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.
Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M10i if you prefer Shimano Dura Ace Di2 gears.
| System | Shimano |
|---|---|
| Motor |
Shimano EP801 |
| Battery |
Orbea Internal 420Wh Opt: Range Extender 210Wh |
| Display |
n.a Opt: Shimano EN600 Cycle Computer |
| Remote |
EN600-L |
| Charger |
Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame |
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing |
|---|---|
| Sizes | XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7 |
| Colours |
Nickel Matt - Carbon Raw Gloss; Escape Green Gloss - Foggy Matt; MYO |
| Fork |
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1 |
| Rear Derailleur |
Sram Red XPLR AXS 13s |
| Shifters |
Sram Red AXS |
| Cassette |
Sram XG-1290 10-46t 13-Speed |
| Crank |
Shimano Steps EM600 |
| Chain |
Sram Red |
| Chainring | Alloy EP8 42t |
| Chain Guide | Orbea eBike chainguide |
| Handlebar |
Easton EC90 AX Carbon, flare 16º, Di2 internal routing |
| Handlebar Tape | Orbea Anti-Slippery/Shock Proof |
| Stem |
OC Road Performance RP10, -8º |
| Brakes |
Sram Red AXS Hydraulic disc |
| Seatpost |
OC Performance XP10 Carbon, 27.2mm, Setback 0 |
| Saddle |
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| Wheels |
Oquo Road Control RC25TEAM |
| Tyres |
Vittoria Terreno Dry Gravel G2.0 TLR 700x45c |
| Pedals | n.a |
| Weight |
Approx 14kg tbc |
| Lights | No |
|---|---|
| Lock | No |
| Carrier Rack | No |
| Mudguards | Opt: Front/rear Apollo Orbit Mudguards 55mm NEG |
| Kickstand | No |
N/A
N/A
In Stock
0% FINANCE AVAILABLE
Orbea Denna M11E Carbon Gravel E-Bike - Custom Order
Regular price
$17,499
$17,499
Sale price
Regular price
Unit price
per
See full specification
Size Guide
Ask me anything about this bike
Call 07 2102 9775 or Submit Request
Our Quick Review
"A cutting-edge ultra-light gravel ebike- the top-of-the range race-ready model, with SRAM Red AXS 13-sp groupset and Oquo Road Performance carbon wheelset. Custom order"
Watch Video Review
Orbea Denna M11E Carbon Gravel E-Bike - Custom Order
