| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 150 - 170 | 40.5 | S |
| 160 - 180 | 41.5 | M |
| 170 - 190 | 43 | L |
| 180 - 200 | 46 | XL |

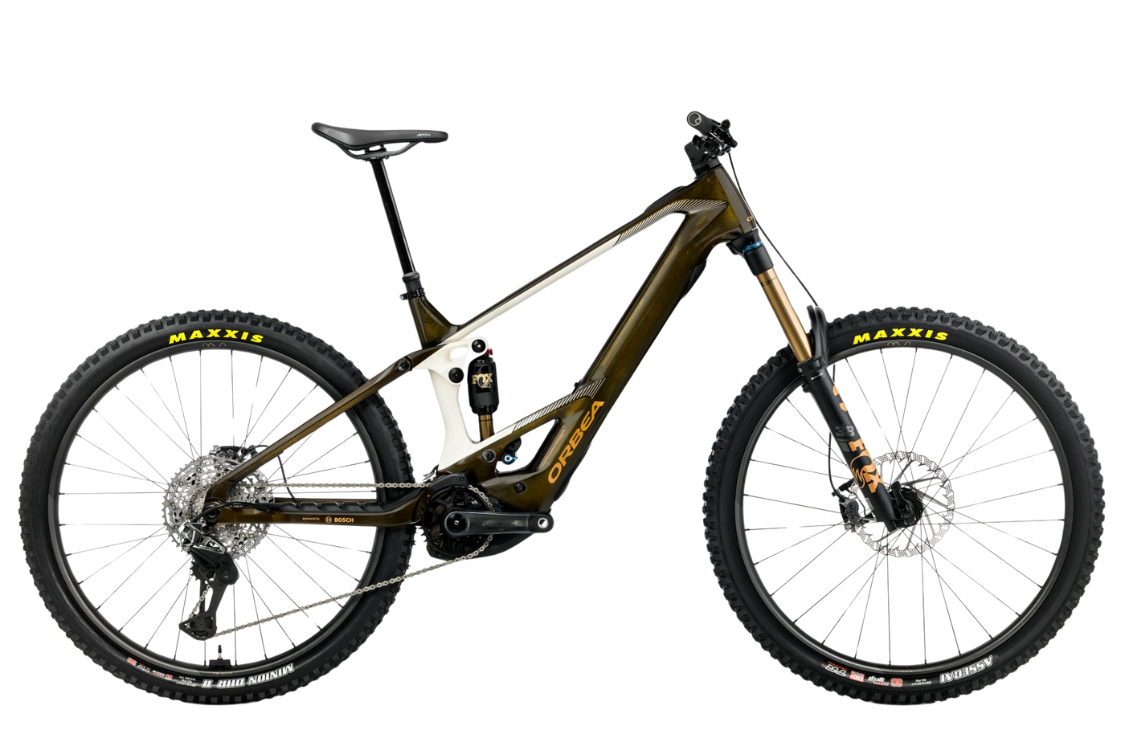

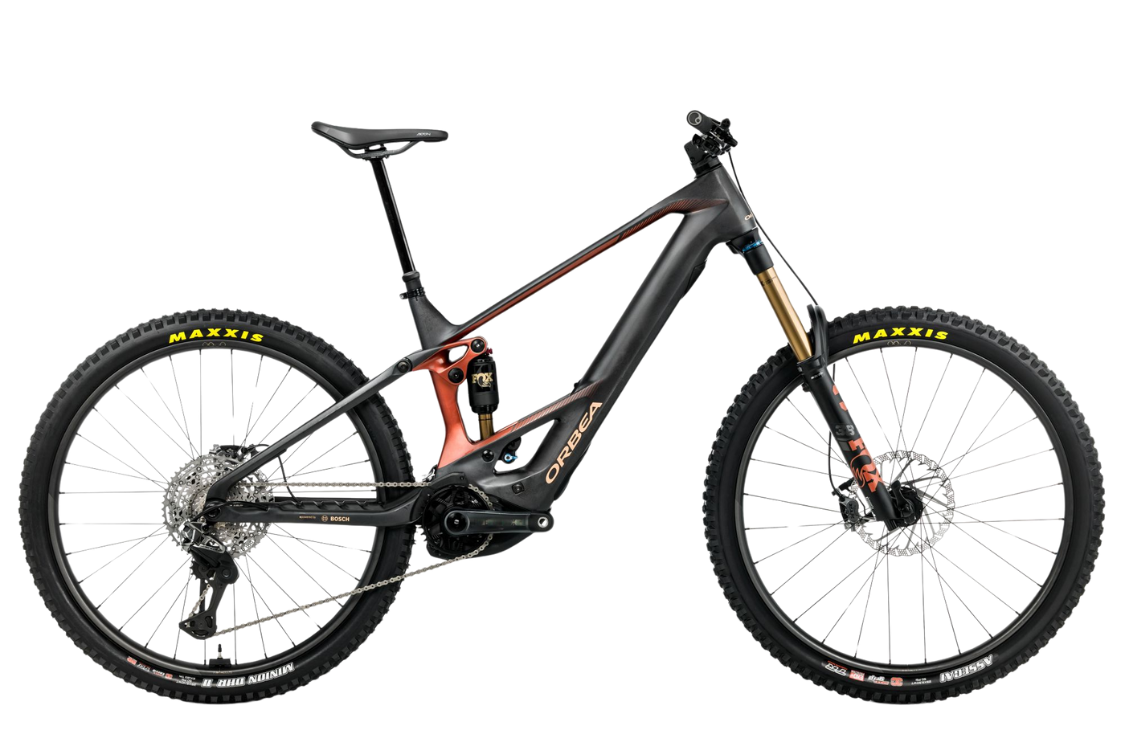

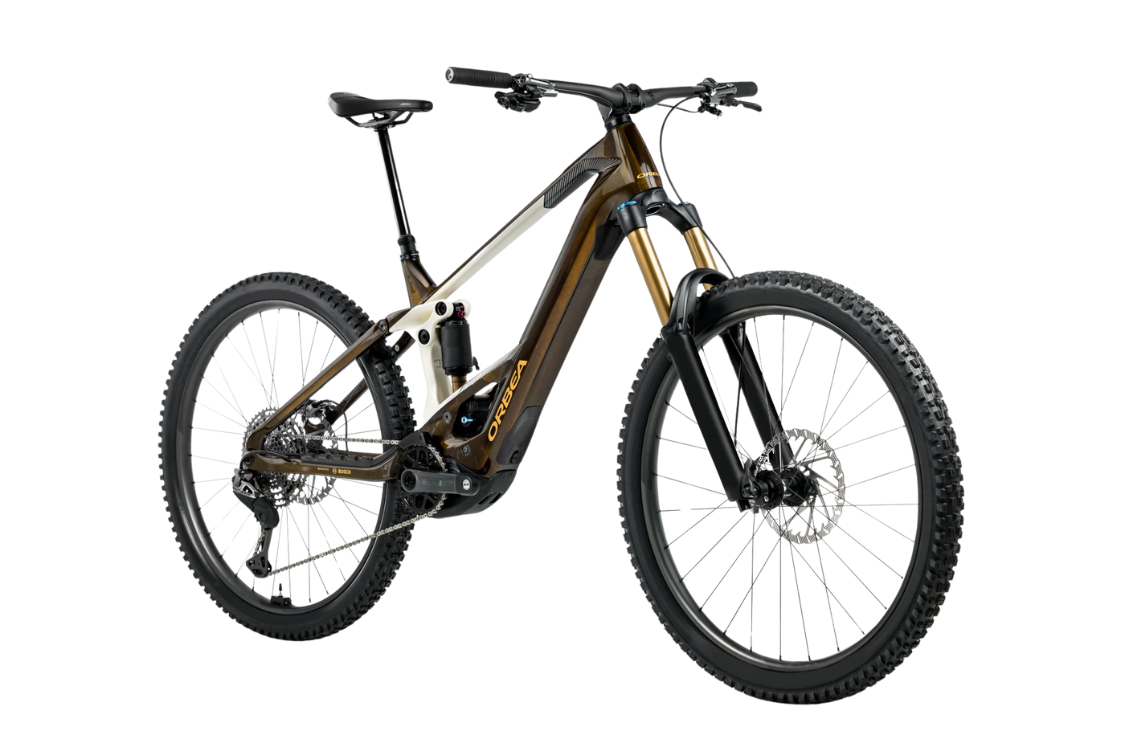

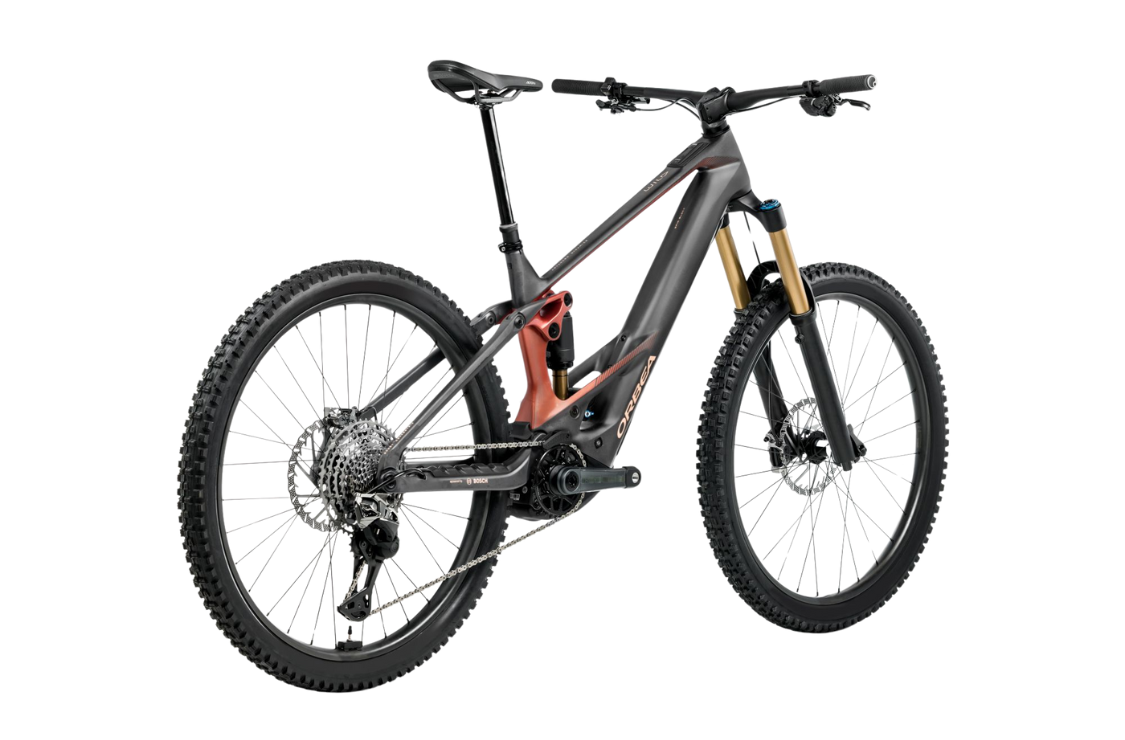

Orbea Wild M-LTD eMTB 2026 - Preorder
The Lightest, best-of-everything race-ready spec. The Orbea Wild M-LTD 2026 raises the bar for high-performance e-MTBs in Orbea’s Wild lineup. Equipped with the advanced Bosch Performance Line CX-R motor, it delivers up to 100 Nm of torque for serious climbing and aggressive terrain and comes equipped with the best available, premium components.

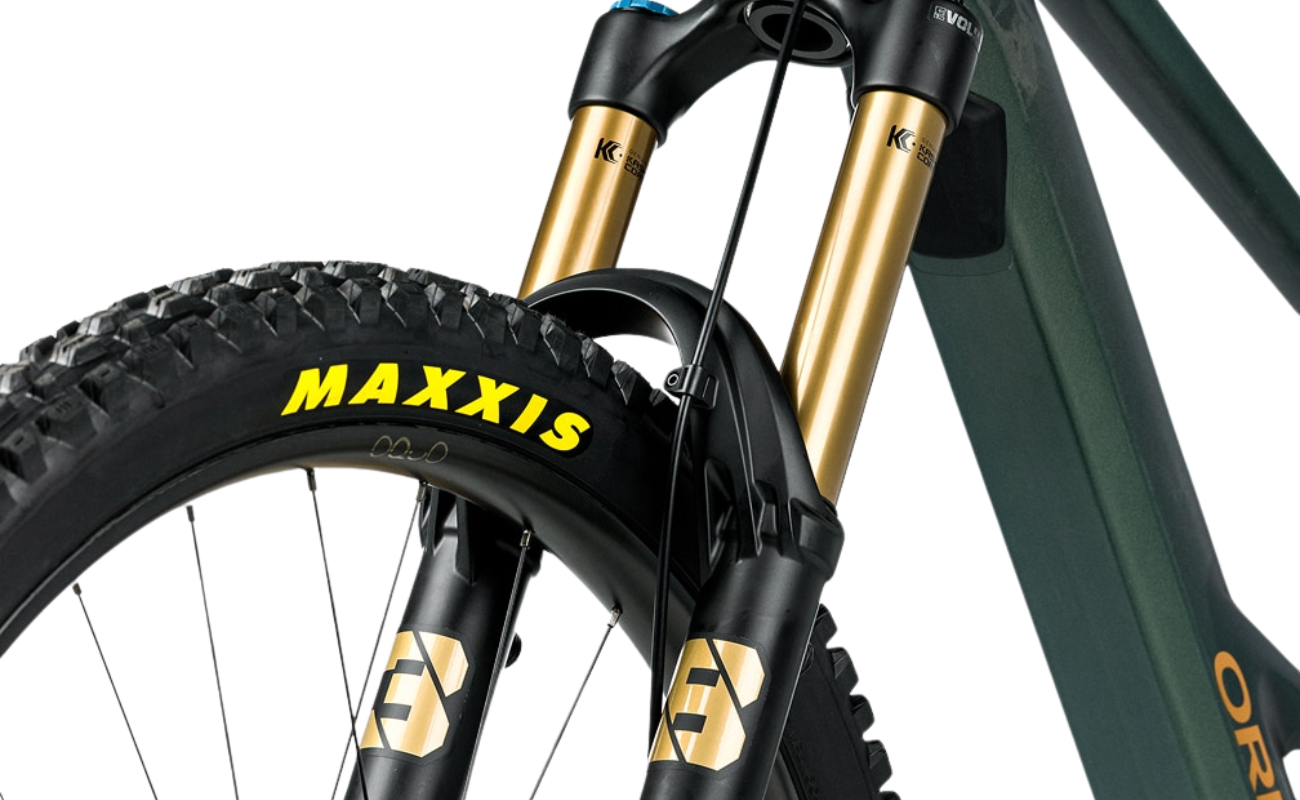

Fox 38 Float Factory. Faster, more stable, more versatile. The new carbon frame features some tweaks to geometry and rigidity that makes the Wild even faster and more stable. The M-LTD comes with a Fox 38 Float Factory 170 Grip 2 Kashima fork with 170mm travel and Fox Float X2 Factory Kashima rear shock with 170mm to deliver the ultimate ride.

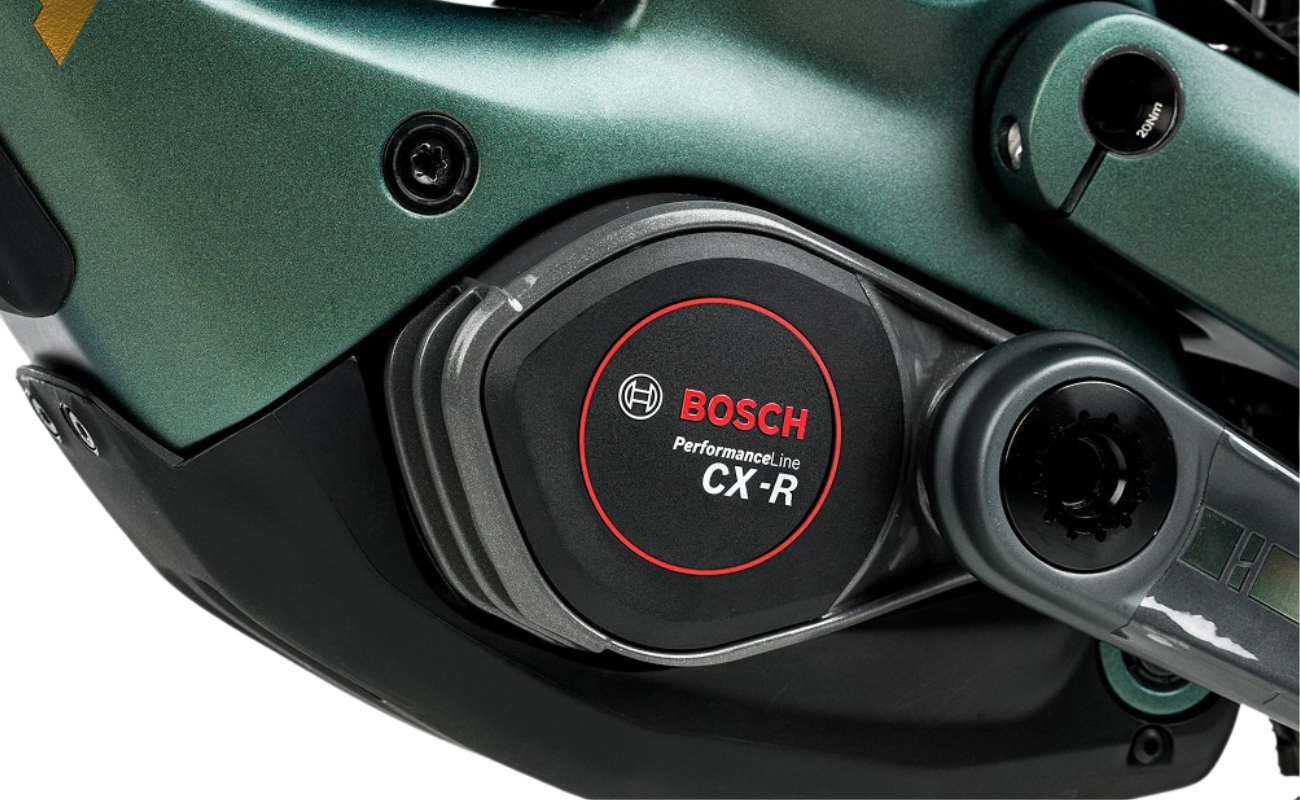

Bosch Performance CX-R motor. Modular Battery System. The Bosch Performance Line CX-R delivers an impressive 100 Nm of torque, offering powerful yet finely controlled performance. The latest version provides smoother, more precise handling, operates more quietly, and is lighter in weight—all while reducing pedal resistance for a natural, effortless ride. Out of the box the M-LTD has the 600Wh battery to keep things lighter, with option for more range with the range extender or changing to the 750Wh.
New Integrated Display. The new Kiox 400C display is neatly integrated into the frame for a sleek look and added protection against bumps and impacts. It includes a USB-C charging port, customizable screen layouts, and built-in navigation, giving riders both functionality and durability in one compact unit.
Build your dream bike with Orbea's MYO ("Make Your Own"). MYO offers you the ability to customise your Wild with your own personal paint job as well as offering a range of component and geometry choices. For example, a bigger battery, change to a mullet set up, increase dropper seatpost length etc.
Contact us to order and for assistance with choosing and submitting your MYO preferences. See the Wild M-TEAM if you prefer the 750Wh battery and a burlier spec.
| System | Bosch Smart System |
|---|---|
| Motor | Bosch Performance Line CX-R 100Nm |
| Battery | Bosch Powertube 600Wh Opt: 750Wh |
| Range Extender | Opt: Bosch Powermore 250 |
| Display |
Bosch System Module Kiox 400C |
| Charger | Bosch 4A (Smart) |
| Frame | Orbea Wild OMR 2025, Carbon |
|---|---|
| Sizes | S 41.5cm, M 41.5cm, L 43.5cm, XL 46cm |

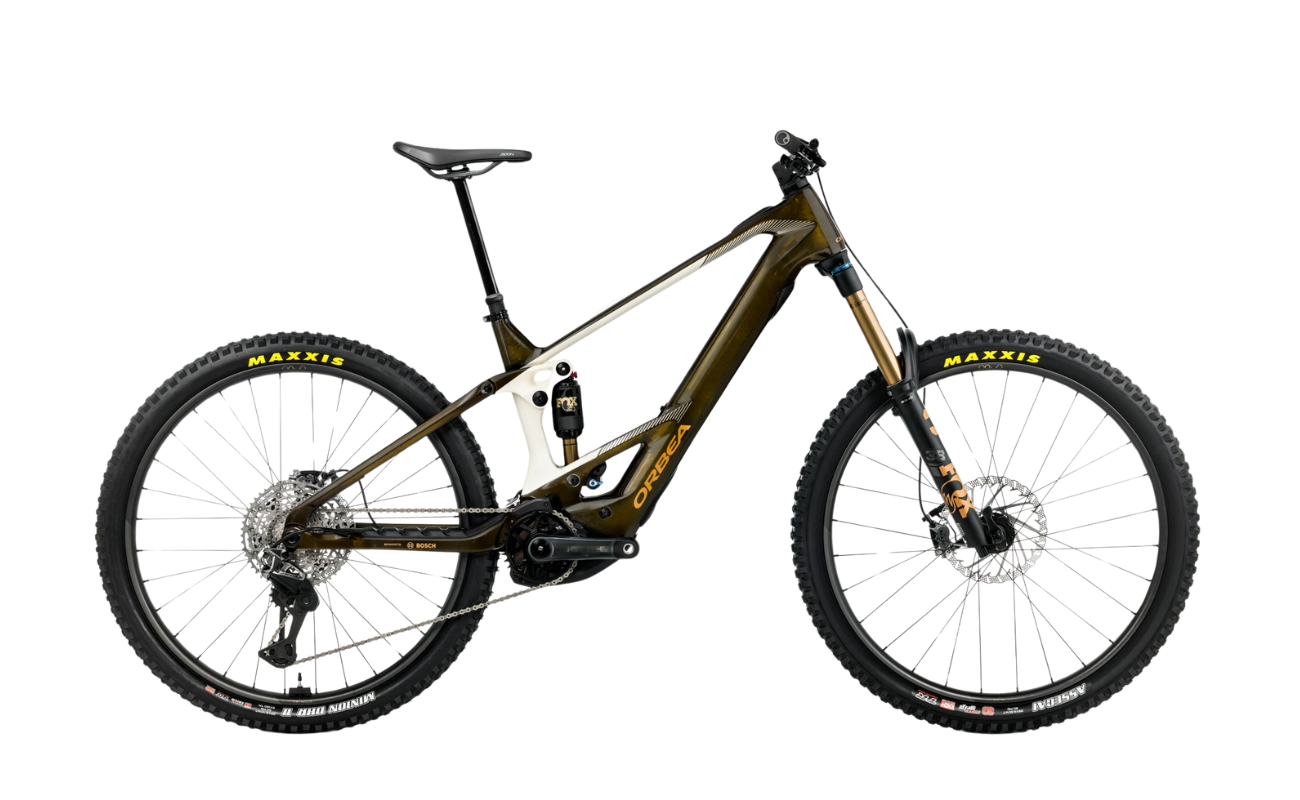

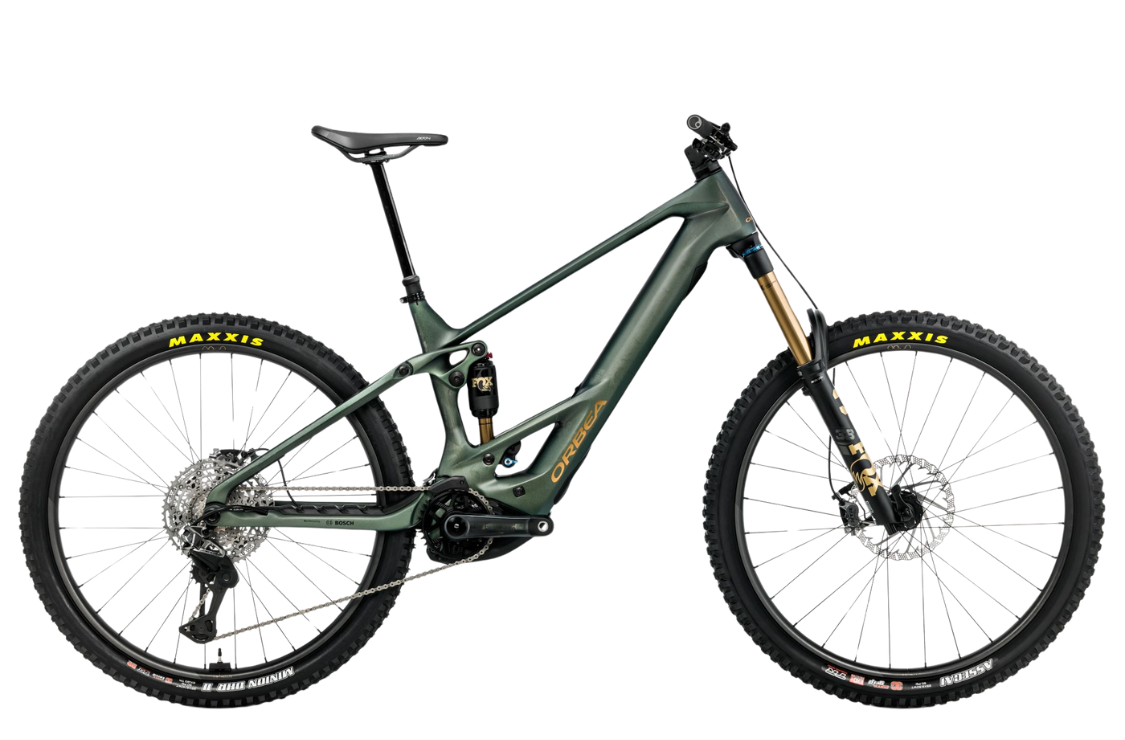

| Colours | Standard: Caramel Carbon / Cream White ; Diamond Carbon/Mars Red ; Seaweed Carbon View ; MYO (Make Your Own) |
| Fork |
Fox 38 Float Factory 170 Grip X2 QR15x110 Kashima |
| Front Travel | 170mm |
| Rear suspension |
Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm |
| Rear Travel | 170mm |
| Wheel Size |
29"
Opt: 29/27.5" |
| Wheels |
Oquo Mountain Control MC32LTD POWER (Carbon) |
| Tyres |
Maxxis Assegai 2.50" 60TPI 3CG/EXO+/TR MaxxGrip |
| Rear derailleur |
Shimano XTR M9260 12s |
| Shifters |
Shimano XTR M9250 |
| Cassette |
Shimano CS-M9200 10-51t 12-Speed |
| Chain |
Shimano CN-9100 |
| Crank |
e*thirteen Helix Race Carbon |
| Brakes |
Shimano XTR Hydraulic Disc |
| Handlebar |
OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Stem |
OC Mountain Control MC11 Alu SL, 0º |
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigma |
| Saddle |
Fizik Terra Aidon X1 145mm |
| Seatpost |
OC Mountain Control MC10, 31.6mm, Dropper |
| Warranty | Bosch drive system warranty: 2 years Orbea frame warranty: Lifetime if you register |
The Lightest, best-of-everything race-ready spec. The Orbea Wild M-LTD 2026 raises the bar for high-performance e-MTBs in Orbea’s Wild lineup. Equipped with the advanced Bosch Performance Line CX-R motor, it delivers up to 100 Nm of torque for serious climbing and aggressive terrain and comes equipped with the best available, premium components.
Fox 38 Float Factory. Faster, more stable, more versatile. The new carbon frame features some tweaks to geometry and rigidity that makes the Wild even faster and more stable. The M-LTD comes with a Fox 38 Float Factory 170 Grip 2 Kashima fork with 170mm travel and Fox Float X2 Factory Kashima rear shock with 170mm to deliver the ultimate ride.
Bosch Performance CX-R motor. Modular Battery System. The Bosch Performance Line CX-R delivers an impressive 100 Nm of torque, offering powerful yet finely controlled performance. The latest version provides smoother, more precise handling, operates more quietly, and is lighter in weight—all while reducing pedal resistance for a natural, effortless ride. Out of the box the M-LTD has the 600Wh battery to keep things lighter, with option for more range with the range extender or changing to the 750Wh.
New Integrated Display. The new Kiox 400C display is neatly integrated into the frame for a sleek look and added protection against bumps and impacts. It includes a USB-C charging port, customizable screen layouts, and built-in navigation, giving riders both functionality and durability in one compact unit.
Build your dream bike with Orbea's MYO ("Make Your Own"). MYO offers you the ability to customise your Wild with your own personal paint job as well as offering a range of component and geometry choices. For example, a bigger battery, change to a mullet set up, increase dropper seatpost length etc.
Contact us to order and for assistance with choosing and submitting your MYO preferences. See the Wild M-TEAM if you prefer the 750Wh battery and a burlier spec.
