| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 170 - 180 | 51 (Reach: 40) | |
| 175 - 190 | 51 (Reach: 44) | |
| 180 - 200 | 56 | |

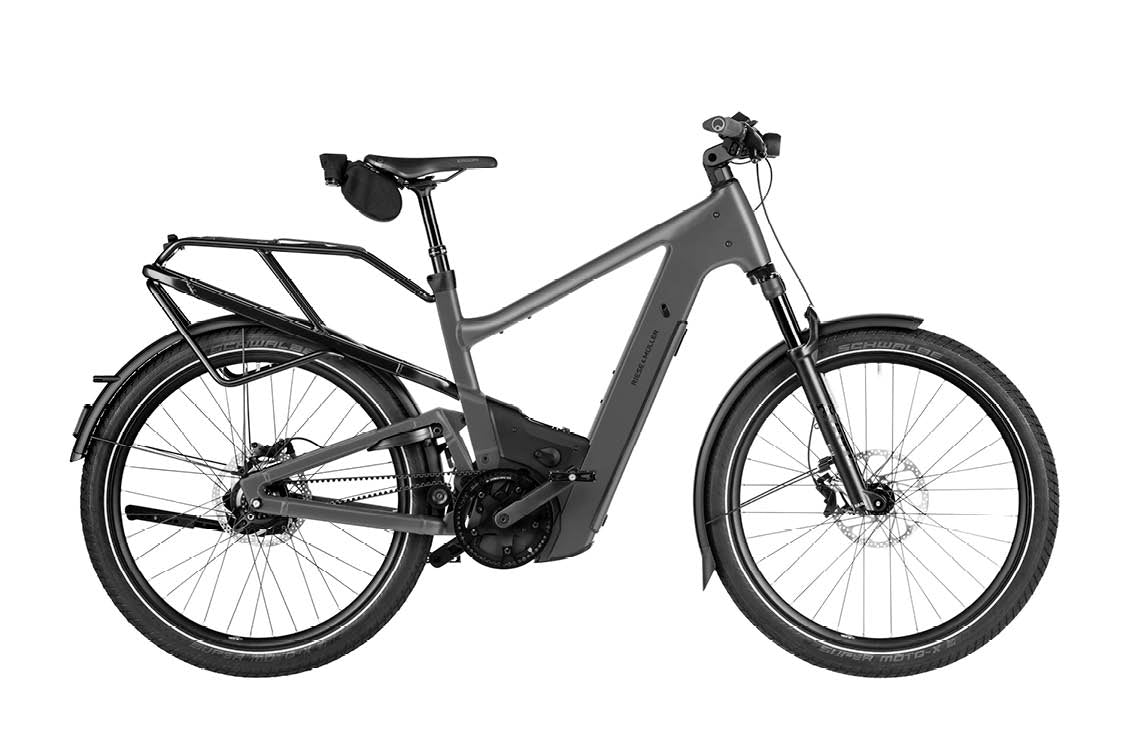

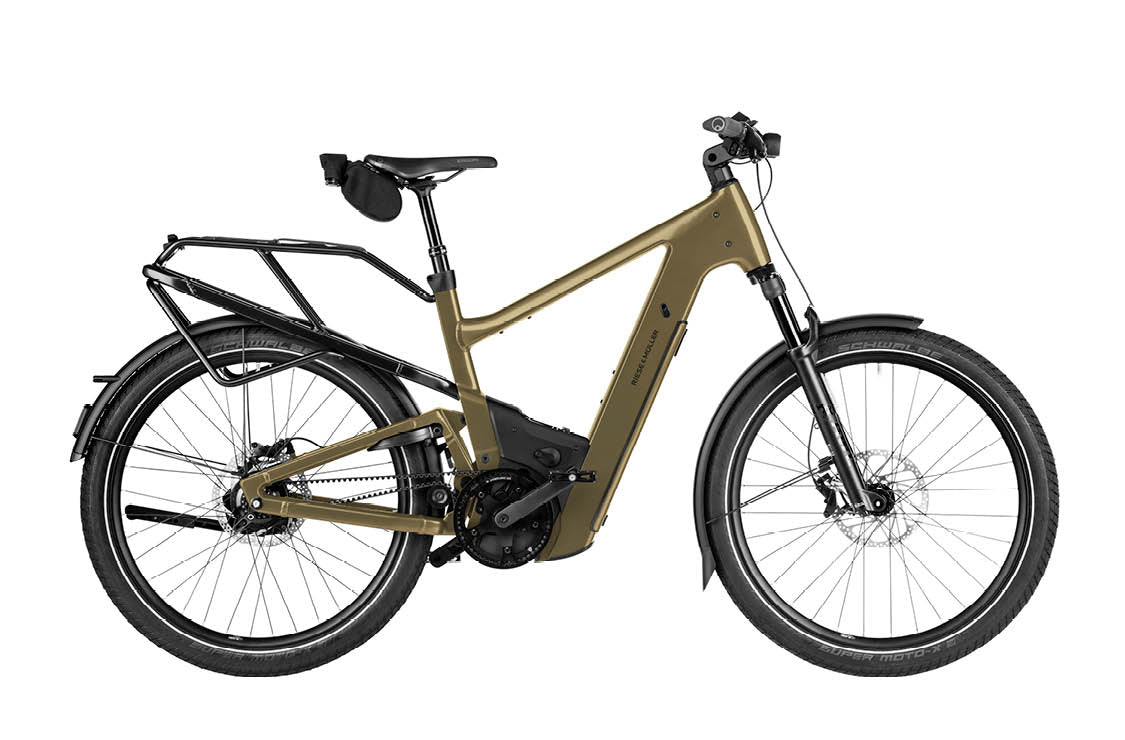

Riese & Muller Delite5 Rohloff ABS EBike

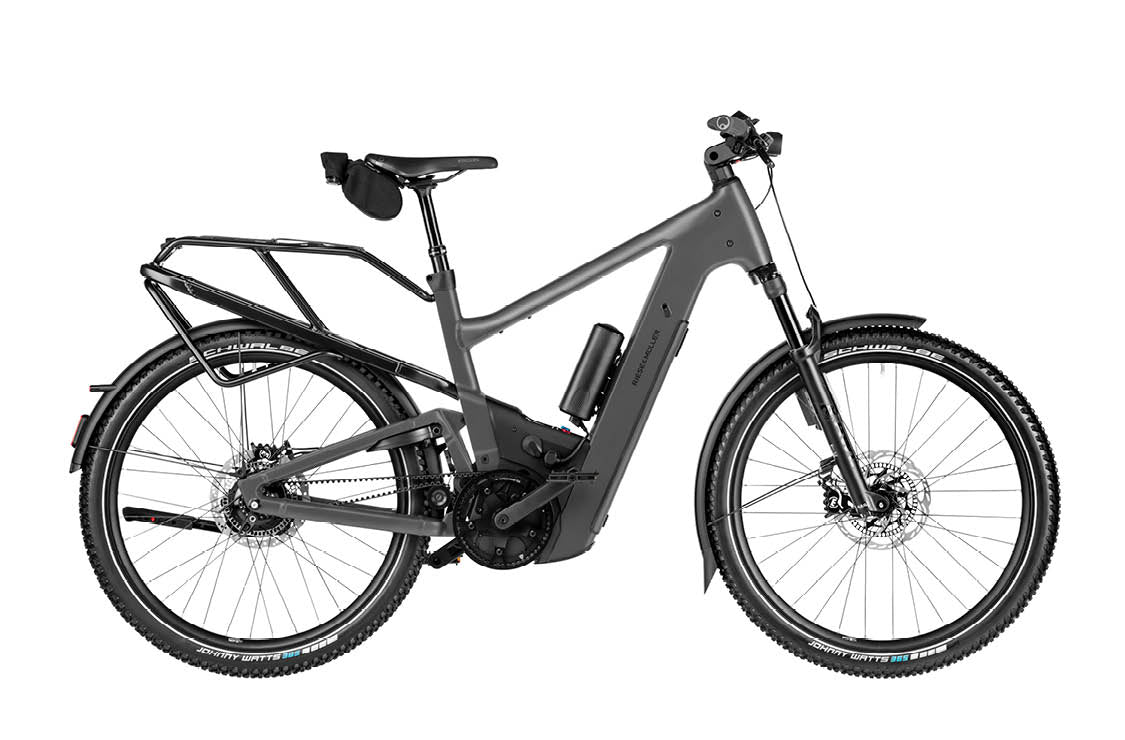

Powered by Gen 5 Bosch CX motor. The Delite5 introduces a new frame which integrates the powerful Gen 5 Bosch CX motor and a big 800Wh battery into the frame. It is also pre-equipped to fit a Bosch Powermore250 range extender, which this bike has.
Fox Dual Suspension for Agility and Comfort. The geometry and build quality of the Delite5 delivers an agile, comfortable and stable ride plus it has a 160kg carry capacity. The Fox AWL forks offer 120mm suspension upfront and the Fox rear shock has 110cm travel. It comes with a 100mm dropper seatpost as standard or 125mm if you opt for the Offroad kit.
Rohloff E-14 gearing with carbon belt drive. The combination of Rohloff's E-14 electronic hub and Gates carbon belt drive gives a huge 526% gear range, excellent for challenging terrain. Rohloff E-14 also offers handy features such as the lightning fast multi-shifting and auto downshift and it is very durable and requires little maintenance - one of the best drivetrain options available.
The best in braking with ABS option. The Delite5 comes with the new Tektro TRP HD hydrauic disc brakes, great for high use on sporty ebikes. You can also opt to add the Magura MT C ABS brakes with anti-lock braking for the best in braking performance and safety.
Fully equipped for night and day touring. Riese & Muller equip the Delite5 with everything you will need, even an Abus Granit XPlus lock. It comes with top of the range Supernova M99 Mini Pro 25 front headlight with high and low beam and the TL3 Pro rear light. The rear carry rack is rated for 27kg luggage and there is an extra 5kg at the front if you add a front carrier.
Contact us to order. Stock on its way or we can assist you to custom order your preferred configuration. See the Delite5 Vario ebike if you prefer a more economical belt driven model.
| System | Bosch Smart System |
|---|---|
| Motor | Bosch Performance Line CX Gen 5, 85-100Nm |
| Battery |
Bosch PowerTube 800Wh
Opt: Powermore 250Wh Extender |
| Charger | Bosch 4A (Smart) |
| Display | Bosch Kiox 500 |
| Frame | Delite5 |
|---|---|
| Sizes | 47cm (170-180cm) 51cm (175-190cm) 58cm (180-200cm) |
| Colours |
Amber, Stone Grey
|
| Suspension |
Fox AWL 34, Air, 120mm
|
| Rear Shock |
Fox Float Rhythm SV 165x45
|
| Wheel Size | 27.5" |
| Tyres |
Schwalbe Super Moto-X 62-584 Reflex Offroad: Schwalbe Johnny Watts 365 60-584* |
| Shifting System | Rohloff E14 electronic |
| Chain |
n.a (Gates Carbon Belt Drive)
|
| Brakes |
Tektro TRP HD-EU835 disc brake; Magura MT C ABS
|
| Handlebar |
Satori R&M Custom, 25,4mm, Alu
|
| Saddle |
Ergon SF10 Gel
|
| Seatpost |
Dropper Post X-Fusion Manic 100 Offroad: Dropper Post X-Fusion Manic 125 |
| Carry Capacity | 160kg |
| Bike Weight | 35.1kg |
| Lights Front |
Supernova M99 Mini Pro-25
|
|---|---|
| Lights Rear |
Supernova TL3 Pro
|
| Lock |
ABUS Adaptor Chain 2.0 130 cm; ABUS Granit Xplus |
| Carrier Rack | Riese & Müller 27kg |
| Front Carrier | Opt: R&M Front Carrier with Bag |
| Mudguards |
Curana Orbit 70
|
| Kickstand |
Ursus R97 IC Invisible Connect
|
| Suspension Pump |
Beto air suspension fork pump
|
Powered by Gen 5 Bosch CX motor. The Delite5 introduces a new frame which integrates the powerful Gen 5 Bosch CX motor and a big 800Wh battery into the frame. It is also pre-equipped to fit a Bosch Powermore250 range extender, which this bike has.
Fox Dual Suspension for Agility and Comfort. The geometry and build quality of the Delite5 delivers an agile, comfortable and stable ride plus it has a 160kg carry capacity. The Fox AWL forks offer 120mm suspension upfront and the Fox rear shock has 110cm travel. It comes with a 100mm dropper seatpost as standard or 125mm if you opt for the Offroad kit.
Rohloff E-14 gearing with carbon belt drive. The combination of Rohloff's E-14 electronic hub and Gates carbon belt drive gives a huge 526% gear range, excellent for challenging terrain. Rohloff E-14 also offers handy features such as the lightning fast multi-shifting and auto downshift and it is very durable and requires little maintenance - one of the best drivetrain options available.
The best in braking with ABS option. The Delite5 comes with the new Tektro TRP HD hydrauic disc brakes, great for high use on sporty ebikes. You can also opt to add the Magura MT C ABS brakes with anti-lock braking for the best in braking performance and safety.
Fully equipped for night and day touring. Riese & Muller equip the Delite5 with everything you will need, even an Abus Granit XPlus lock. It comes with top of the range Supernova M99 Mini Pro 25 front headlight with high and low beam and the TL3 Pro rear light. The rear carry rack is rated for 27kg luggage and there is an extra 5kg at the front if you add a front carrier.
Contact us to order. Stock on its way or we can assist you to custom order your preferred configuration. See the Delite5 Vario ebike if you prefer a more economical belt driven model.
| System | Bosch Smart System |
|---|---|
| Motor | Bosch Performance Line CX Gen 5, 85-100Nm |
| Battery |
Bosch PowerTube 800Wh
Opt: Powermore 250Wh Extender |
| Charger | Bosch 4A (Smart) |
| Display | Bosch Kiox 500 |
| Frame | Delite5 |
|---|---|
| Sizes | 47cm (170-180cm) 51cm (175-190cm) 58cm (180-200cm) |
| Colours |
Amber, Stone Grey
|
| Suspension |
Fox AWL 34, Air, 120mm
|
| Rear Shock |
Fox Float Rhythm SV 165x45
|
| Wheel Size | 27.5" |
| Tyres |
Schwalbe Super Moto-X 62-584 Reflex Offroad: Schwalbe Johnny Watts 365 60-584* |
| Shifting System | Rohloff E14 electronic |
| Chain |
n.a (Gates Carbon Belt Drive)
|
| Brakes |
Tektro TRP HD-EU835 disc brake; Magura MT C ABS
|
| Handlebar |
Satori R&M Custom, 25,4mm, Alu
|
| Saddle |
Ergon SF10 Gel
|
| Seatpost |
Dropper Post X-Fusion Manic 100 Offroad: Dropper Post X-Fusion Manic 125 |
| Carry Capacity | 160kg |
| Bike Weight | 35.1kg |
| Lights Front |
Supernova M99 Mini Pro-25
|
|---|---|
| Lights Rear |
Supernova TL3 Pro
|
| Lock |
ABUS Adaptor Chain 2.0 130 cm; ABUS Granit Xplus |
| Carrier Rack | Riese & Müller 27kg |
| Front Carrier | Opt: R&M Front Carrier with Bag |
| Mudguards |
Curana Orbit 70
|
| Kickstand |
Ursus R97 IC Invisible Connect
|
| Suspension Pump |
Beto air suspension fork pump
|
Riese & Muller Delite5 Rohloff ABS EBike
