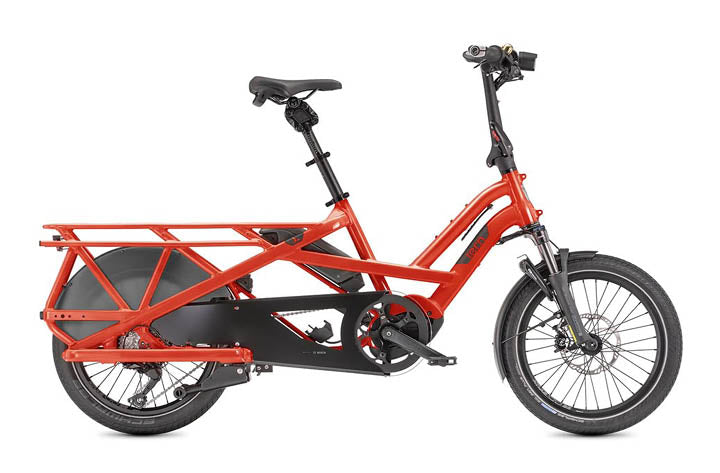

Tern GSD S10 LX EBike

  • The Tern GSD S10 LX ebike is a new model in the very popular GSD S10 series and the "LX" features an extra strong headlight with high and low beam, a rear brake light and a thudbuster suspension seatpost. The GSD S10's are renowned as strong, safe child and cargo carriers. With a 200kg weight rating and a 20" wheel base it is compact and easy to manage and with the strong Bosch Cargo Line motor carrying heavy loads is a breeze. Foldable handlebars and vertical parking make it practical for apartment living too. With Tern's excellent accessory range you can configure it so it not only fits in with your life, it will improve it.

  • Contact us to order. See below for what's available.
    • Drive System: Gen 4 Bosch Cargo Line
    • Motor: 250W mid-drive, 85Nm of torque
    • Battery: Bosch Lithium-ion 500Wh (powerpack)
    • Range: Up to 110km
    • Comfort: Front suspension, adjustable handlebars, balloon tires, ergonomic seat and grips
    • Accessories: Lights, lock, mudguards, heavy duty rear carrier rack, heavy duty kickstand
    • Brand: Tern
Enquire Now
How to Finance or Rent

Same compact package. More cargo. More Visibility.

Longer. Stiffer. Stronger. Even more useful. The Tern GSD is just so useful. A strong, easy bike to ride even with passengers and cargo, this updated model has some excellent new features that will cement its place in your daily life.

The GSD S10 is powered by the strongest of Bosch's motors, the Bosch Cargo Line with 85Nm torque and 400% assist in turbo,. It comes with a 500Wh battery and you have the option to add a second battery for 1,000Wh capacity.

The new frame is slightly longer but much stiffer making it more balanced to ride, and more stable when loaded. Handlebars and stem can be easily adjusted to suit different rider heights and Tern estimate it suits riders from 150cm to 195cm in height. It also has a lower step through that makes it easy to get on and off and an incredibly clever new Atlas kickstand which is very stable and has a remote unlock lever to pull it up as you roll forward.

The Tern GSD S10 rolls along on very strong purpose made wheels with balloon, puncture resistant tires to add extra traction, convenience and comfort. A range of 10 gears is provided by the hardwearing Shimano Deore shifting system and you can rely on the German-made Magura hydraulic disc brakes to pull you up quickly and smoothly when required.

Tern is renowned for its excellent range of practical accessories and the range has increased with more options for carrying adults (see the Captains Chair) and extra luggage when carrying children.

An incredibly useful bike that will enhance your day-to-day life through its ability to provide safe and fun transport.

Tern GSD S10 EBike Bosch Cargo Line 2021 | Electric Bikes Brisbane
Tern GSD S10 LX E-Bike

E-Bike Technology

System Bosch Cargo Line CX Gen 4
Motor Bosch 250W mid-drive, 85Nm
Bosch Powerpack 500Wh
Extra 500Wh battery possible
Range Up to 110km
Charger Bosch 4A
Display Bosch Purion
Tern GSD S10 LX Headlight

Bike Specifications

Frame Tern GSD, 6061-AL, patented MultiTruss design
Sizes One size
Colours Schoolbus Yellow, Beetle Blue
Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm
Wheel Size 20"
Front Tire Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
Rear Tire Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Rims Tern Atlas, ultra wide 36 mm, dual reinforced joint
Shifting System Shimano Deore, 1 x 10 spd
Cassette Shimano 11-36T, 10 spd
Chain 10 spd, DHT for eBike, GST corrosion resistant coating
Brakes Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Tern Sweep, 6061-AL, Tern Andros adapted
Tern Andros, adjustable, forged construction, patented technology
Tern GSD by Velo, with rear handle
Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
Carry Capacity EFBE Tri-Test approved: 200 kg
Folding Size 176 x 40.5 x 83 cm (69.3" x 15.9" x 32.7")
Weight 33.58kg
Fitted Accessories
Front: Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
Rear: RearStop Brake Light, Always on brake light
Lock ABUS, keyed-alike with Bosch battery
Carrier Rack Frame integrated, heavy duty design
Integrated Wheel Guard, AL6061, w/ Side Skirt
Atlas Lockstand, w/ remote unlock, patented technology
Accessories An excellent selection to customise your bike
See Tern website for details
