ADO Air Carbon Folding EBike

Full Specification
ADO Air Carbon Folding EBike
Bike Overview

Ultralight. Ultra Easy. Ultra Cool. The ADO Air Carbon folding electric bike is a great-looking ultra-light folding ebike with some top tech. It is just 12.5 kg without battery (14.5kg with) and with its single speed drivetrain and carbon belt drive it is easy to ride and maintain. It folds easily into a compact form and you will enjoy the smooth power of the Bafang 250W rear drive motor, and the versatility and security offered by the ADO Smart App.

Foldable, portable and easy to maintain. The ADO Air Carbon is easy to fold, easy to load in a car and easy to take to work on the train or bus (or riding it). It is a great-looking carbon frame, and the carbon belt drive and single speed means it is ultra low maintenance. It conveniently comes with front and rear lights. There is also a kickstand and a rear rack with integrated mudguard available as an extra.

250W Bafang Motor and ADO Smart App with GPS tracking. The ADO Air Carbon is powered by the Bafang 250W brushless rear drive motor. This has a torque sensor to smooth the power delivery. It also comes with a 9.6Ah (345Wh) battery which also doubles as the ebike seatpost. For peace of mind, the ADO Air Carbon battery also complies with UN 38.3 lithium-ion battery testing standards. Pair the ebike to the ADO Smart App to take advantage of the Smart Connect module. With this you can track your e-bike's location via GPS and receive instant notifications if your bike moves or falls unexpectedly.

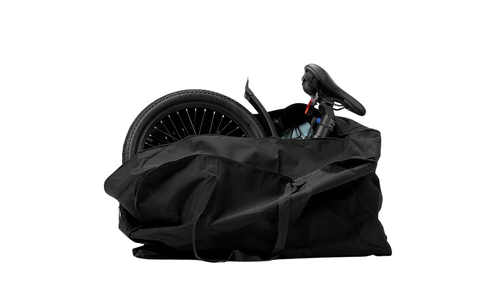

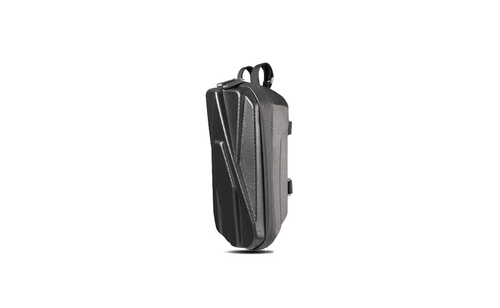

Order online or contact us to order. See the ADO Air 20 if you want a more economical lightweight folding ebike or the Air 20 Pro if you want a fully equipped lightweight folder.  Also ask us about the handy Air 20 storage bag, magnetic buckle and front bag. Kickstand and rear rack also available.

Delivery interstate and regionally to certain locations is available and extra charges may apply depending on location. Discount vouchers not applicable whilst on sale.

EBike Technology
System Bafang Hub
Motor
250W Brushless DC geared rear hub
Speed
EN15194 compliant - assistance to 25km/h
Battery Samsung 36V 9.6Ah (345Wh) Li-ion, Seat post mounted
BMS Yes, has battery management system
Range 60 - 80km depending on power usage and conditions
Display
IPS Colour Display
App
ADO Smart App
Bike Specification
Frame Carbon Fibre, Folding
Size Suits riders estim 155-190cm
Colour Latte, Black
Fork Fixed
Wheels 20-inch
Tyres 20 x 1.75" puncture resistant
Gearing Single-speed Drivetrain
Brakes Hydraulic disc
Pedals Yes
Seat Comfort seat
Weight 14.5kg incl battery
Carry Capacity 120kg
Folded Dimensions 838*430*660mm
Warranty Electric Drive System: 12 Months
Frame: 5 Years
Fitted Accessories
Lights E-Mark Front and Rear
Lock No (GPS Anti-Theft via App)
Carrier Rack Opt: Metal Rear Rack
Mudguards Opt: Rear included with rear rack
Kickstand Alloy, side mount

Ultralight. Ultra Easy. Ultra Cool. The ADO Air Carbon folding electric bike is a great-looking ultra-light folding ebike with some top tech. It is just 12.5 kg without battery (14.5kg with) and with its single speed drivetrain and carbon belt drive it is easy to ride and maintain. It folds easily into a compact form and you will enjoy the smooth power of the Bafang 250W rear drive motor, and the versatility and security offered by the ADO Smart App.

Foldable, portable and easy to maintain. The ADO Air Carbon is easy to fold, easy to load in a car and easy to take to work on the train or bus (or riding it). It is a great-looking carbon frame, and the carbon belt drive and single speed means it is ultra low maintenance. It conveniently comes with front and rear lights. There is also a kickstand and a rear rack with integrated mudguard available as an extra.

250W Bafang Motor and ADO Smart App with GPS tracking. The ADO Air Carbon is powered by the Bafang 250W brushless rear drive motor. This has a torque sensor to smooth the power delivery. It also comes with a 9.6Ah (345Wh) battery which also doubles as the ebike seatpost. For peace of mind, the ADO Air Carbon battery also complies with UN 38.3 lithium-ion battery testing standards. Pair the ebike to the ADO Smart App to take advantage of the Smart Connect module. With this you can track your e-bike's location via GPS and receive instant notifications if your bike moves or falls unexpectedly.

Order online or contact us to order. See the ADO Air 20 if you want a more economical lightweight folding ebike or the Air 20 Pro if you want a fully equipped lightweight folder.  Also ask us about the handy Air 20 storage bag, magnetic buckle and front bag. Kickstand and rear rack also available.

Delivery interstate and regionally to certain locations is available and extra charges may apply depending on location. Discount vouchers not applicable whilst on sale.

System Bafang Hub
Motor
250W Brushless DC geared rear hub
Speed
EN15194 compliant - assistance to 25km/h
Battery Samsung 36V 9.6Ah (345Wh) Li-ion, Seat post mounted
BMS Yes, has battery management system
Range 60 - 80km depending on power usage and conditions
Display
IPS Colour Display
App
ADO Smart App
Frame Carbon Fibre, Folding
Size Suits riders estim 155-190cm
Colour Latte, Black
Fork Fixed
Wheels 20-inch
Tyres 20 x 1.75" puncture resistant
Gearing Single-speed Drivetrain
Brakes Hydraulic disc
Pedals Yes
Seat Comfort seat
Weight 14.5kg incl battery
Carry Capacity 120kg
Folded Dimensions 838*430*660mm
Warranty Electric Drive System: 12 Months
Frame: 5 Years
Lights E-Mark Front and Rear
Lock No (GPS Anti-Theft via App)
Carrier Rack Opt: Metal Rear Rack
Mudguards Opt: Rear included with rear rack
Kickstand Alloy, side mount
