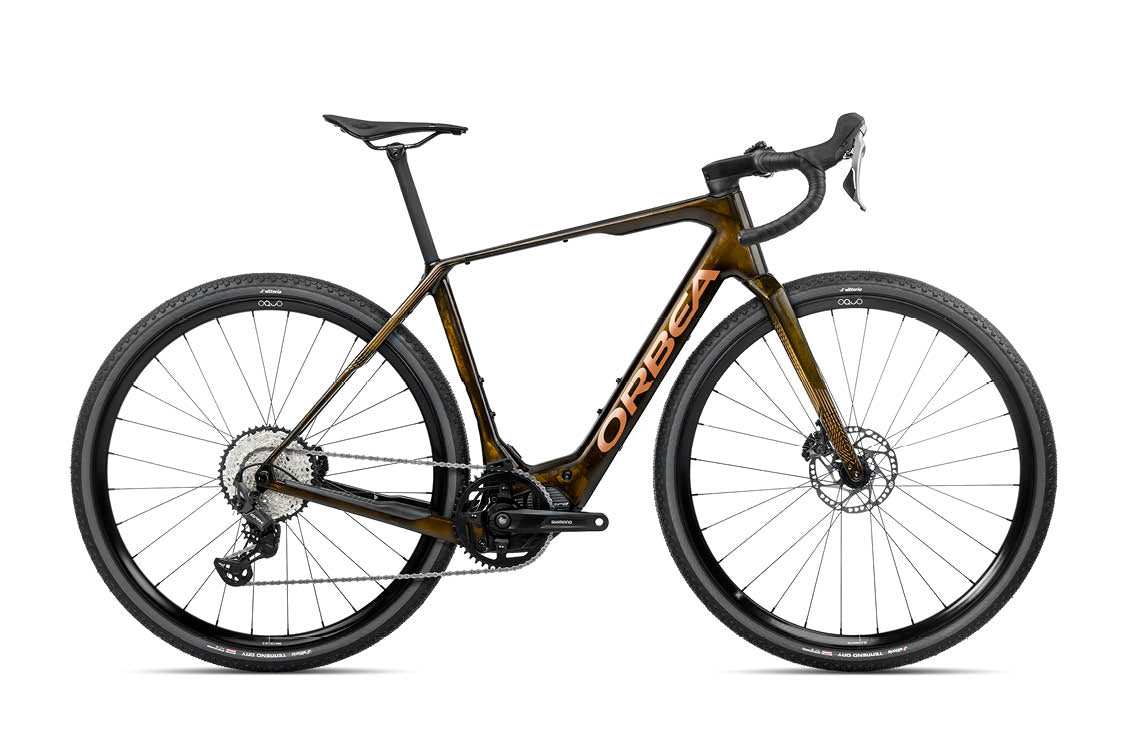

Orbea Denna M20 Carbon Gravel E-Bike - Custom Order

Full Specification
Orbea Denna M20 Carbon Gravel E-Bike - Custom Order
Bike Overview

Tough, lightweight, versatile. The Orbea Denna ebike is a cutting-edge gravel e-bike and the Denna M20 is a tough, mid-range carbon model. Light in weight it features Shimano GRX 12-speed gears and Oquo Road Control RC25PRO alloy wheelset. With the powerful Shimano EP801 motor, modern geometry, and massive 50c tire clearance, the Denna is built for adventure, endurance, and versatility.

Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is an optional 210Wh range extender.

Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.

Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M20i if you prefer a lighter version with electronic gearing and carbon wheels. See the Denna M30 if you prefer a more economical carbon option.

EBike Technology
System Shimano
Motor Shimano EP801
Battery Orbea Internal 420Wh
Opt: Range Extender 210Wh
Display n.a
Opt: Shimano EN600 Cycle Computer
Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Bike Specification
Frame Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
Sizes XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7
Colours Nickel Matt - Carbon Raw Gloss; Escape Green Gloss - Foggy Matt; MYO
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Rear Derailleur Shimano GRX RX822 GS
Shifters Shimano GRX RX820
Cassette Shimano CS-M7100 10-45t 12-Speed
Crank Shimano Steps EM600
Chain Shimano M6100
Chainring Alloy EP8 42t
Chain Guide Orbea eBike chainguide
Handlebar Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Stem
OC Road Performance RP10, -8º
Brakes Shimano RX820 Hydraulic disc
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Selle San Marco Shortfit 2.0 Start Up Off Road
Wheels Oquo Road Control RC25PRO
Tyres Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Pedals n.a
Weight
Approx 14.5kg tbc
Fitted Accessories
Lights No
Lock No
Carrier Rack No
Mudguards Opt: Front/rear Apollo Orbit Mudguards 55mm NEG
Kickstand No

Tough, lightweight, versatile. The Orbea Denna ebike is a cutting-edge gravel e-bike and the Denna M20 is a tough, mid-range carbon model. Light in weight it features Shimano GRX 12-speed gears and Oquo Road Control RC25PRO alloy wheelset. With the powerful Shimano EP801 motor, modern geometry, and massive 50c tire clearance, the Denna is built for adventure, endurance, and versatility.

Powerful, natural assistance with long-range battery. The Denna is equipped with Orbea’s custom-tuned Shimano EP801 motor and RS Gen2 RC firmware which provides 85Nm of smooth, natural-feeling power. The Road Control ("RC") tuning ensures the perfect balance of efficiency and assistance for everything from fast pavement to rugged gravel and you can choose between the Gravel and Gravel + profiles depending on where you are riding. The high density 420Wh battery is lightweight and offers up to 3,000m climbing and there is an optional 210Wh range extender.

Comfort for the long haul. Denna’s OMR carbon frame and fork are designed with flex zones to absorb road chatter while maintaining efficiency. The gravel-optimized geometry, wider tire clearance, balanced weight distribution and carefully selected components ensure a stable, comfortable ride on any surface.

Contact us to pre-order. Customisation options available via Orbea's MYO program. See the Denna M20i if you prefer a lighter version with electronic gearing and carbon wheels. See the Denna M30 if you prefer a more economical carbon option.

System Shimano
Motor Shimano EP801
Battery Orbea Internal 420Wh
Opt: Range Extender 210Wh
Display n.a
Opt: Shimano EN600 Cycle Computer
Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Frame Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing
Sizes XS:40.5; S:43.8; M:47.1; L:50.4; XL:53.7
Colours Nickel Matt - Carbon Raw Gloss; Escape Green Gloss - Foggy Matt; MYO
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tapered head tube compatible, Thru axle 12x100mm, thread M12xP1
Rear Derailleur Shimano GRX RX822 GS
Shifters Shimano GRX RX820
Cassette Shimano CS-M7100 10-45t 12-Speed
Crank Shimano Steps EM600
Chain Shimano M6100
Chainring Alloy EP8 42t
Chain Guide Orbea eBike chainguide
Handlebar Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Handlebar Tape Orbea Anti-Slippery/Shock Proof
Stem
OC Road Performance RP10, -8º
Brakes Shimano RX820 Hydraulic disc
Seatpost OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle Selle San Marco Shortfit 2.0 Start Up Off Road
Wheels Oquo Road Control RC25PRO
Tyres Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Pedals n.a
Weight
Approx 14.5kg tbc
Lights No
Lock No
Carrier Rack No
Mudguards Opt: Front/rear Apollo Orbit Mudguards 55mm NEG
Kickstand No
