Orbea Kemen Adv 30 EBike - Custom Order

Full Specification
Orbea Kemen Adv 30 EBike - Custom Order
Bike Overview

Simplest and lightest allterrain tourer. The Orbea Kemen Adv 30 eBike is the simplest and lightest model in the Kemen Adventure range. It is a versatile, all-terrain lighter weight trekking ebike, equipped with SR Suntour forks and Shimano 9-speed gearing. You will love its athleticism and an innovative stem design offers four alternate ride positions, depending on your preference. A beautiful bike to look at with Orbea's flare and attention to detail.

Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP600 motor which is strong with 85Nm and offers the least resistance of any motor when pedalling without power. It comes with a 540Wh high-density battery which offers up to 5 hours of riding, and there is the option of a 252Wh range extender too.

Durable and high performance. The Orbea Kemen Adv 30 model offers tough, high-quality components using the Shimano Cues 9-speed gearing system, a SR Suntour XCR34 air fork with 100 mm travel and the tried and tested Shimano MT200 hydraulic disc brakes. In addition, the Kemen 30 models have 2.35" knobbly tires, tubeless ready wheels and a rear rack reinforced to carry up to 30kg making it versatile for on an offroad and for carrying gear.

Contact us to order and for info on available sizes and colours. Also available in a mid-frame version. See the Kemen Adv 20 if you want a larger 630Wh battery and 11-speed gearing. Orbea Kemen Adv 10 featured in video below.


EBike Technology
System Shimano EP6 mid-drive 250Wh
Motor Shimano EP600, 85Nm
Battery Orbea Internal 630Wh
Range Varies. Up to 6 hours
Display n.a
Opt: Shimano EN600

Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Bike Specification
Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061
Sizes S: 42.8, M: 44, L: 45.7, XL: 47
Colours Mars Red/Ivory; Diamond Black; Stoneblue/Burgundy
Fork SR Suntour XCR34 100mm Air Q15x110
Wheel Size 29"
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 50, Width 760
Shifters Shimano Cues SL-U4000
Cassette
Shimano CS-LG300 11-46t 9-Speed
Crank Shimano Steps EM600
Rear Derailleur
Shimano Cues U4000 GS Shadow
Chain
KMC eGlide
Chainring Alloy 40t w/chainguard
Brakes Shimano MT200 Hydraulic Disc
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Seatpost
Alloy, 31.6mm, Setback 0
Seatpost Lever n.a
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Warranty Drive system 2 years
Frame: Lifetime if you register
Weight Approx 21kg
Fitted Accessories
Front Light Supernova Starstream Pro, High Beam with
Orbea integrated, USB-C charging point

Rear Light Supernova TL3 Z
Lock No
Carrier Rack Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
Mudguards Curana Apollo Orbit 70mm
Kickstand Massload rear adjustable

Simplest and lightest allterrain tourer. The Orbea Kemen Adv 30 eBike is the simplest and lightest model in the Kemen Adventure range. It is a versatile, all-terrain lighter weight trekking ebike, equipped with SR Suntour forks and Shimano 9-speed gearing. You will love its athleticism and an innovative stem design offers four alternate ride positions, depending on your preference. A beautiful bike to look at with Orbea's flare and attention to detail.

Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP600 motor which is strong with 85Nm and offers the least resistance of any motor when pedalling without power. It comes with a 540Wh high-density battery which offers up to 5 hours of riding, and there is the option of a 252Wh range extender too.

Durable and high performance. The Orbea Kemen Adv 30 model offers tough, high-quality components using the Shimano Cues 9-speed gearing system, a SR Suntour XCR34 air fork with 100 mm travel and the tried and tested Shimano MT200 hydraulic disc brakes. In addition, the Kemen 30 models have 2.35" knobbly tires, tubeless ready wheels and a rear rack reinforced to carry up to 30kg making it versatile for on an offroad and for carrying gear.

Contact us to order and for info on available sizes and colours. Also available in a mid-frame version. See the Kemen Adv 20 if you want a larger 630Wh battery and 11-speed gearing. Orbea Kemen Adv 10 featured in video below.


System Shimano EP6 mid-drive 250Wh
Motor Shimano EP600, 85Nm
Battery Orbea Internal 630Wh
Range Varies. Up to 6 hours
Display n.a
Opt: Shimano EN600

Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061
Sizes S: 42.8, M: 44, L: 45.7, XL: 47
Colours Mars Red/Ivory; Diamond Black; Stoneblue/Burgundy
Fork SR Suntour XCR34 100mm Air Q15x110
Wheel Size 29"
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 50, Width 760
Shifters Shimano Cues SL-U4000
Cassette
Shimano CS-LG300 11-46t 9-Speed
Crank Shimano Steps EM600
Rear Derailleur
Shimano Cues U4000 GS Shadow
Chain
KMC eGlide
Chainring Alloy 40t w/chainguard
Brakes Shimano MT200 Hydraulic Disc
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Seatpost
Alloy, 31.6mm, Setback 0
Seatpost Lever n.a
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Warranty Drive system 2 years
Frame: Lifetime if you register
Weight Approx 21kg
Front Light Supernova Starstream Pro, High Beam with
Orbea integrated, USB-C charging point

Rear Light Supernova TL3 Z
Lock No
Carrier Rack Orbea RR-02 Alloy, w/MIK HD and MIK Side and Ortlieb QL3.1 system. Max. 30Kg
Mudguards Curana Apollo Orbit 70mm
Kickstand Massload rear adjustable
N/A
N/A
In Stock
0% FINANCE AVAILABLE

Orbea Kemen Adv 30 EBike - Custom Order

Regular price $6,799
$6,799 Sale price Regular price
Consultant
Ask me anything about this bike
Our Quick Review
Bike icon
"Lighter weight, all-terrain trekking ebike. Most affordable model. Tough, athletic and versatile with Shimano Cues 11-sp gearing, Rear rack with 30kg carry capacity."
Sam at Electric Bikes Brisbane

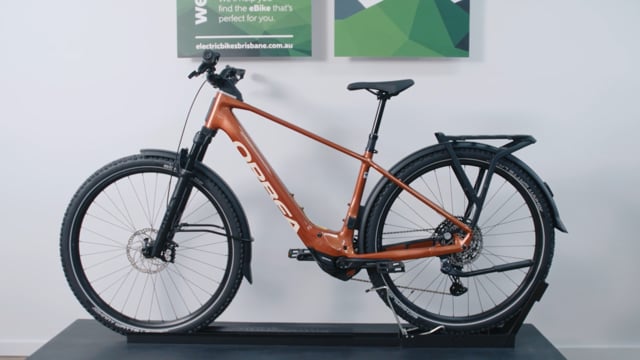

Video preview
