Orbea Kemen Tour 20 EBike

Full Specification

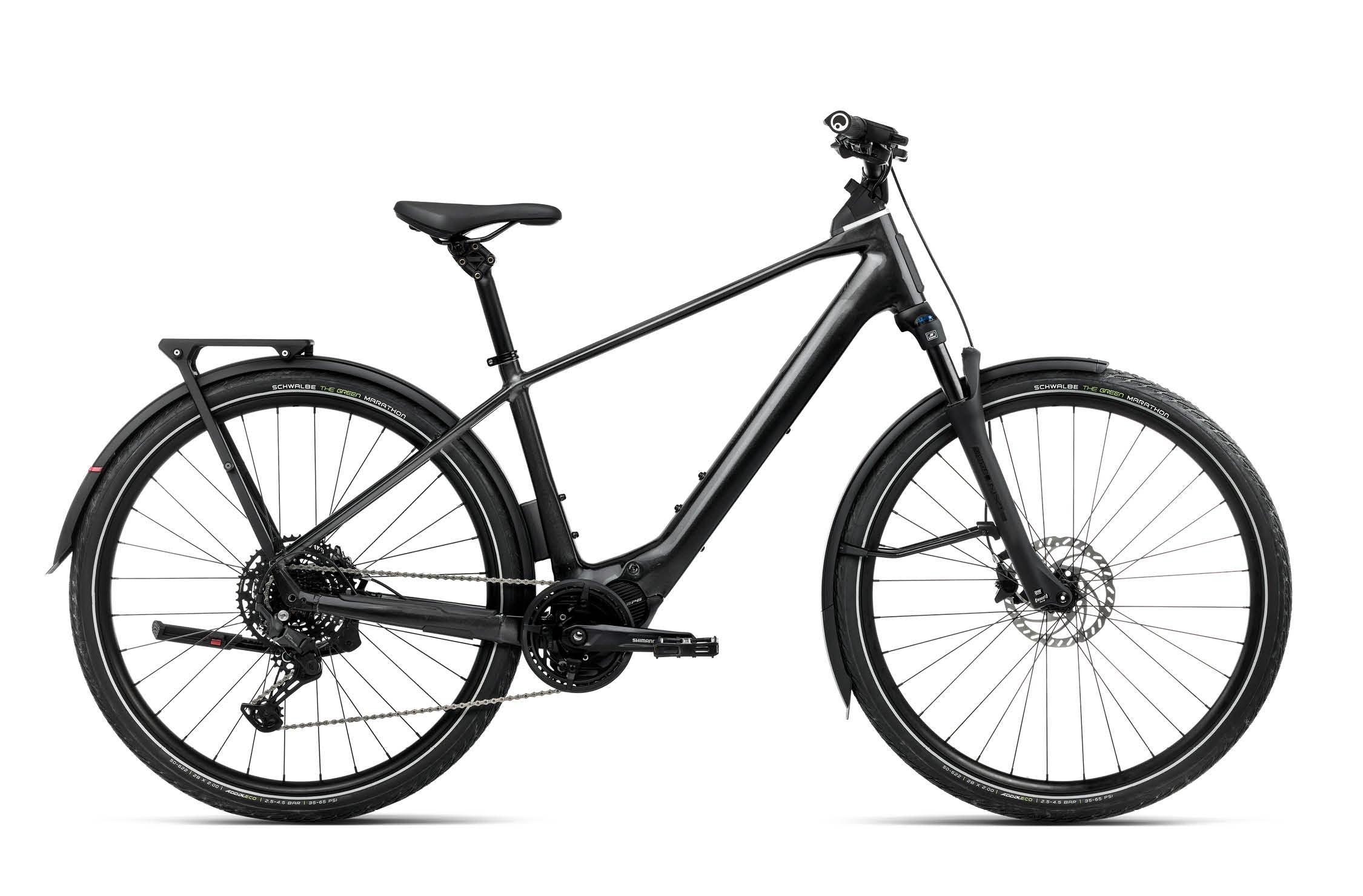

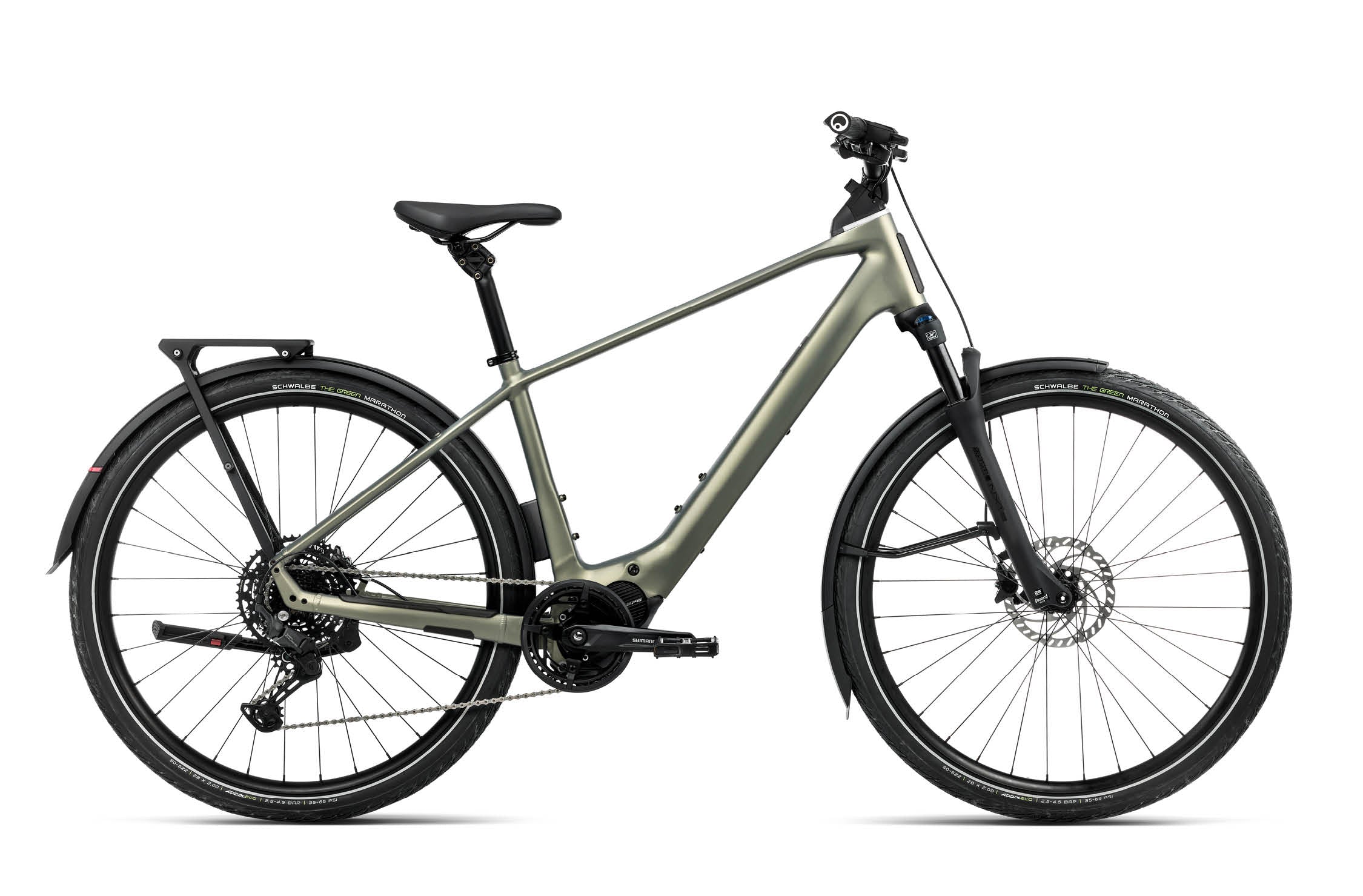

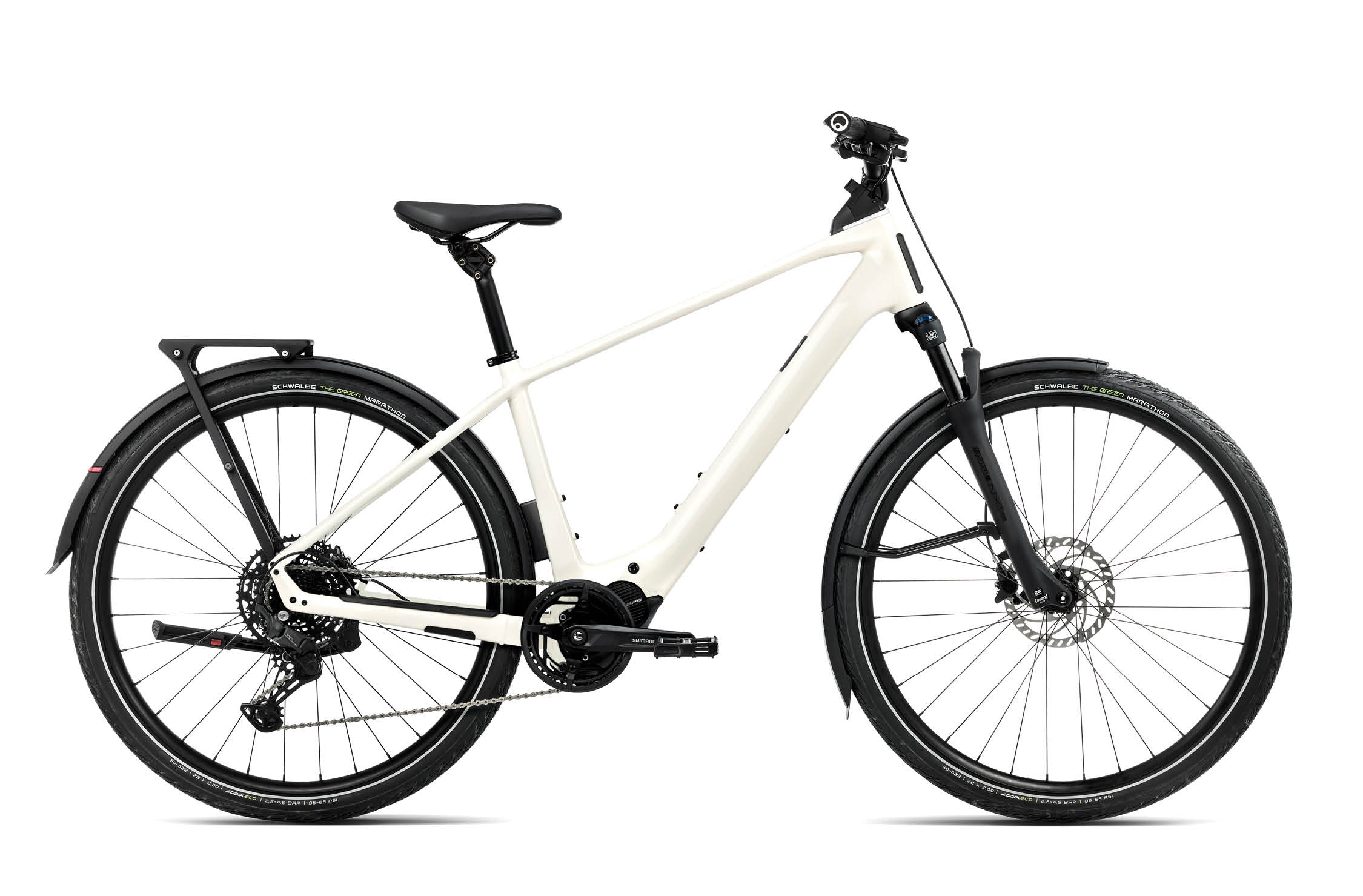

Orbea Kemen Tour 20 EBike
Bike Overview

Mid-range lighter weight tourer and commuter. The Orbea Kemen Tour 20 eBike is the mid-range model in the Kemen Tour range, for those seeking a premium lighter weight, touring and commuting ebike. It is athletic, comfortable and long-range. It features the smart lighting and modern styling of the Diem models and has a 10-speed gearing system, 80mm travel upfront and tough, fast rolling Schwalbe Marathon tires. A beautiful bike to look at with Orbea's flare and attention to detail.

Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP600 motor which is strong with 85Nm and offers the least resistance of any motor when pedalling without power. The frame houses a large 630Wh high-density battery which offers up to 6 hours of riding.

Durable and high performance. The Orbea Kemen Tour 20 model runs on the Shimano Cues 10-speed gearing system, a SR Suntour NX1 air fork with 80 mm travel and the new easy-maintenance Magura AT2 brakes. A suspension seatpost adds extra comfort and you can choose from four ride positions with Orbea's innovative new stem design. The Kemen Tour e-bikes have 29" tubeless-ready wheels with Schwalbe Marathon tires and an MIK-compatible rear carry rack rated to 20kg

Contact us to order and for info on available sizes and colours. Also available in a mid-frame version. See the Kemen Tour 10 if you prefer a dropper seatpost, a display and 11-speed gears. See the Kemen Tour 30 if you want a lighter, simpler and more economical 9-speed option with 530Wh battery (featured in the video below).


EBike Technology
System Shimano EP6 mid-drive 250Wh
Motor Shimano EP600, 85Nm
Battery Orbea Internal 630Wh
Range Varies. Up to 6 hours
Display n.a
Opt: Shimano EN600

Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Bike Specification
Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061
Sizes S: 42.8, M: 44, L: 45.7, XL: 47
Colours Spaceship Green; Ivory White; Glitter Anthracite
Fork SR Suntour NX1 80mm Air Q15x110
Wheel Size 29"
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 50, Width 720
Shifters Shimano Cues SL-U6000
Cassette
Shimano CS-LG300 11-48t 10-Speed
Crank Shimano Steps EM600
Rear Derailleur
Shimano Cues U6000 GS Shadow
Chain
KMC eGlide
Chainring Alloy 40t w/chainguard
Brakes Magura AT2 Hydraulic Disc Easy Route Connection
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Marathon, 50-622, Reflective Tape
Seatpost
Alloy, 31.6mm, Setback 0, suspension
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Warranty Drive system 2 years
Frame: Lifetime if you register
Weight Approx 22kg
Fitted Accessories
Front Light Supernova Starstream Pro, High Beam with
Orbea integrated, USB-C charging point

Rear Light Supernova TL3 Z
Lock No
Carrier Rack Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Mudguards Curana Apollo Orbit 60mm
Kickstand Massload rear adjustable

Mid-range lighter weight tourer and commuter. The Orbea Kemen Tour 20 eBike is the mid-range model in the Kemen Tour range, for those seeking a premium lighter weight, touring and commuting ebike. It is athletic, comfortable and long-range. It features the smart lighting and modern styling of the Diem models and has a 10-speed gearing system, 80mm travel upfront and tough, fast rolling Schwalbe Marathon tires. A beautiful bike to look at with Orbea's flare and attention to detail.

Strong Shimano motor and ultra long-range battery. Orbea use the Shimano EP600 motor which is strong with 85Nm and offers the least resistance of any motor when pedalling without power. The frame houses a large 630Wh high-density battery which offers up to 6 hours of riding.

Durable and high performance. The Orbea Kemen Tour 20 model runs on the Shimano Cues 10-speed gearing system, a SR Suntour NX1 air fork with 80 mm travel and the new easy-maintenance Magura AT2 brakes. A suspension seatpost adds extra comfort and you can choose from four ride positions with Orbea's innovative new stem design. The Kemen Tour e-bikes have 29" tubeless-ready wheels with Schwalbe Marathon tires and an MIK-compatible rear carry rack rated to 20kg

Contact us to order and for info on available sizes and colours. Also available in a mid-frame version. See the Kemen Tour 10 if you prefer a dropper seatpost, a display and 11-speed gears. See the Kemen Tour 30 if you want a lighter, simpler and more economical 9-speed option with 530Wh battery (featured in the video below).


System Shimano EP6 mid-drive 250Wh
Motor Shimano EP600, 85Nm
Battery Orbea Internal 630Wh
Range Varies. Up to 6 hours
Display n.a
Opt: Shimano EN600

Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Frame Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061
Sizes S: 42.8, M: 44, L: 45.7, XL: 47
Colours Spaceship Green; Ivory White; Glitter Anthracite
Fork SR Suntour NX1 80mm Air Q15x110
Wheel Size 29"
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 50, Width 720
Shifters Shimano Cues SL-U6000
Cassette
Shimano CS-LG300 11-48t 10-Speed
Crank Shimano Steps EM600
Rear Derailleur
Shimano Cues U6000 GS Shadow
Chain
KMC eGlide
Chainring Alloy 40t w/chainguard
Brakes Magura AT2 Hydraulic Disc Easy Route Connection
Wheels
Alloy, Tubeless, 29", 29c, 32H
Tires Schwalbe Marathon, 50-622, Reflective Tape
Seatpost
Alloy, 31.6mm, Setback 0, suspension
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Warranty Drive system 2 years
Frame: Lifetime if you register
Weight Approx 22kg
Front Light Supernova Starstream Pro, High Beam with
Orbea integrated, USB-C charging point

Rear Light Supernova TL3 Z
Lock No
Carrier Rack Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Mudguards Curana Apollo Orbit 60mm
Kickstand Massload rear adjustable
N/A
N/A
1
Available
0% FINANCE AVAILABLE

Orbea Kemen Tour 20 EBike

Regular price $7,499
$7,499 Sale price Regular price
Configure Your Bike

Size Guide

×
Rider Height
Bike Frame
Bike Size
Rider Height (cm) Bike Frame (cm) Bike Size
153 - 172 43.8 S
164 - 183 47.1 M
176 - 195 50.4 L
187 - 206 53.7 XL



Don't struggle with sizes, just call and ask us 07 2102 9775
Color:
Size:
Consultant
Ask me anything about this bike
Our Quick Review
Bike icon
"Lighter weight, commuter ebike. Athletic, modern, versatile with 80mm travel, 10-sp gearing, and long-range battery & clever features"
Sam at Electric Bikes Brisbane

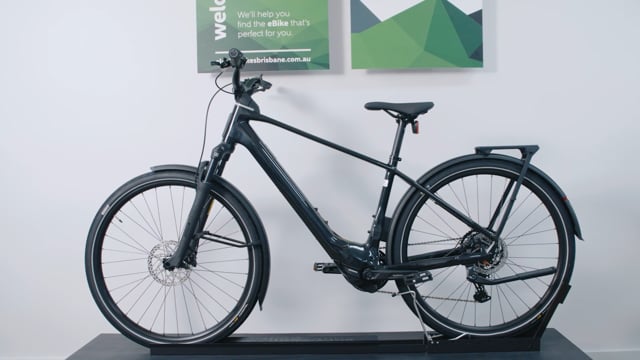

Video preview
