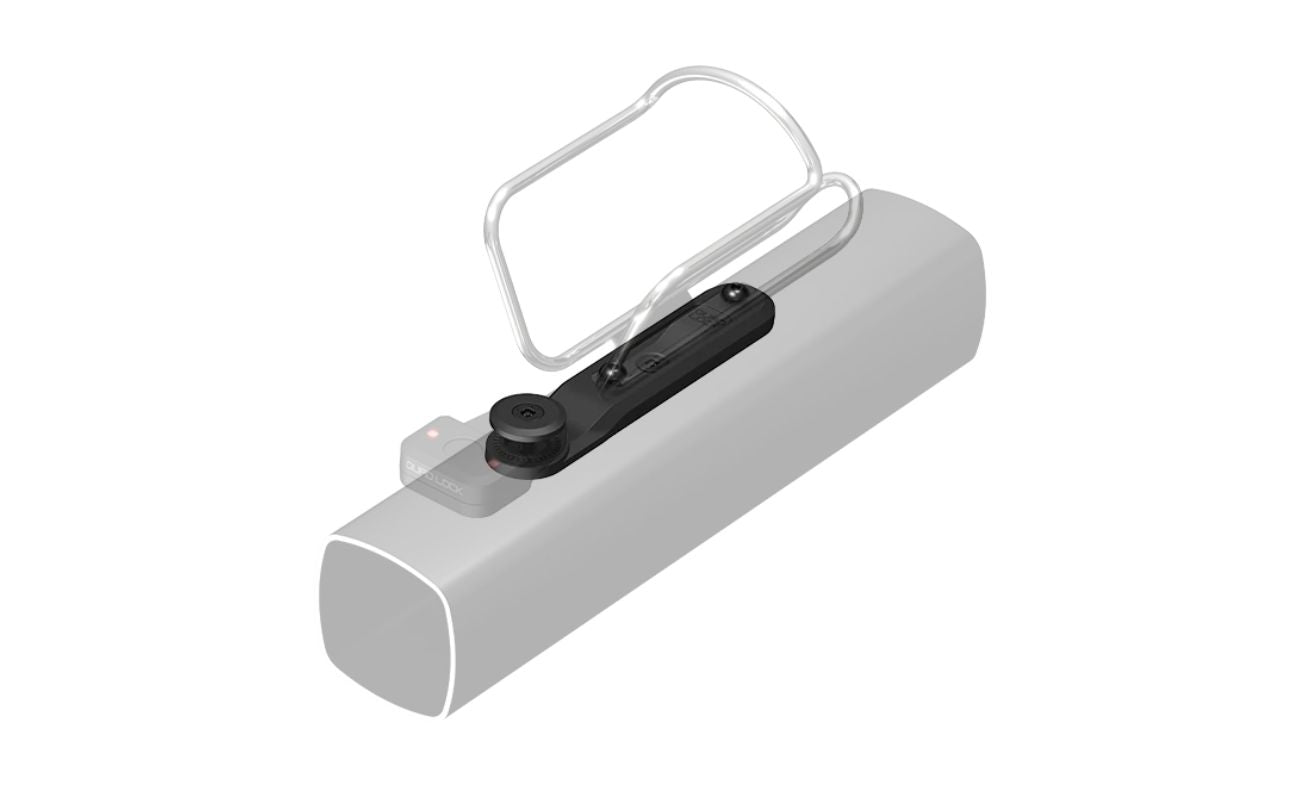

Quad Lock Bottle Cage Adaptor mounting illustration showing the bottle cage above the adaptor and Bike Alarm and Finder below.

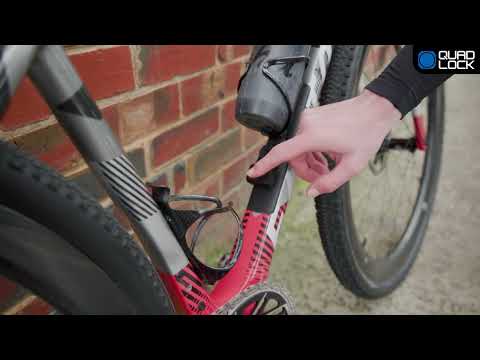

Video demonstrating how the Quad Lock Bike Alarm and Finder works

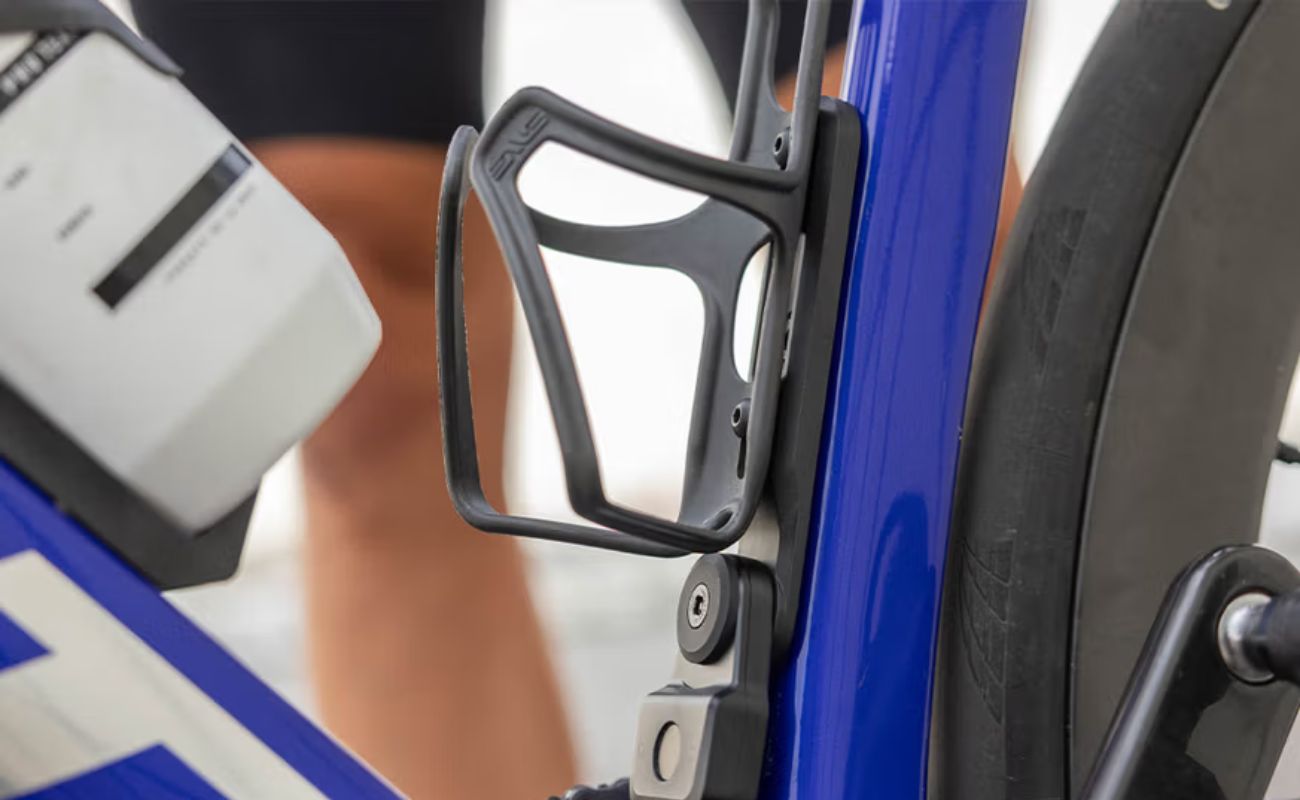

Quad Lock Bottle Cage Adaptor holding a black bottle cage and Bike Alarm and Finder on a blue bike frame.

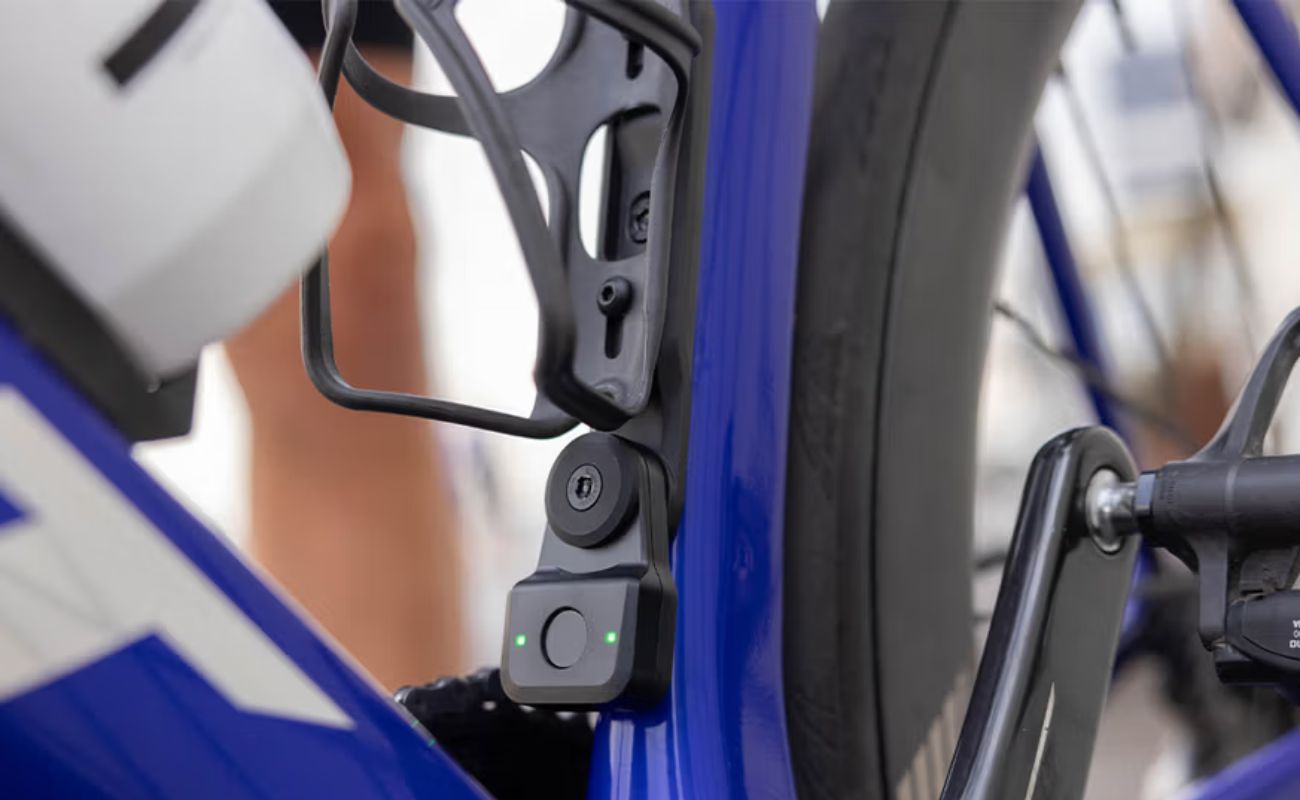

Close-up of Quad Lock Bike Alarm and Finder with green indicator lights mounted below a bottle cage on a blue bike.

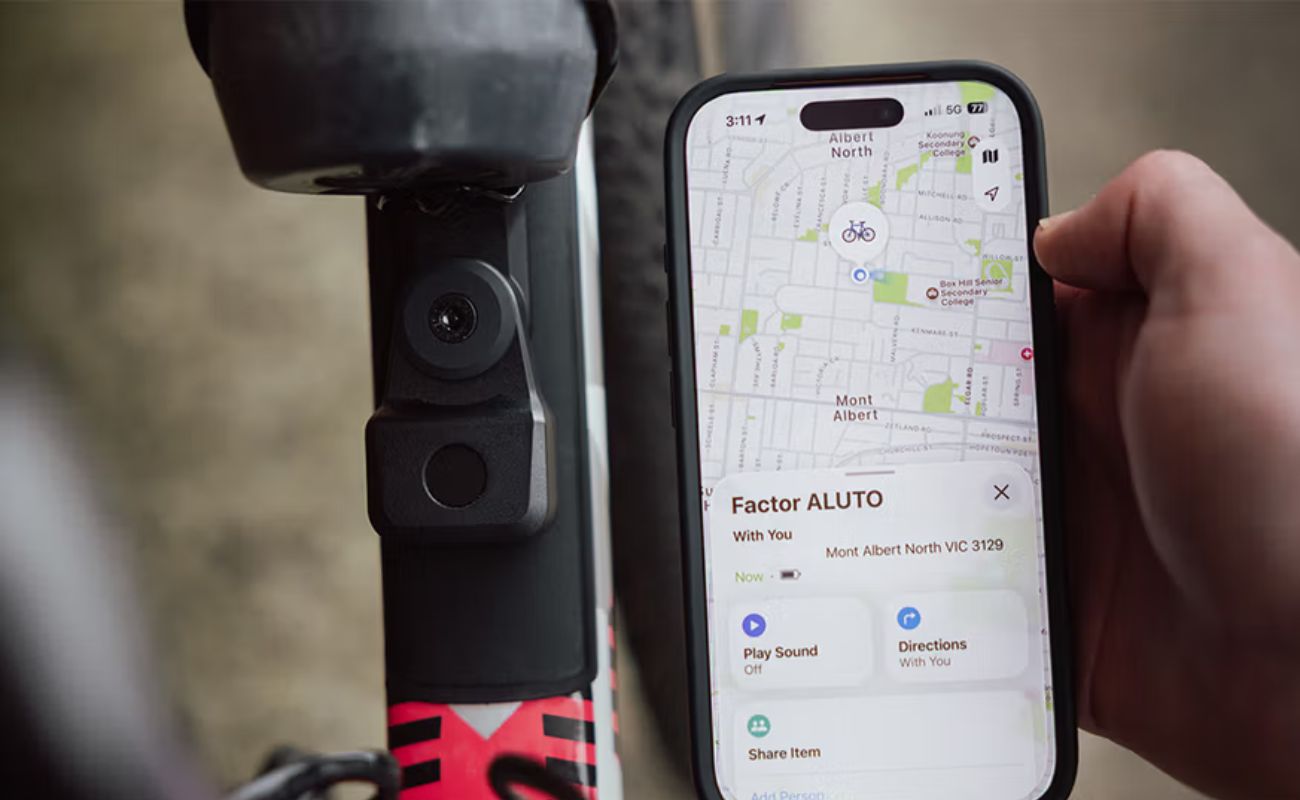

Quad Lock Bike Alarm and Finder mounted on a bike frame beside a phone displaying the bike’s location in the Find My app.

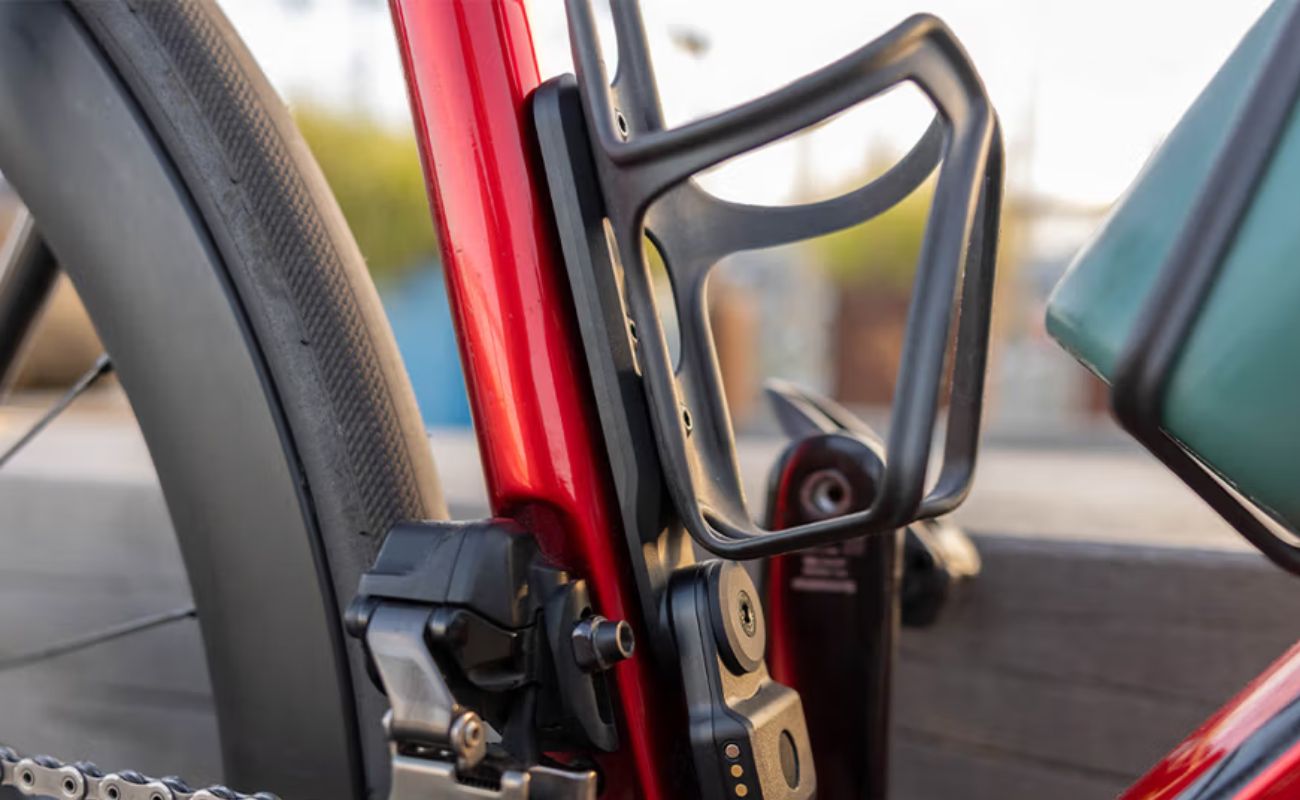

Quad Lock Bottle Cage Adaptor fitted to a red bike frame with a black bottle cage and Bike Alarm and Finder mounted below.

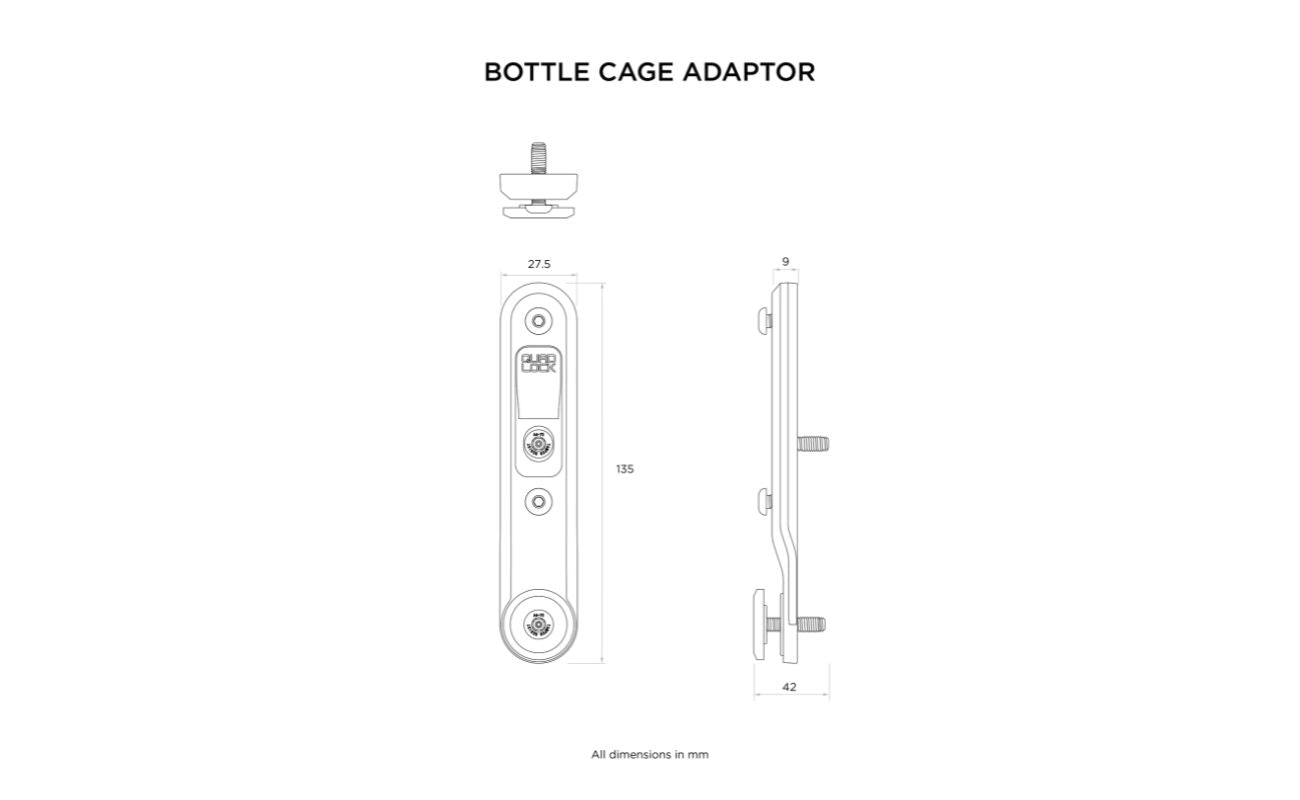

Quad Lock Bottle Cage Adaptor technical drawing showing front and side views with dimensions in millimetres.
Quad Lock Bottle Cage Adaptor mounting illustration showing the bottle cage above the adaptor and Bike Alarm and Finder below.
Video demonstrating how the Quad Lock Bike Alarm and Finder works
Quad Lock Bottle Cage Adaptor holding a black bottle cage and Bike Alarm and Finder on a blue bike frame.
Close-up of Quad Lock Bike Alarm and Finder with green indicator lights mounted below a bottle cage on a blue bike.
Quad Lock Bike Alarm and Finder mounted on a bike frame beside a phone displaying the bike’s location in the Find My app.
Quad Lock Bottle Cage Adaptor fitted to a red bike frame with a black bottle cage and Bike Alarm and Finder mounted below.
Quad Lock Bottle Cage Adaptor technical drawing showing front and side views with dimensions in millimetres.
5
Available

Quad Lock Bottle Cage Adaptor

$24.99
$24.99
Sent Priority Delivery
Have a question?Call Us 0721029775 or Submit Request
Shipping and delivery
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Details

Fit your Quad Lock® Bike Alarm and Finder beneath your bottle cage using your frame’s existing mounting points. Designed for standard 64mm spacing, this adaptor holds the alarm underneath while keeping your bottle cage mounted on top.

Made from nylon and aluminium, its slim, lightweight design weighs just 37g and provides up to 44mm of additional clearance for your bottle cage.


Key Features

  • Attaches to standard bottle cage mounts with 64mm spacing
  • Positions the Bike Alarm and Finder below your bottle cage
  • Provides up to 44mm (1.73 inches) of extra bottle cage clearance
  • Low-profile nylon and aluminium construction
  • Compatible with the Quad Lock® Bike Alarm and Finder



Specifications

  • Materials: Nylon and aluminium
  • Dimensions: 135 × 42 × 9mm (5.31 × 1.65 × 0.35 inches)
  • Weight: 37g (1.31 oz)
  • Mounting spacing: 64mm



What's Included

  • 1 × Quad Lock® Bottle Cage Adaptor
  • 1 × Quad Lock 360™ Top Cap
  • 1 × Allen (hex) key
  • 1 × dedicated tool for the supplied anti-theft screws
  • 2 × M5 × 10mm button head screws for the bottle cage
  • 1 × M5 × 16mm countersunk anti-theft screw
  • 1 × M5 × 25mm countersunk anti-theft screw



Fitting Notes

Suitable for most bottle cages. Cages with an extended lower tail may not sit flush against the adaptor.

Install your bottle cage with the supplied screws, which are the correct length for this mounting arrangement.
