Quad Lock Saddle Rail Adaptor
Details

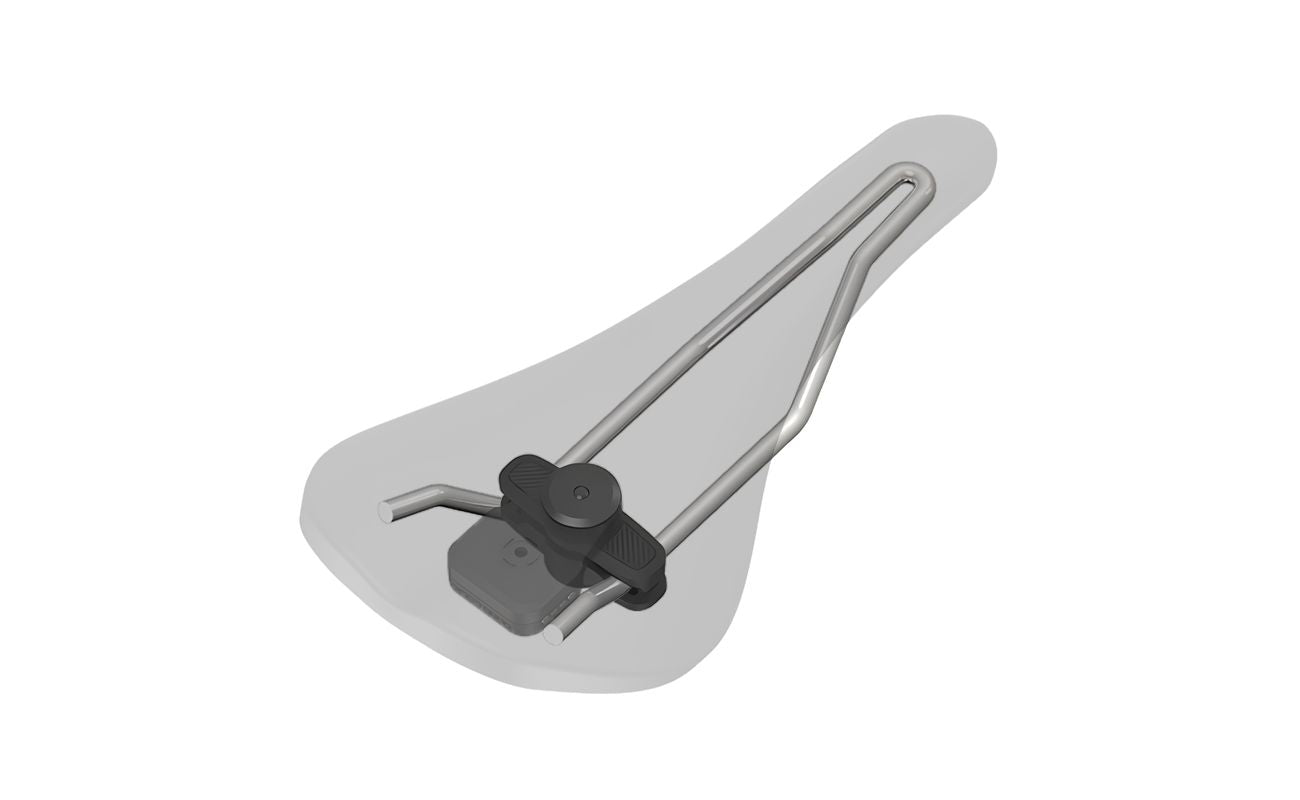

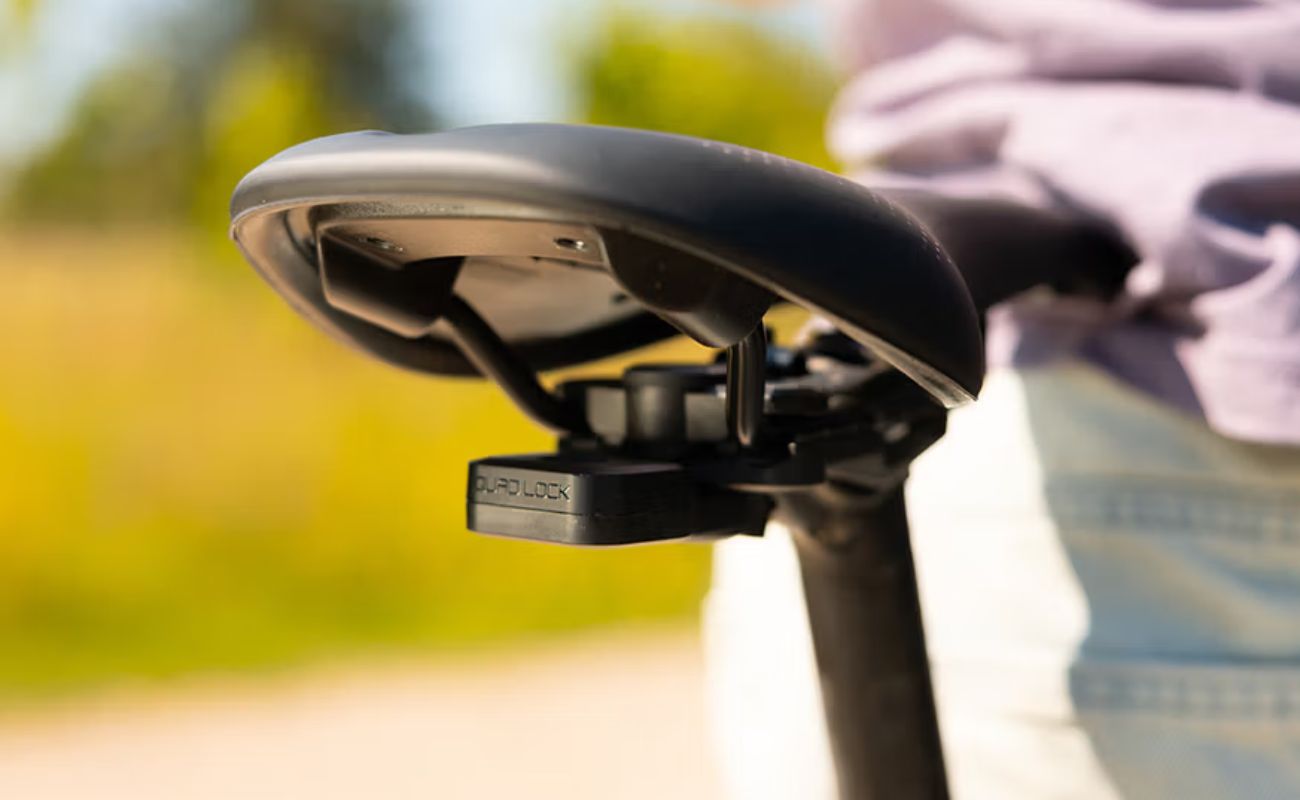

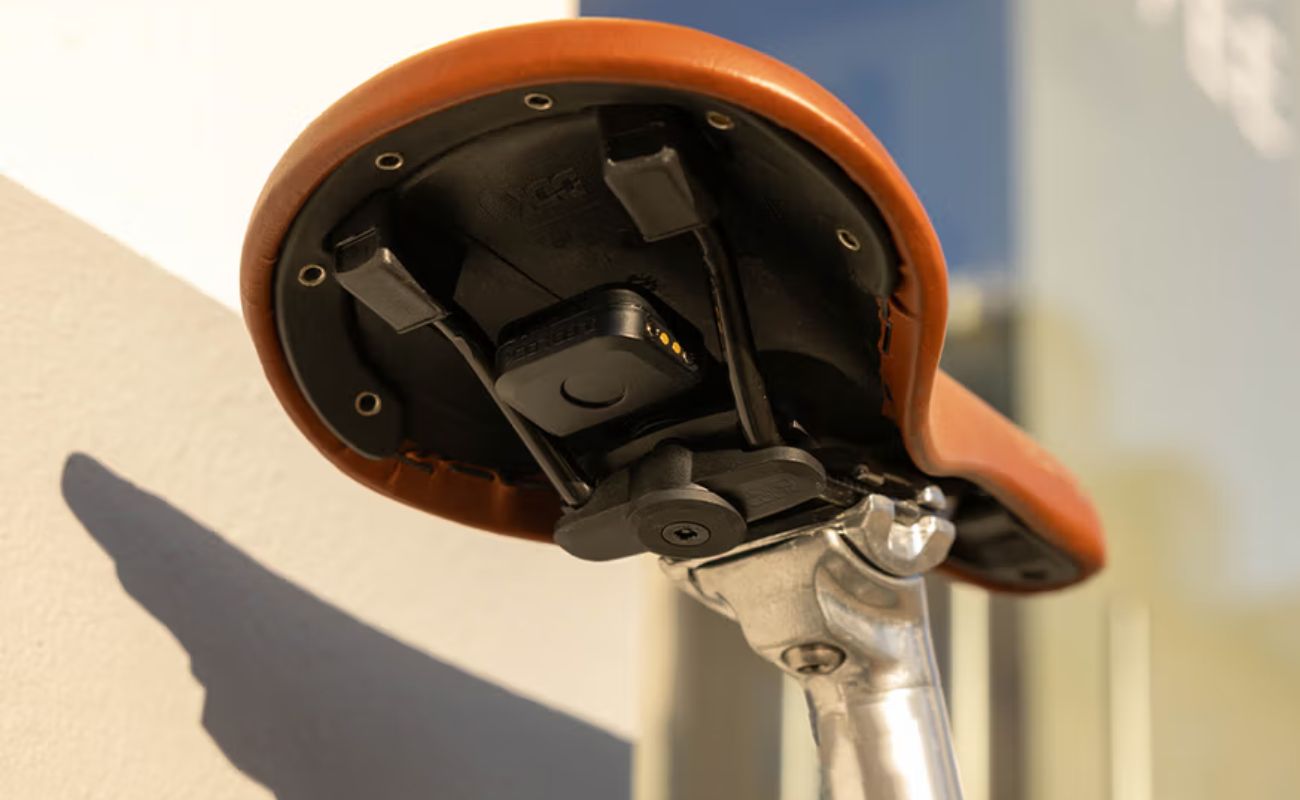

Keep your Quad Lock® Bike Alarm and Finder tucked beneath your saddle with this compact rail-mounted adaptor. Designed for standard 44mm saddle rails, it uses rubber grip pads to stay firmly in place and minimise rattling as you ride.
The adaptor also provides a mounting point for a compatible rear-facing action camera, light or radar, giving you more ways to use the space beneath your saddle.

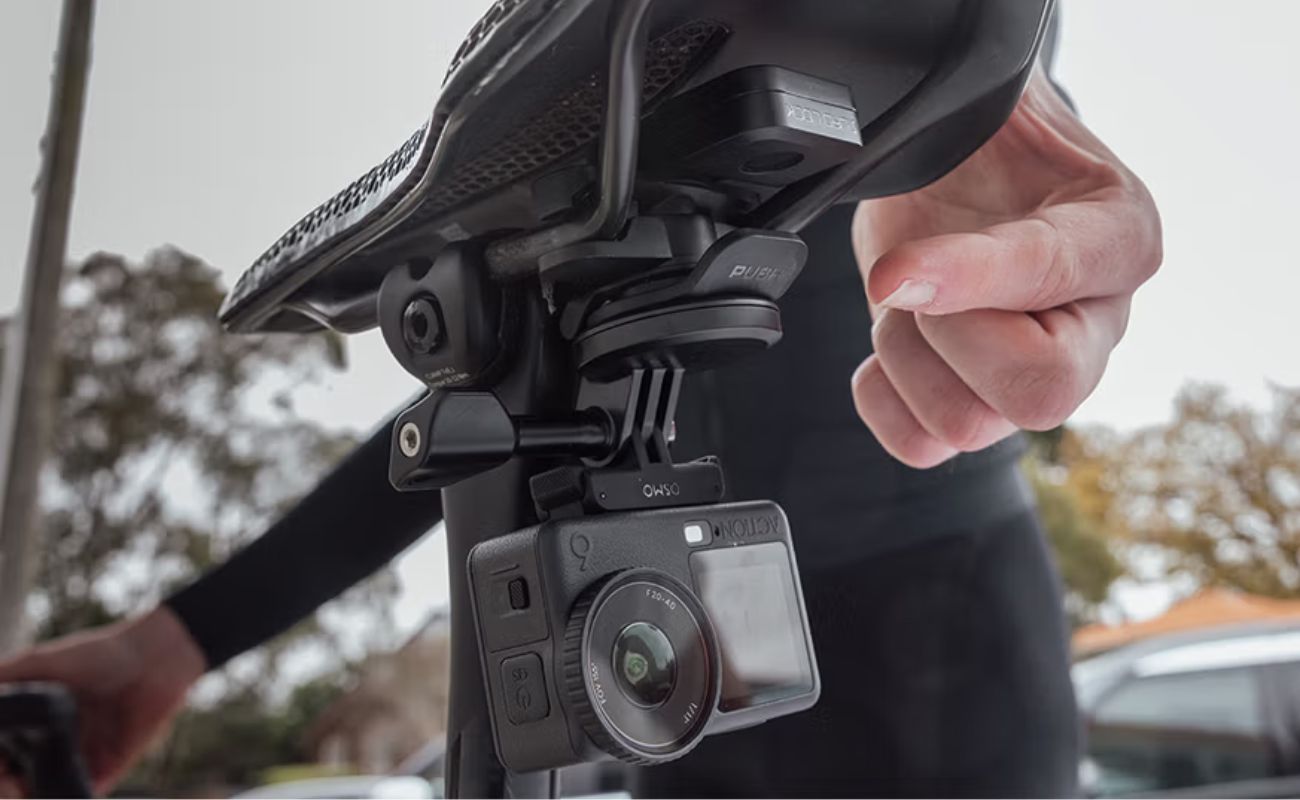

For an action camera setup, attach the Quad Lock 360™ Head – Action Camera directly, or combine the Quad Lock to Action Camera Adaptor with a Quad Lock 360™ Head – Short Lever.
Included in the box
- 1 × Quad Lock® Saddle Rail Adaptor
- 1 × Quad Lock 360™ Cover Cap
- 1 × Black M5 × 35mm countersunk head screw
- 1 × Allen (hex) key
Technical details
- Saddle fit: Suitable for standard 44mm saddle rails
- Rail contact: Rubber grip pads help prevent movement and reduce rattle
- Construction: Reinforced nylon, TPU and aluminium
- Size: 63 × 25 × 32mm (2.48 × 0.98 × 1.26 in)
- Weight: 32g (1.13 oz)
Accessory compatibility
| Accessory | Mounting requirements |
|---|---|
| Bike Alarm and Finder | Attaches directly to the Saddle Rail Adaptor. This is the recommended configuration. |
| Quad Lock to Action Camera Adaptor | Must be paired with a Quad Lock 360™ Head – Short Lever. |
| Quad Lock 360™ Head – Action Camera | Threads directly onto the adaptor without a lever head. |
Device size and weight
Any device fitted to the adaptor must measure less than 140mm (5.5 in) and weigh less than 250g (8.8 oz).

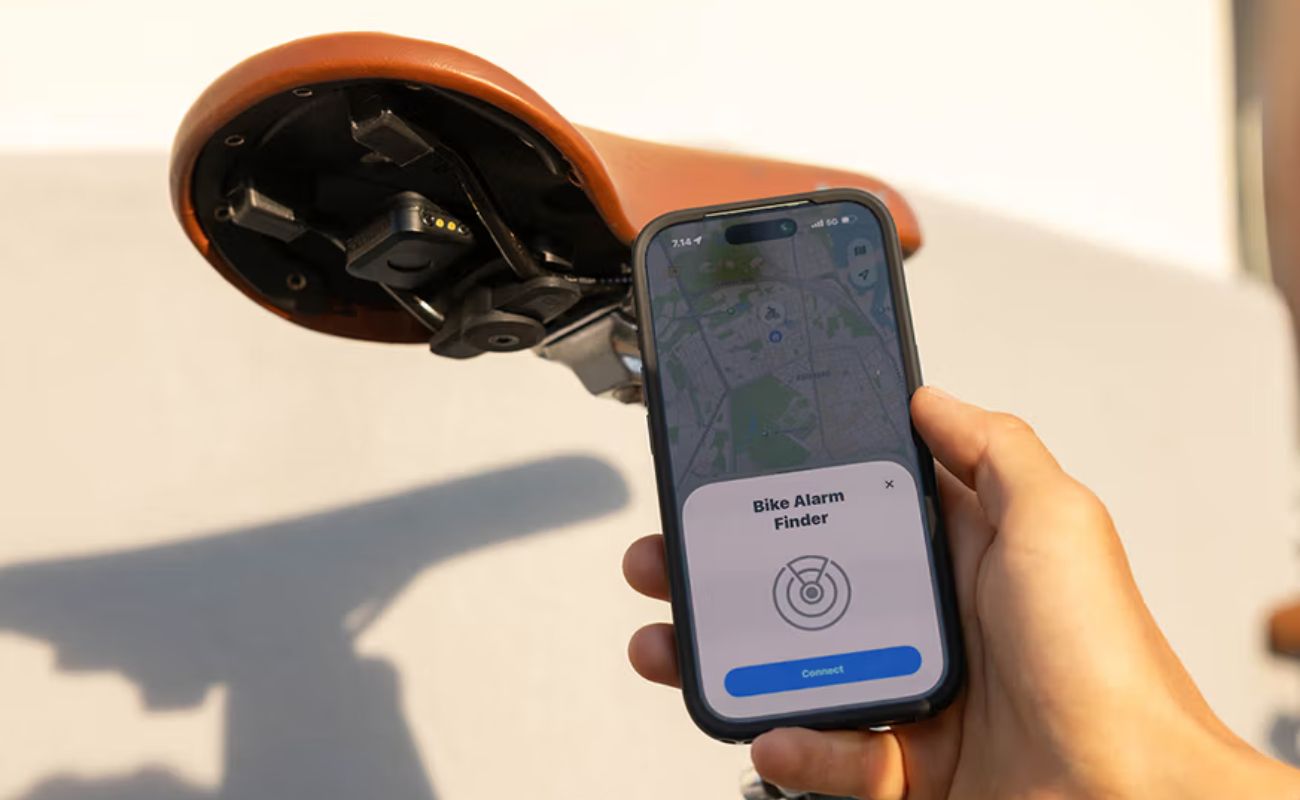

Fitting your Bike Alarm and Finder
Allow a minimum clearance of 3mm between the alarm and the underside of the saddle so the saddle does not muffle the alarm sound.
