| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 170 - 180 | 47 (Reach: 40) | Smaller |
| 175 - 190 | 51 (Reach: 44) | Medium |
| 180 - 200 | 56 | Large |
Description
Renowned premium long-distance tourer and adventure ebike. The Riese & Müller Delite5 Rohloff is the top-of-the-range model in the full-suspension, multi-purpose Delite5 range. Renowned for its exceptional comfort, stability and agile handling, it is equally at home as a leisurely all-day road tourer or a highly capable on- and off-road explorer. The premium Rohloff E-14 2.0 electronic gearing and Gates carbon belt drive make it particularly well suited to riders looking for outstanding performance, durability and low maintenance.

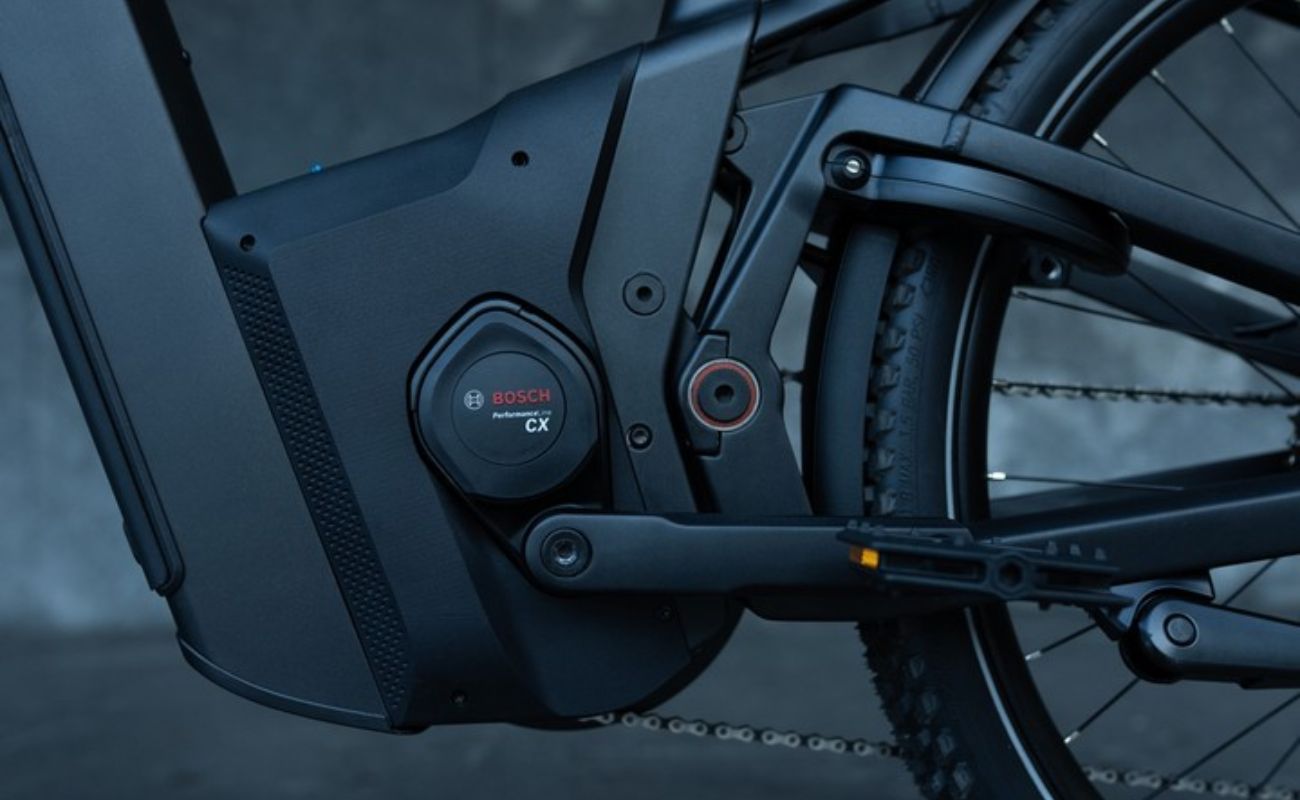

Powerful Gen 5 Bosch Performance Line CX with 800Wh battery. The Delite5 is built around the Bosch Smart System and powerful Gen 5 Bosch Performance Line CX motor, delivering strong, responsive assistance for steep climbs and demanding touring. Paired with the Bosch Flow app you can customise all your ride modes including power upgrades to 120Nm. A large 800Wh Bosch PowerTube battery is neatly integrated into the frame for excellent long-distance capability. For even greater range, the Delite5 is compatible with the optional Bosch PowerMore 250Wh Range Extender.
Fox full suspension for outstanding comfort and control. The Delite5 combines a Fox AWL 34 Air suspension fork with 120mm of travel and a Fox Float Rhythm rear shock, helping isolate the rider from rough roads, gravel and uneven trails. Its sophisticated full-suspension chassis delivers an agile yet composed ride, while its 160kg total carrying capacity adds excellent everyday versatility. A 100mm X-Fusion Manic dropper post comes standard, with a 125mm version available with the Offroad Kit.
Rohloff E-14 2.0 electronic gearing with Gates belt drive. The premium Rohloff E-14 2.0 electronic 14-speed hub provides an exceptionally wide 526% gear range and th eoptions for full auto and semi-auto gearing. Electronic shifting provides fast, precise gear changes along with useful functions such as multi-shifting and automatic downshifting when coming to a stop. Paired with the clean, quiet and low-maintenance Gates carbon belt drive, it is an outstanding drivetrain for high-mileage and all-terrain riding.
Powerful braking with optional ABS. The Delite5 comes equipped with Tektro TRP HD-EU835 hydraulic disc brakes for powerful, controlled braking under demanding riding conditions. For riders wanting an additional level of braking control, Magura MT C ABS is available as an option, adding anti-lock braking technology for greater stability during hard braking and on variable surfaces.
Fully equipped for day and night touring. The Delite5 Rohloff comes comprehensively equipped for commuting, touring and everyday adventures. Its premium Supernova M99 Mini Pro-25 headlight provides powerful illumination, while the Supernova TL3 Pro rear light features an integrated brake light. A Riese & Müller rear carrier provides up to 27kg of luggage capacity, with an optional front carrier adding another 5kg. Curana mudguards, a sturdy Ursus kickstand and an ABUS Granit XPlus lock with 130cm Adaptor Chain complete this exceptionally well-equipped touring eBike.
Contact us to order. See the Delite5 Vario ebike if you prefer a more economical belt driven model or the Superdelite5 if you prefer a built-in dual battery configuration.
| System | Bosch Smart System |
|---|---|
| Motor | Bosch Performance Line CX Gen 5, 85–120Nm |
| Battery |
Bosch PowerTube 800Wh
Opt: Powermore 250Wh Extender |
| Charger | Bosch 4A (Smart) |
| Display | Bosch Kiox 500 |
Specifications
| Frame | Riese & Müller Delite5 |
|---|---|
| Sizes |
M: 51cm – Reach 40 (170–180cm); L: XL: 51cm – Reach 44 (175–190cm); 56cm (180–200cm) |
| Colours |
Amber; Stone Grey
|
| Suspension |
Fox AWL 34 Air, 120mm
|
| Rear Shock |
Fox Float Rhythm SV 165x45
|
| Wheel Size | 27.5" |
| Tyres | Schwalbe Super Moto-X 62-584 Reflex; Offroad: Schwalbe Hybrid 365 Johnny Watts Plus 60-584 Reflex* |
| Shifting System | Rohloff Speedhub E14-A12 electronic shifting |
| Shifter | Rohloff E14 electronic shifter |
| Chain |
n.a (Gates Carbon Belt Drive)
|
| Brakes |
Tektro TRP HD-EU835 disc brakes; Opt: Magura MT C ABS*
|
| Handlebar |
Satori R&M Custom, 25.4mm, aluminium
|
| Saddle |
Ergon ST10 Gel
|
| Seatpost | X-Fusion Manic 100mm dropper; Offroad: X-Fusion Manic 125mm* |
| Carry Capacity | 160kg |
| Max Rider Weight | 120kg |
| Bike Weight | 32kg |
| Lights Front |
Supernova M99 Mini Pro-25
|
|---|---|
| Lights Rear |
Supernova TL3 Pro with integrated brake light
|
| Lock | ABUS Granit XPlus with ABUS Adaptor Chain 2.0, 130cm |
| Carrier Rack | Riese & Müller rear carrier, 27kg capacity |
| Mudguards |
Curana Orbit 70
|
| Kickstand |
Ursus R97 IC Invisible Connect
|
