You've loaded the bikes, driven a couple of hours to the start of the Brisbane Valley Rail Trail, and you're ready for a great day out — then your e-bike won't turn on. It's frustrating, but the good news is that an e-bike won't turn on for only a handful of reasons, and most of them you can fix yourself in a few minutes without any tools. In this guide, Alexander from our service centre walks through the exact checks we run on a Bosch Smart System bike when it won't power up. At Electric Bikes Brisbane, we've been Brisbane's local Bosch-accredited e-bike specialist since 2013, and this is the same process our technicians use every day.
Watch the Video Walkthrough
Alexander demonstrates every step below on our Focus Aventura2 demo bike. Watch the full walkthrough first, then follow along with the written steps.
Before You Leave Home — the Two Things You Must Not Forget
Before we get to the troubleshooting, two quick reminders that save more trailhead headaches than anything else.
1. Take your key. If the battery isn't seated correctly, you can't do a thing without the key — and yes, we've seen plenty of people arrive at the trail without it. Pop it in your pack or your car console so it's always with the bike.
2. Don't forget the battery. It sounds obvious, but it happens. Make sure the battery is actually on the bike, installed the right way around, fully seated and locked into place. It's entirely possible to push a battery in only part of the way — and a half-seated battery won't power the bike.
Step-by-Step Troubleshooting — Bosch Smart System E-Bikes
Work through these four checks in order. They cover the vast majority of "won't turn on" cases we see on Bosch Smart System e-bikes.

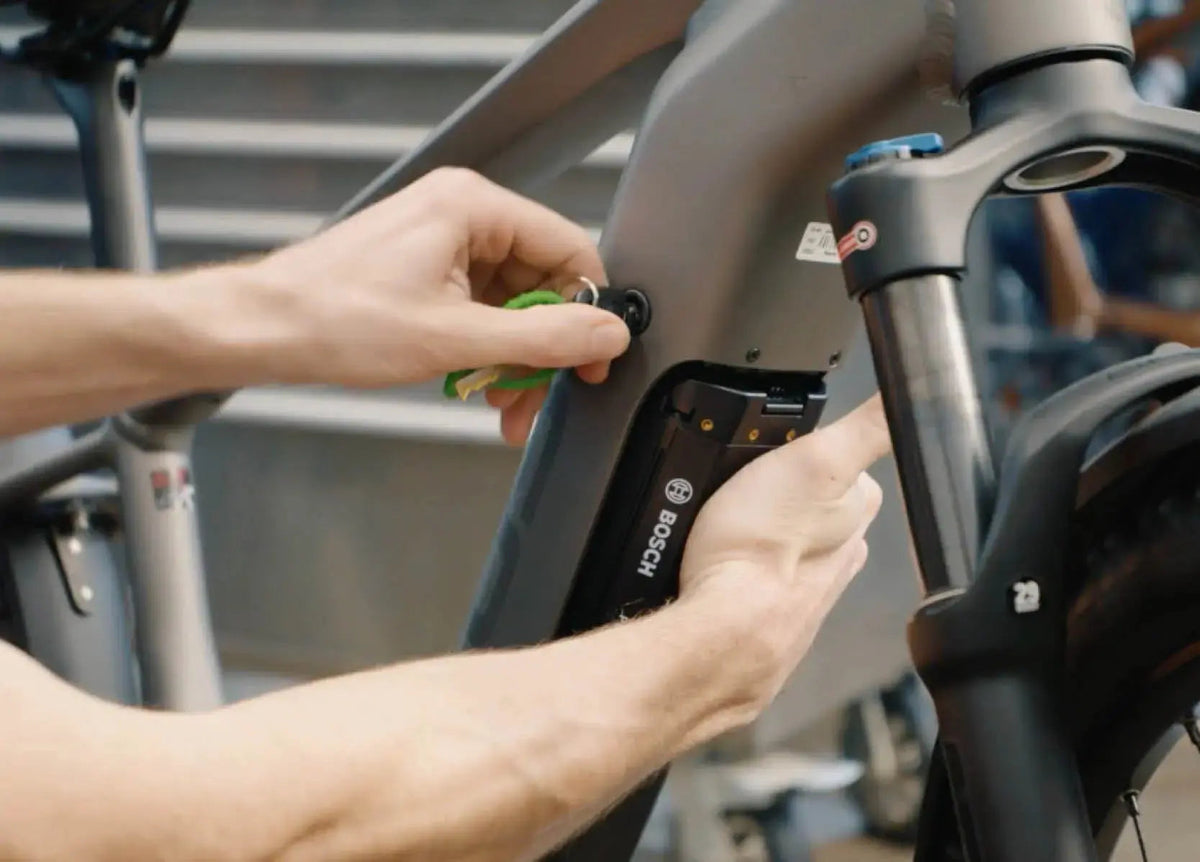

Step 1 — Check the Battery Is Seated Correctly
Start by removing the battery cover if your bike has one — on some bikes it's part of the battery, on others it's separate. A quick tip to get the battery in the right way around: the release catch always sits at the same end as the key and faces away from the bike.
Install the battery gently — it's not a wrestling match, and all of these components should go in without force. Find the bottom of the battery tray first so it's sitting nicely, then use the key to lock it down. You'll feel two distinct clicks: the first as the secondary catch engages, and the second as the key comes over. Remove the key and refit the cover. If you didn't get both clicks, the battery isn't fully locked in.
Step 2 — Check the Cable Connections
This is the most common cause of a non-start. On Smart System bikes the cables are individually replaceable, which is great news if one ever fails — but it also means each connection can occasionally work itself loose. Most bikes that come to us not turning on simply have a cable that has unplugged itself.
To check a connection, pull the plug out fully — grip the plug itself, not the cable. Each plug has a small white line on it that shows which way it goes in, and there's a matching white line on the receiving port. Line the white marks up, then push the plug in gently — never force it. On that last little bit you'll feel a firm pop as it seats. Check the connection into the system controller, as well as both connections at the back of your display mount.
Step 3 — Check the Display Is Seated Correctly
If the display isn't seated properly on its mount, it can stop the bike from starting. Make sure the Kiox 300 (or your display) is clicked firmly and squarely onto the mount. If you've been transporting the bike, a little dust or dirt on the contact points is normal — give them a quick wipe before you reinstall the display.
Step 4 — Wake the System Controller Using the Battery Power Button
Inside the system controller there's a small internal battery whose job is to tell the whole unit, "wake up, it's time to go." If the bike has been in storage for a while, that tiny battery can go flat and can't send the wake-up signal — so the bike seems dead even though the main battery is charged.
There's an easy backup. Every Bosch battery has a power button directly on it. On the Powertube in the Focus Aventura2, it's tucked into the bottom corner of the battery. Reach in, press that button, and it wakes the system directly instead of relying on the system controller. Once the bike is running, the system controller's internal battery charges itself back up.
Tips for Transporting Your E-Bike
Many riders remove the display and battery for transport — and for a lot of bike racks and car setups, that's exactly what we recommend. It protects the components and lightens the bike. When you arrive, refit everything carefully: wipe any dust or road grime off the contact points first, then reinstall the display and the battery, confirm the battery is locked in with two clicks and the display is seated square, and power on. Then have fun — time to ride.
Still Not Working? Book Into Our Service Centre
If you've worked through all four steps and your e-bike still won't turn on, the issue may need professional diagnosis. Our service centre in Milton, Brisbane is a Bosch-accredited service centre, so your bike is in expert hands. Booking online is quick and easy — grab a spot and we'll get you rolling again.
Frequently Asked Questions — E-Bike Won't Turn On
Why won't my Bosch e-bike turn on even though the battery is charged?
Even with a fully charged battery, a Bosch Smart System e-bike won't turn on if a cable connection has come loose (the most common cause), if the display isn't fully seated on its mount, if the small internal battery inside the system controller has gone flat, or if dirty contacts are interrupting the signal. Work through the connections at the system controller and display mount, reseat the display, and if the bike has been stored for a while, press the power button directly on the battery to wake the system.
What does the white line on Bosch Smart System cables mean?
The white line is an alignment marker. Each Smart System cable plug has a white line on it, and there is a matching white line on the receiving port. The two lines must line up before you push the plug in, which guarantees the plug goes in the correct orientation. When aligned, the plug slides in easily and seats with a firm pop — never force it if the lines aren't matched up.
How do I use the power button on a Bosch Powertube battery?
Every Bosch battery has a power button on the battery itself. On an integrated Powertube — such as the one in the Focus Aventura2 — the button is in the bottom corner of the battery. Use it when the system controller's small internal battery has gone flat (typically after a long period without riding) and the bike won't wake up normally. Pressing the button wakes the system directly, and once the bike is running the system controller's internal battery recharges on its own.
My e-bike worked fine yesterday. Why won't it turn on today?
The most likely cause is a cable that vibrated loose during transport or storage. Check the plug connections at the system controller and at the back of the display mount, confirm the battery is seated with two clicks, and make sure the display is locked squarely onto its mount with clean contacts. In most cases this is resolved without any tools in under five minutes.
Can I transport my e-bike with the battery and display removed?
Yes — and for many transport methods it's actually recommended, because it protects the components and reduces weight on the rack. Before you ride, wipe the contact points clean, reinstall the battery until you feel both clicks confirming it's locked in, seat the display firmly onto its mount, and then power on.
