| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 150 - 166 | 43 | S |
| 160 - 186 | 48 | M |
| 174 - 191 | 53 | L |
| 187 - 196 | 58 | XL |

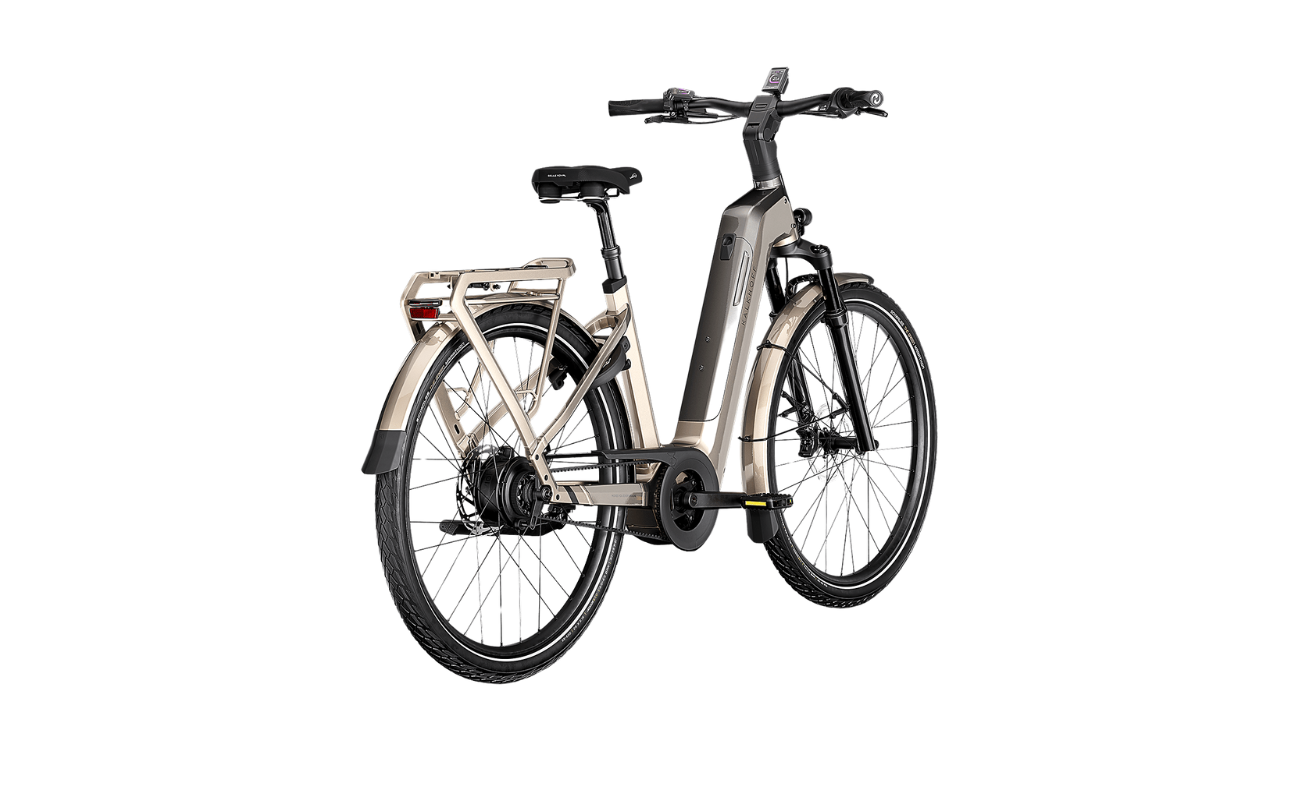

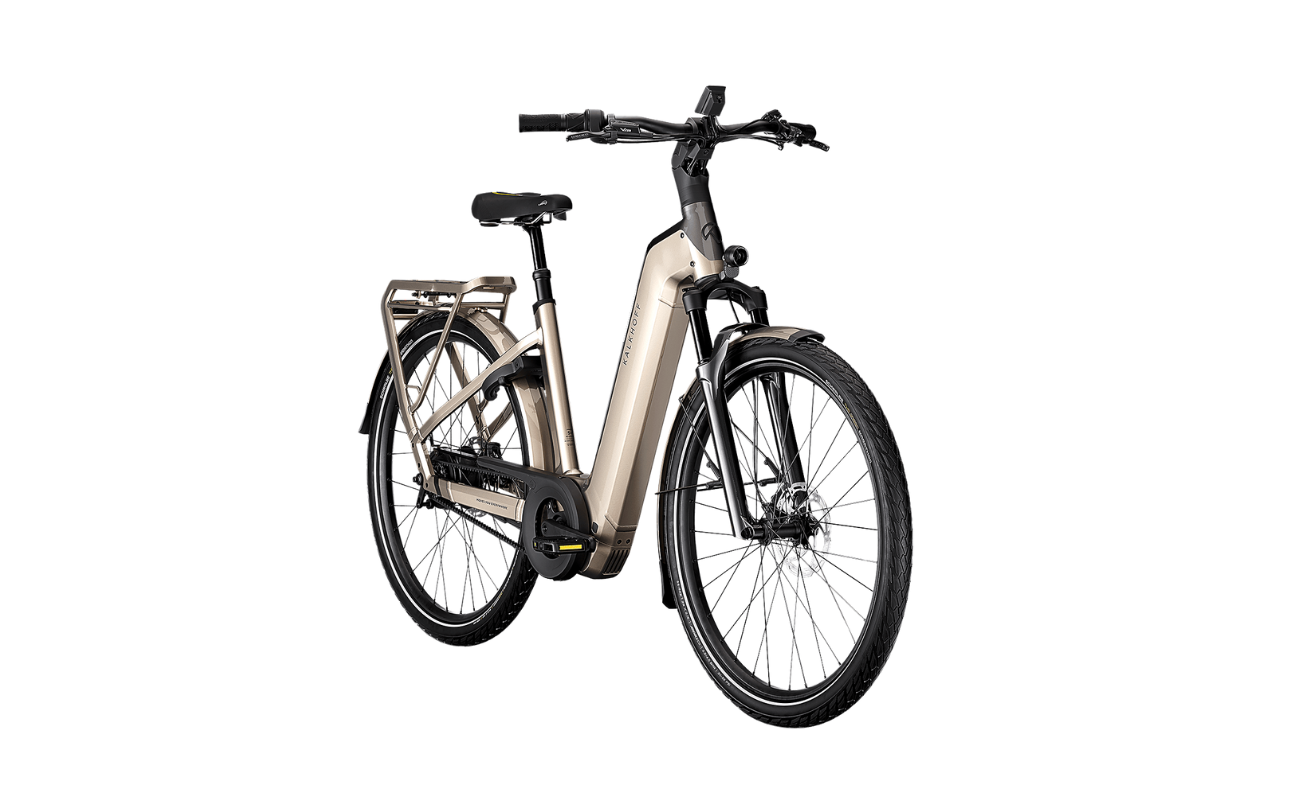

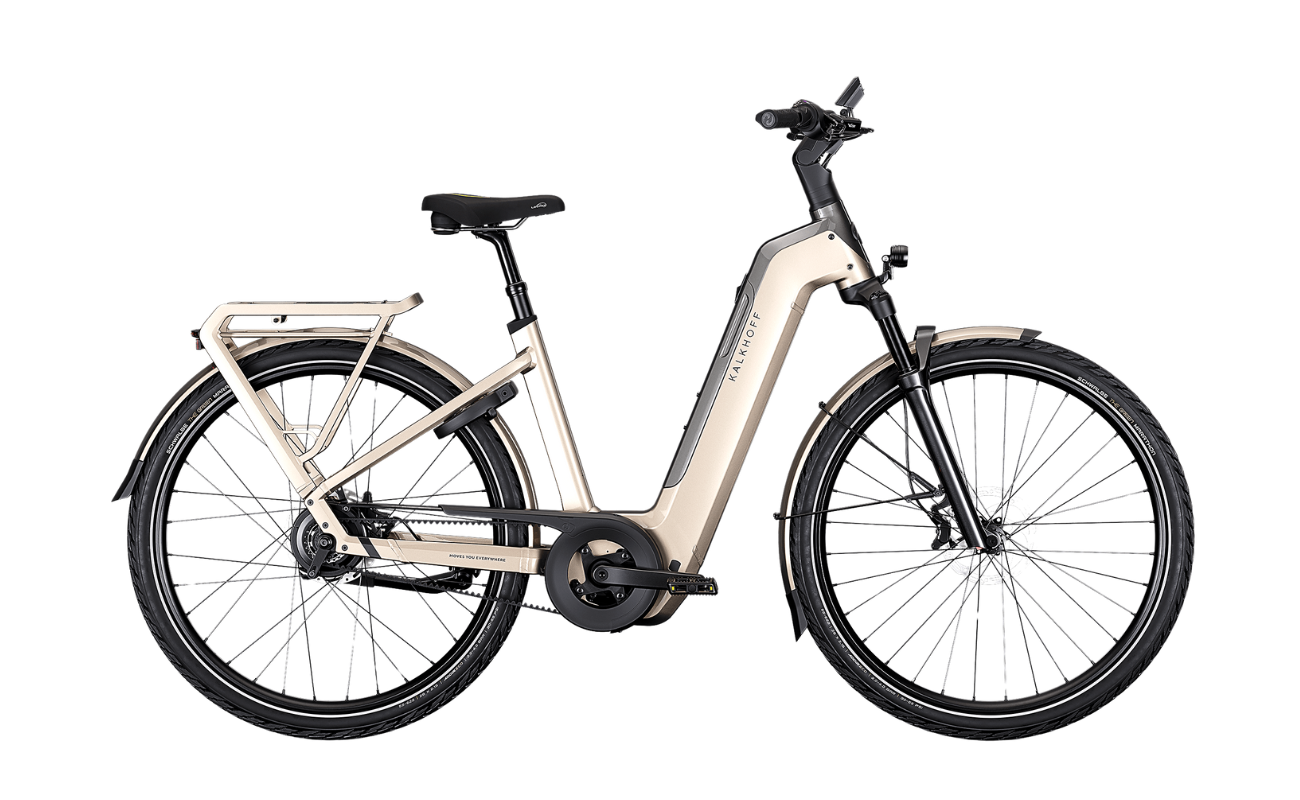

Kalkhoff K26 Image 5+ Advance Wave EBike, Silver - Preorder
Classy, modern, ultra strong, belt drive commuter. The Kalkhoff K26 Image 5+ Advance Wave eBike delivers premium comfort with powerful, modern e-bike tech. It has an easy step-through Wave frame engineered to carry up to 180kg and its premium components deliver supreme comfort, ease of use and long-term German-made reliability.
Powered by Bosch Performance PX motor with 800Wh battery. The Image 5+ is powered by the new Bosch Performance Line PX Smart System motor with up to 90Nm torque and it is equipped with a centrally mounted smart Bosch Kiox 300 colour display. It also comes with a long-range 800Wh battery to provide strong assistance and outstanding range for hilly commutes or longer rides.
Belt drive with Enviolo. Simple to use and tough with 180kg rating. The Image 5+ Advance features a reliable Enviolo Trekking internal gearing system paired with the Gates carbon belt drive allowing easy shifting, low maintenance living and plenty of gear range for hilly terrain. Stopping power comes from hydraulic disc brakes providing confident, controlled braking on all rides—even when carrying the full 180kg permissible load.
Upright, ultra comfortable, stable and smooth. The bike rolls on 29" wheels with the tough, puncture-resistant Schwalbe Marathon Green tyres which also tick the sustainability box being made of 80% recycled rubber. The lowstep is designed for a comfortable, stable upright riding position which you can adjust with the Cockpit 2.0 stem. With the SR Suntour Mobie34 suspension fork with 100mm travel, suspension dropper seatpost, and a comfortable Selle Royal Lookin Evo saddle, it delivers a smooth, enjoyable ride for commuting or cruising.
Fully equipped with quality lights, a heavy duty rack and lock. The Image 5+ ebike is built for everyday practicality. It comes with a MIK HD rear carrier rack (rated to 27kg) for a basket or panniers and a built-in wheel lock for security. Plus it has the premium Supernova Mini 2 front light and Trelock COB Line rear light, which also has a brake light.
With its all-round hassle-free equipment and exceptional power and quality, you will constantly have a smile on your face as you go about your daily business.
Contact us to preorder. Arriving early 2026. Also available in Diamondblack colour.
Delivery interstate and regionally to certain locations is available, and extra charges may apply depending on location. Discount vouchers are not applicable whilst on sale.
| System | Bosch Smart System |
|---|---|
| Motor | Bosch Performance Line PX Smart System, 36 V / 250 W |
| Battery |
Bosch PowerTube Li-Ion (800 Wh) |
| Display | Bosch Kiox 300 colour display with walk assist |
| Charger | Bosch 4A (Smart) |
| Frame | Integrale 0.6, aluminium, wave |
|---|---|
| Sizes |
S (43cm) M (48cm) L (53cm) XL (58cm)
|
| Colour | adamantsilver glossy; diamondblack glossy |
| Fork | SR Suntour Mobie34, 100mm |
| Wheel Size | 29" |
| Gearing |
Enviolo Trekking |
| Gear Ratio |
front: 50, rear: 22 |
| Chain |
Gates Carbondrive CDX |
| Brakes | hydraulic disc |
| Stem | Cockpit 2.0, adjustable, 65mm |
| Saddle |
Selle Royal Lookin Evo Stracciatella |
| Seatpost | Aluminium, suspension, lowerable |
| Grips | Ergon GC10 |
| Pedals | Comfort, anti-slip |
| Permissible Weight | 180kg |
| Warranty | Frame: 10 years Motor / Battery: 2 years |
| Headlight |
Supernova Mini 2, LED |
|---|---|
| Backlight | Trelock COB Line, with brake light, LED |
| Lock | Wheel lock |
| Chainguard | Yes |
| Carrier Rack |
MIK HD, 27kg
|
| Mudguards | Yes |
| Kickstand |
Yes
|
Classy, modern, ultra strong, belt drive commuter. The Kalkhoff K26 Image 5+ Advance Wave eBike delivers premium comfort with powerful, modern e-bike tech. It has an easy step-through Wave frame engineered to carry up to 180kg and its premium components deliver supreme comfort, ease of use and long-term German-made reliability.
Powered by Bosch Performance PX motor with 800Wh battery. The Image 5+ is powered by the new Bosch Performance Line PX Smart System motor with up to 90Nm torque and it is equipped with a centrally mounted smart Bosch Kiox 300 colour display. It also comes with a long-range 800Wh battery to provide strong assistance and outstanding range for hilly commutes or longer rides.
Belt drive with Enviolo. Simple to use and tough with 180kg rating. The Image 5+ Advance features a reliable Enviolo Trekking internal gearing system paired with the Gates carbon belt drive allowing easy shifting, low maintenance living and plenty of gear range for hilly terrain. Stopping power comes from hydraulic disc brakes providing confident, controlled braking on all rides—even when carrying the full 180kg permissible load.
Upright, ultra comfortable, stable and smooth. The bike rolls on 29" wheels with the tough, puncture-resistant Schwalbe Marathon Green tyres which also tick the sustainability box being made of 80% recycled rubber. The lowstep is designed for a comfortable, stable upright riding position which you can adjust with the Cockpit 2.0 stem. With the SR Suntour Mobie34 suspension fork with 100mm travel, suspension dropper seatpost, and a comfortable Selle Royal Lookin Evo saddle, it delivers a smooth, enjoyable ride for commuting or cruising.
Fully equipped with quality lights, a heavy duty rack and lock. The Image 5+ ebike is built for everyday practicality. It comes with a MIK HD rear carrier rack (rated to 27kg) for a basket or panniers and a built-in wheel lock for security. Plus it has the premium Supernova Mini 2 front light and Trelock COB Line rear light, which also has a brake light.
With its all-round hassle-free equipment and exceptional power and quality, you will constantly have a smile on your face as you go about your daily business.

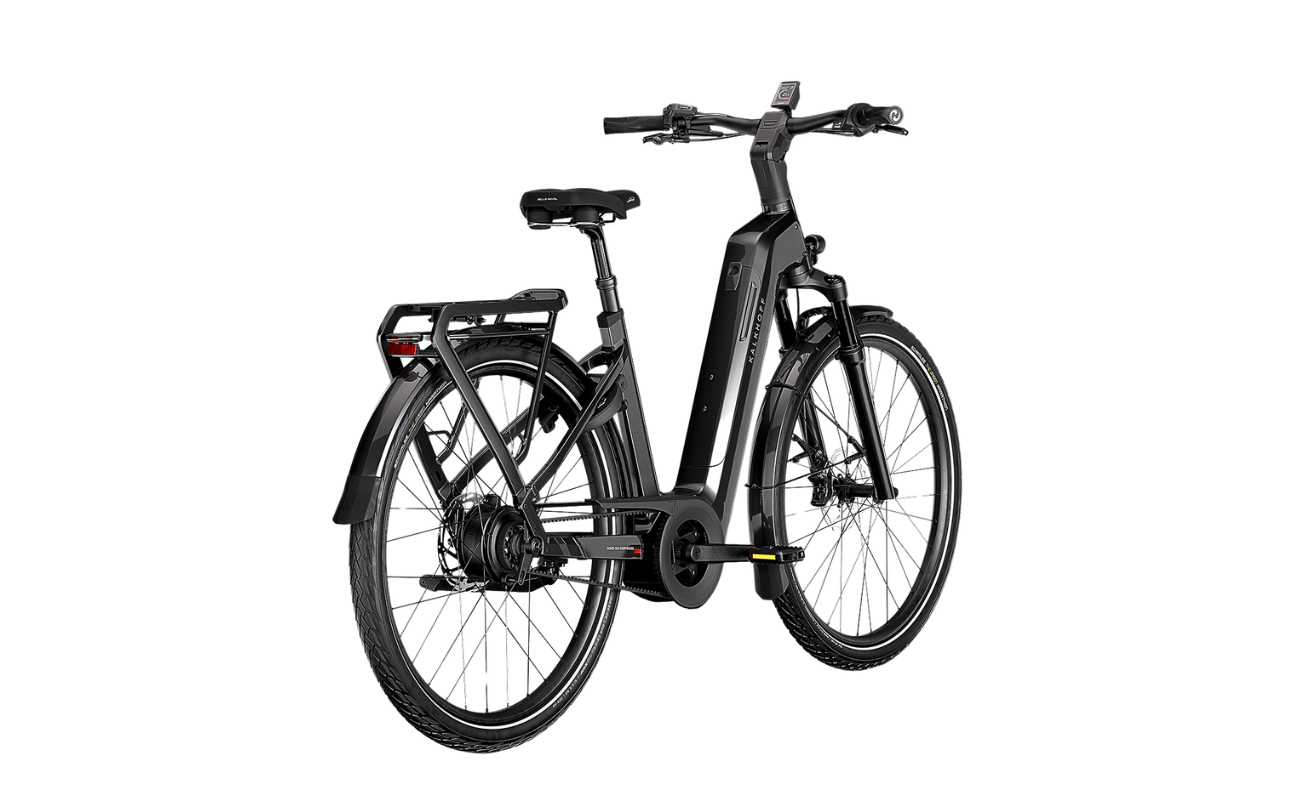

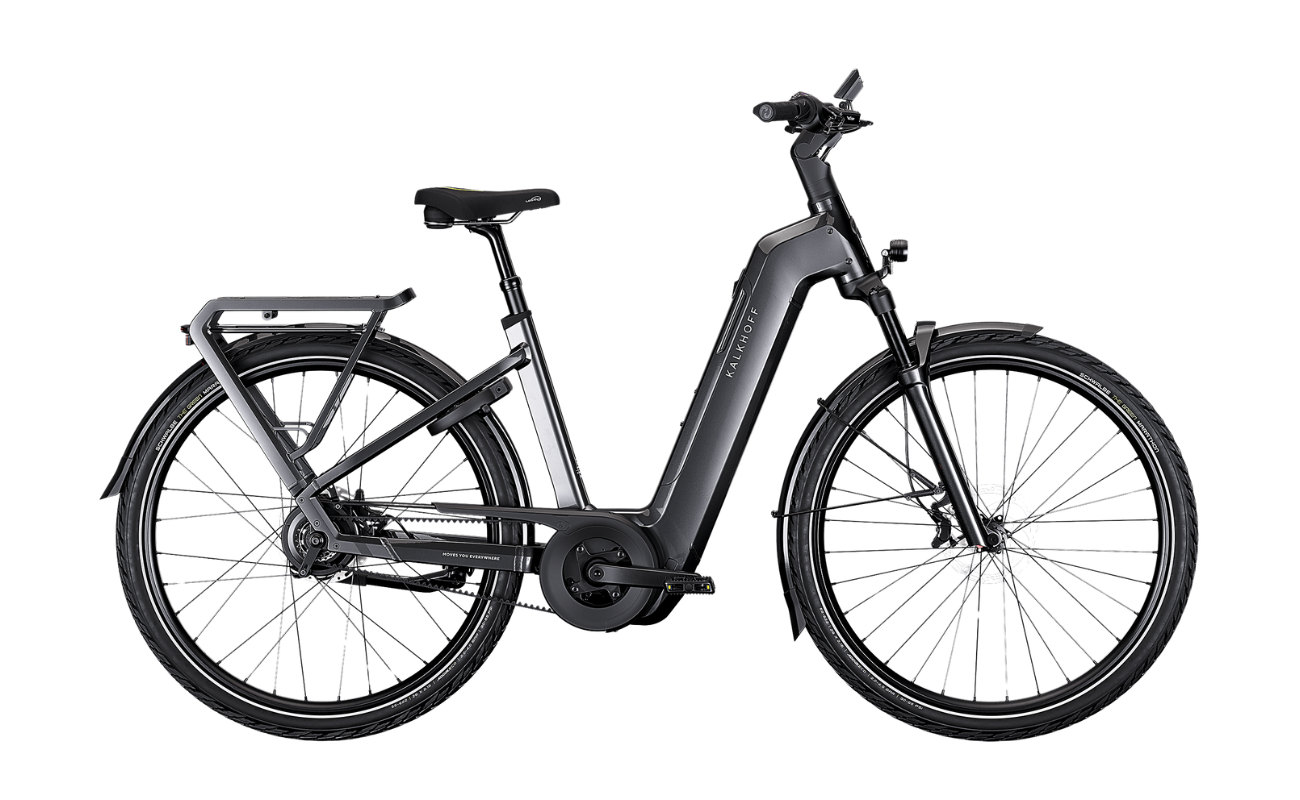

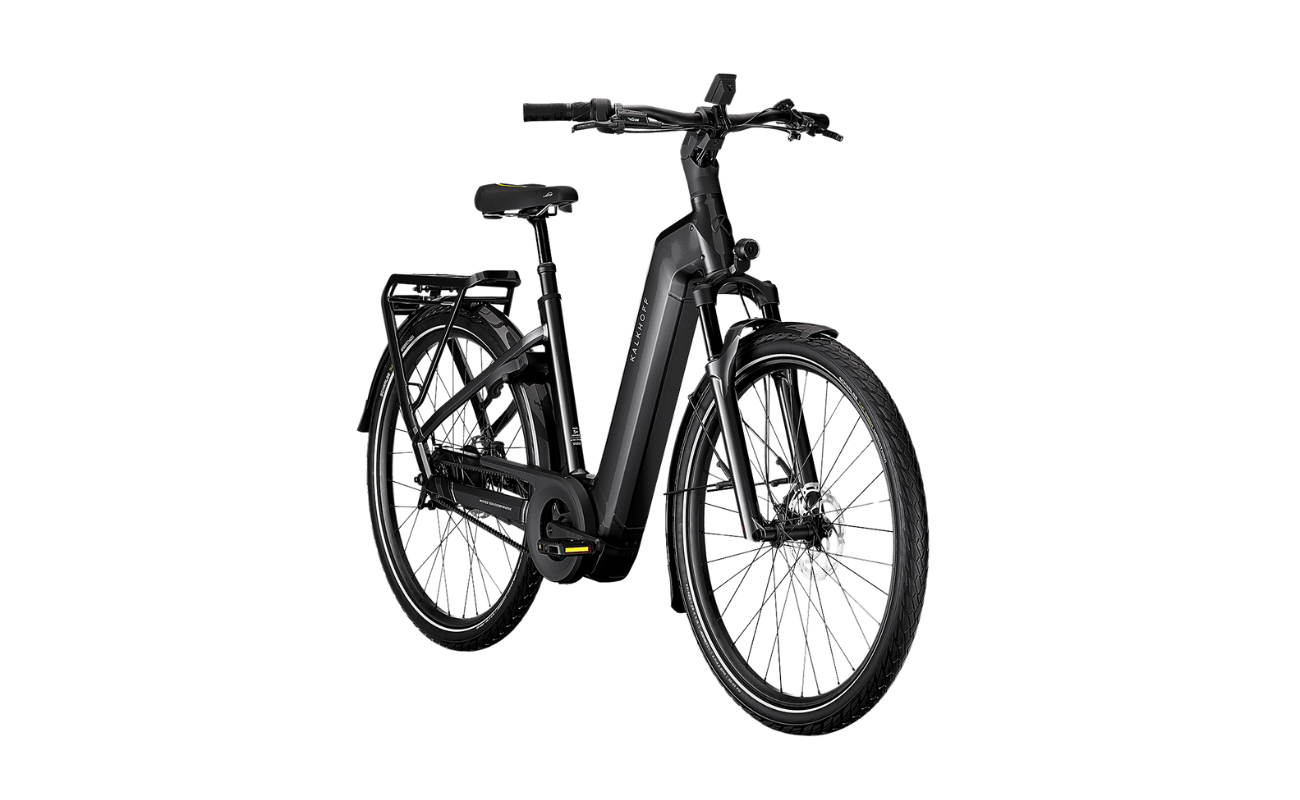

Contact us to preorder. Arriving early 2026. Also available in Diamondblack colour.
Delivery interstate and regionally to certain locations is available, and extra charges may apply depending on location. Discount vouchers are not applicable whilst on sale.
