| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 150 - 175 | 40 | S |
| 160 - 185 | 40.5 | M |
| 170 - 195 | 41 | L |
| 180 - 205 | 42 | XL |
Description

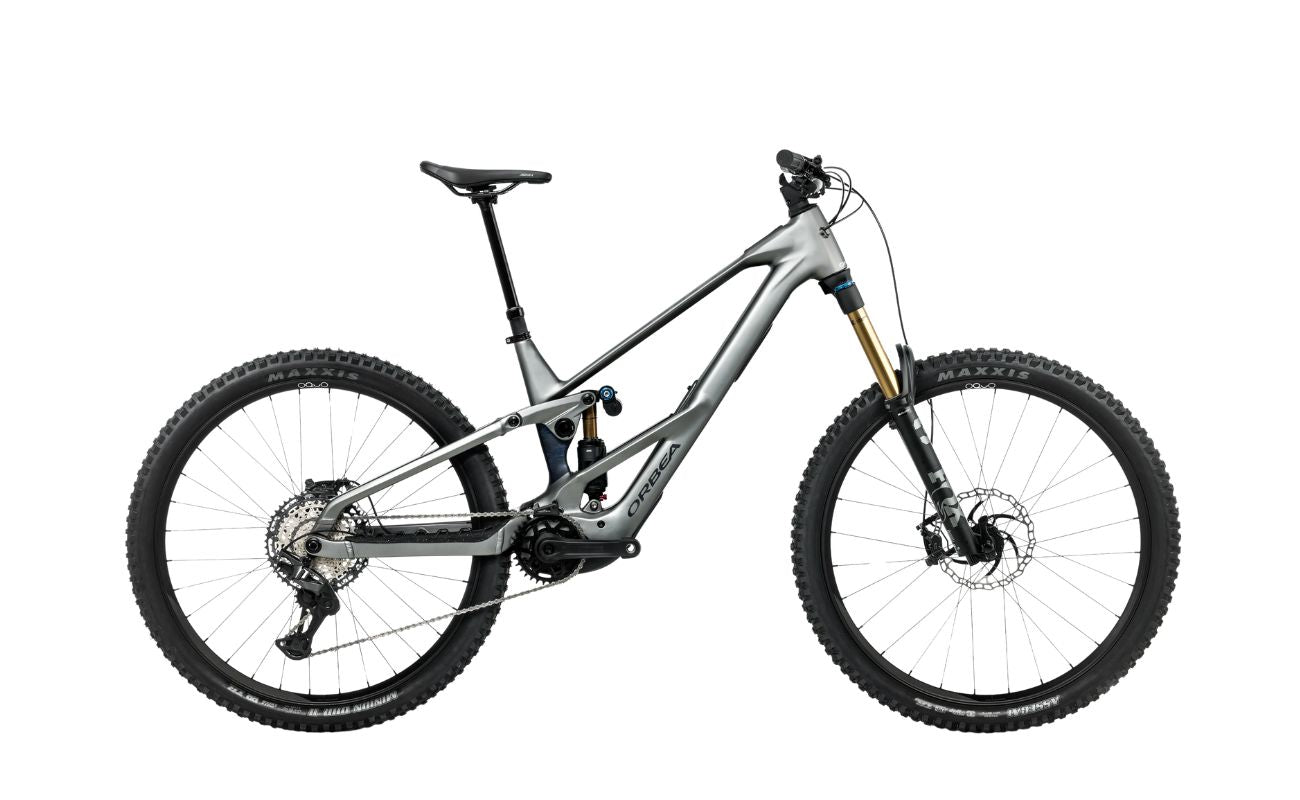

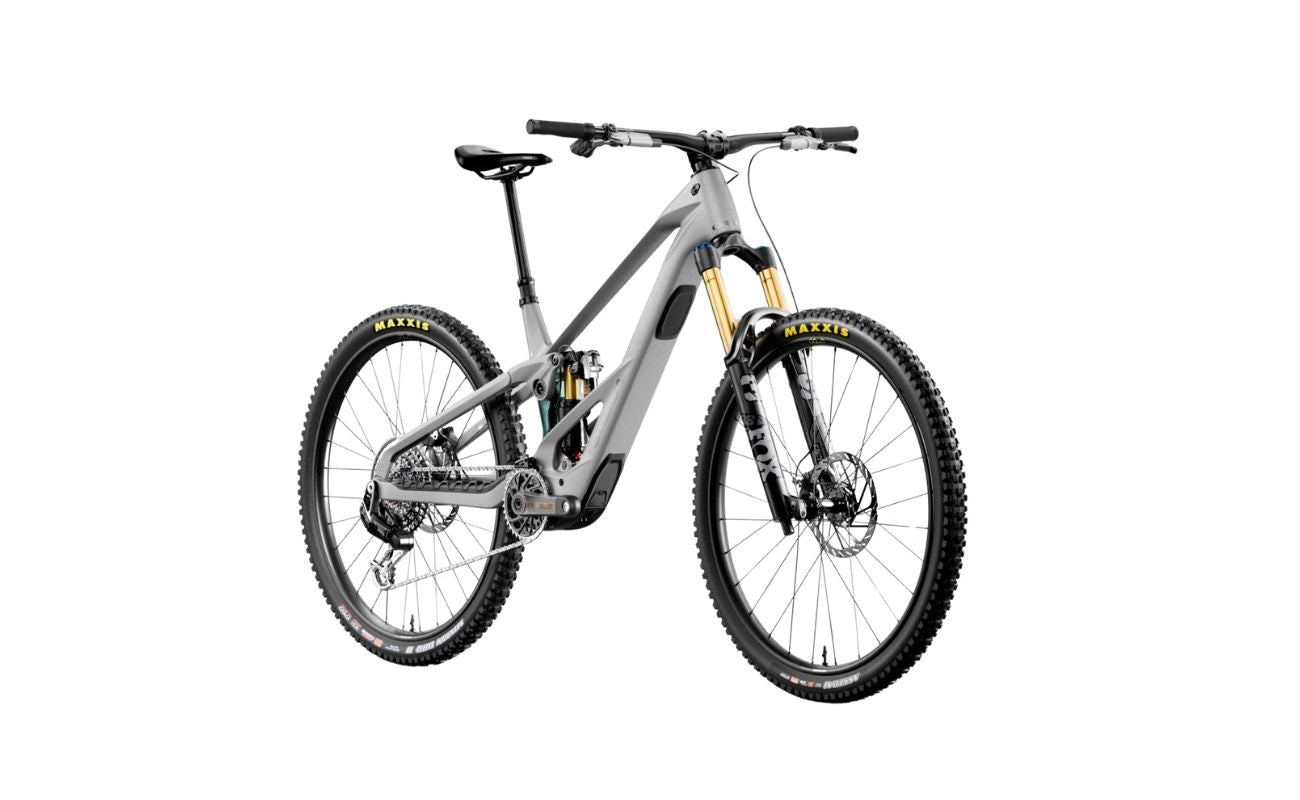

Premium race-ready performance inspired by Orbea's World Cup-winning gravity platform. The Orbea Wild LT H-Team 2027 combines the powerful DJI Avinox M2S drive system with an advanced high polished alloy frame and the same race-proven suspension philosophy that underpins the Rallon. Designed for aggressive trail and enduro riding, it delivers exceptional climbing efficiency, high-speed stability and confidence on the most demanding terrain. The H-Team is the top alloy model in the range and features the same premium Fox 38 Factory suspension package as on the carbon M-TEAM version.
170mm of Fox 38 Factory suspension with Shimano XT drivetrain. Built to handle big hits and fast descents, the Wild LT H-Team features the crisp, fast shifting Shimano XT 12-speed gearing, a Fox 38 Float Factory fork with 170mm of travel, Kashima coating and the latest Grip X2 damper. A custom-tuned Fox Float X2 Factory Trunnion rear shock delivers 170mm of highly adjustable rear travel, providing outstanding traction, support and composure through rock gardens, steep descents and rough trail conditions.
Avinox M2S power with an 800Wh battery for all-day adventures. The Wild LT H-Team is powered by the advanced Avinox M2S drive system, delivering up to 130Nm of torque and responsive assistance exactly when you need it. Like all Orbea Wild LT models it has Orbea's custom RS tune as well as the Avinox app options. Combined with a high-capacity 800Wh battery, it offers impressive range for longer rides.
Contact us to order and for assistance with customosation preferences. See the Wild M- TEAM if you prefer the carbon frame with RS Ecosystem, or the Wild LT H10 if you want a more affordable Wild LT, with Fox 38 Performance suspension.
| System | Avinox |
|---|---|

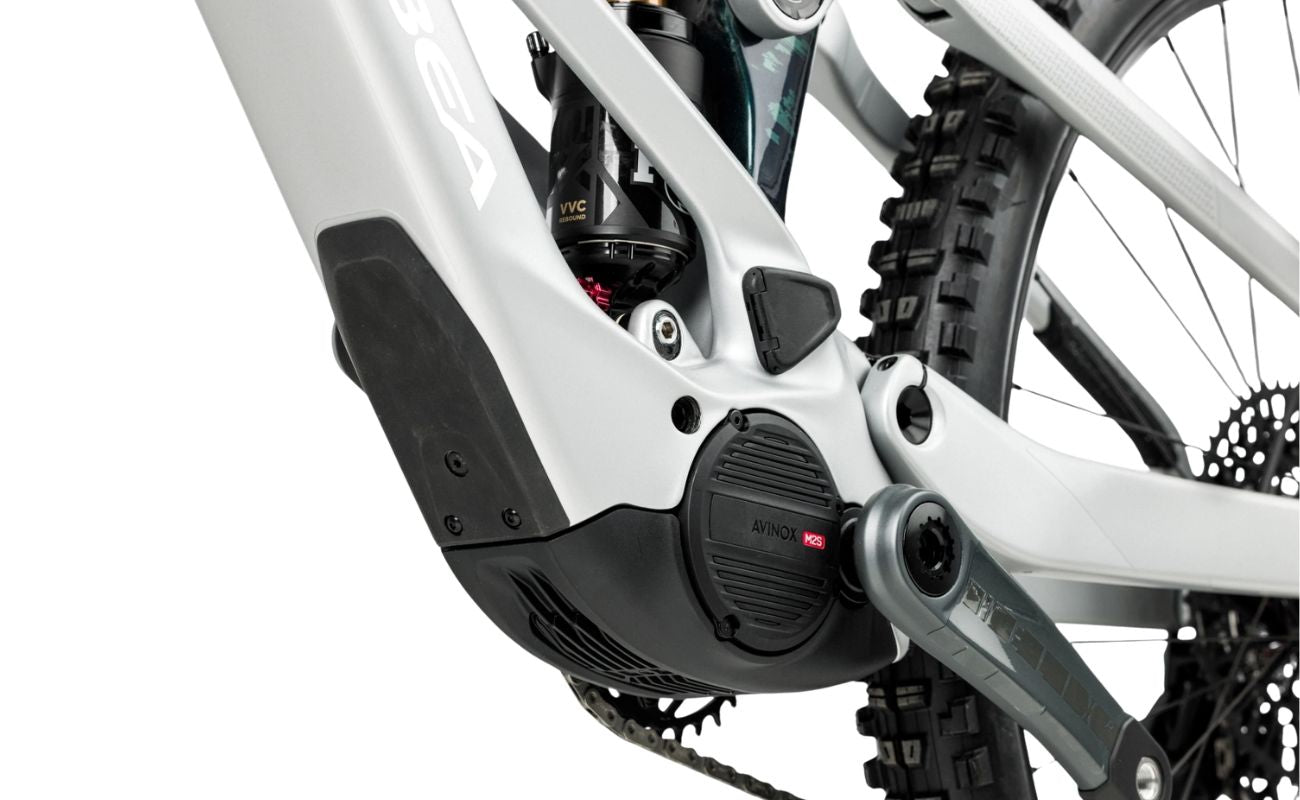

| Motor | Avinox M2S, 250W - 750W peak |
| Torque | 130Nm - 150Nm |
| Battery | Avinox 800Wh |
| Display |
Avinox DP100 |
| Remote | Avinox BC100 |
| Charger | Avinox Charger 4A Opt: Charger 12A |
| Certified | EN15194 |
Specifications
| Frame |

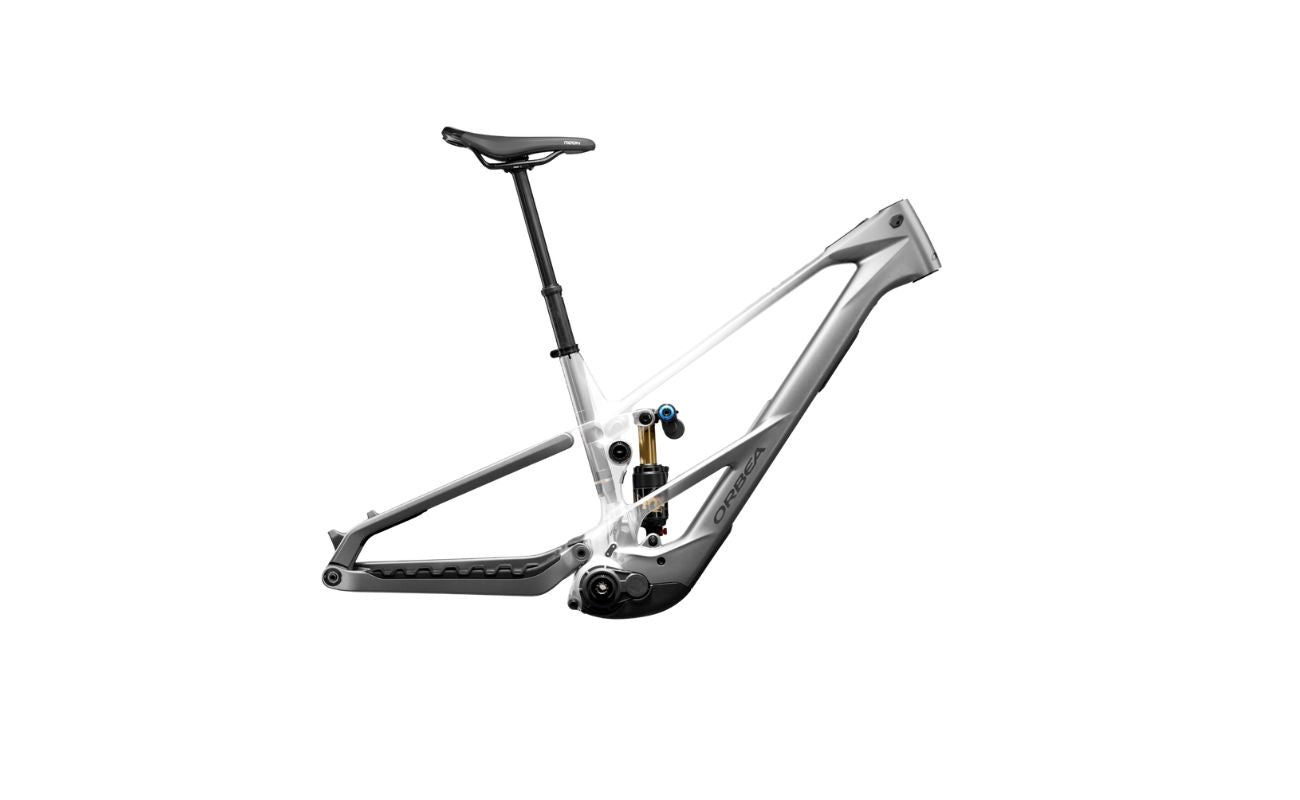

Orbea Wild Hydro, 29" wheels, Concentric Boost 12x148 |
|---|---|
| Sizes | S 40cm M 40.5cm, L 41cm, XL 42cm |

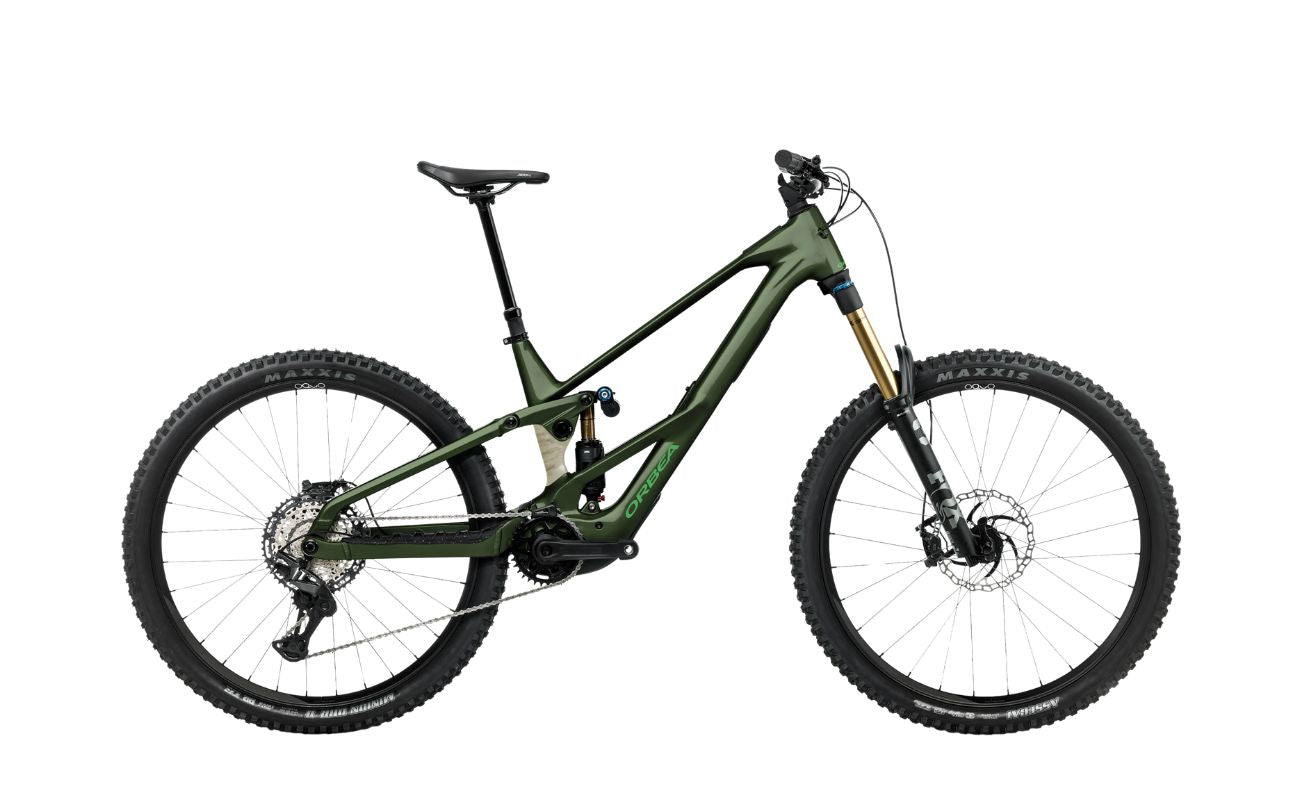

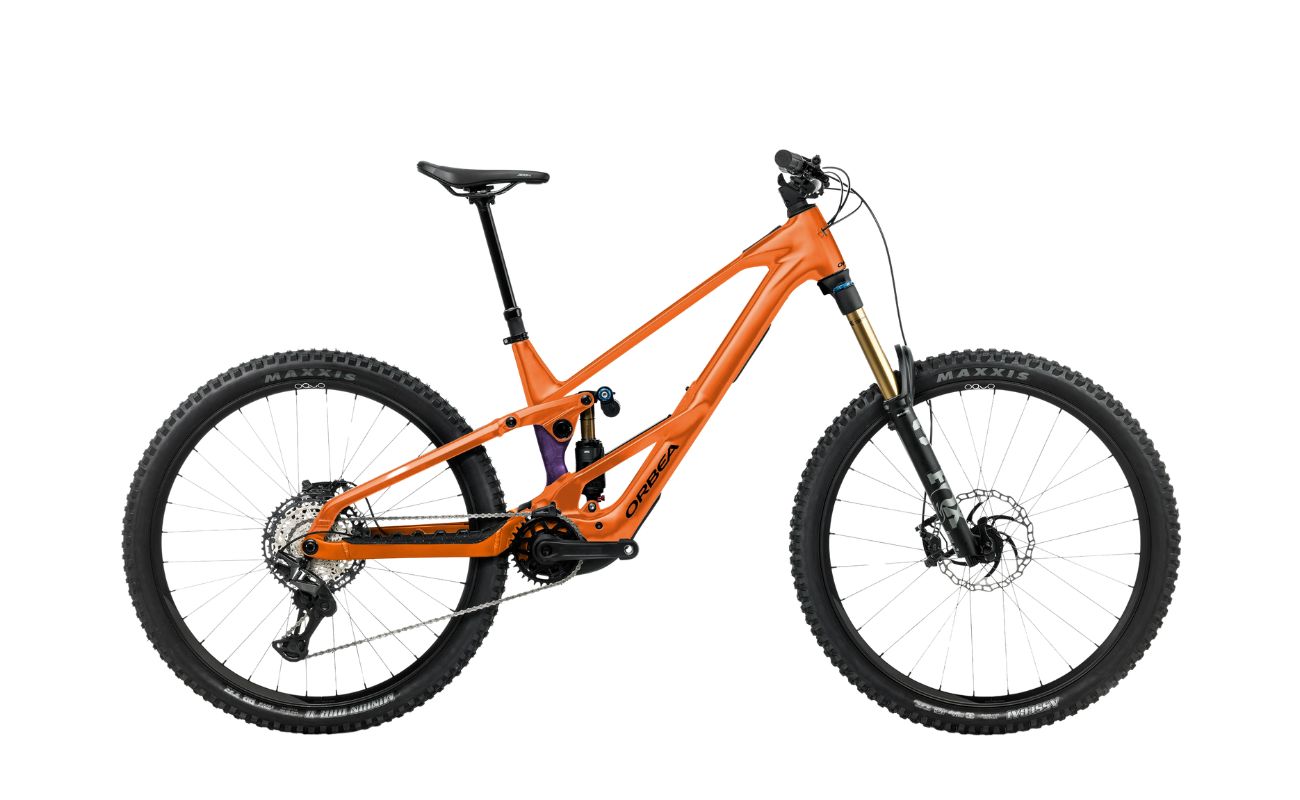

| Standard Colours | Titan Grey - Noctiluca C View (Matt), Racing Green - White Cream (Gloss), Wild Orange -Royal Plum (Gloss) |
| Fork |
Fox 38 Float Factory 170, Grip X2, 15x110, Kashima |
| Travel | 170mm |
| Rear Suspension |

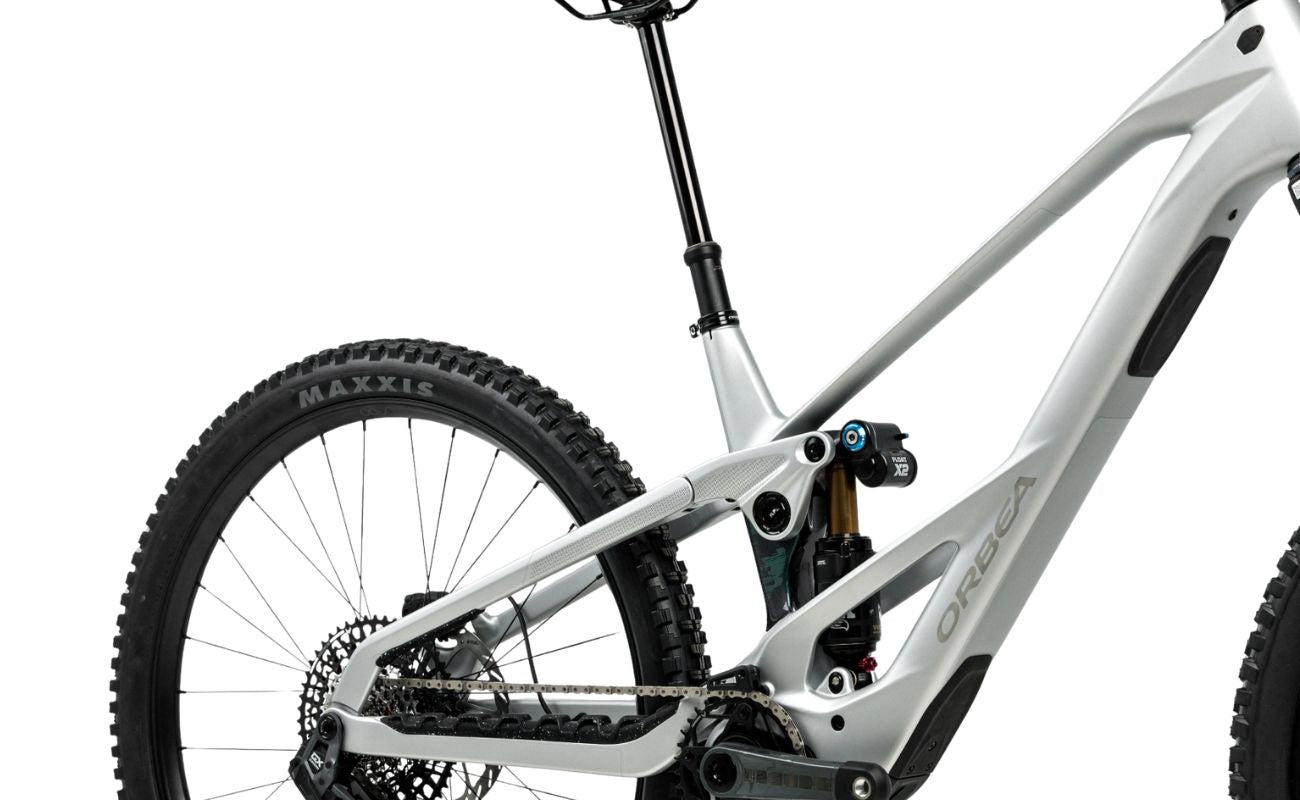

Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm |
| Wheel Size | 29/27.5" mullet |
| Wheels |
OQUO Mountain Control MC32TEAM POWER |
| Tyres (F) |
Maxxis Assegai 2.50" 60TPI Fold 3C MaxxGrip Exo+ TR |
| Tyres (R) | Maxxis Minion 2.40" 120x2TPI Fold 3C MaxxTerra DD TR |
| Rear Derailleur |
Shimano XT M8200 SGS Shadow Plus |
| Cassette |
Shimano CS-M8200 10-51t 12-Speed |
| Shifter |
Shimano XT M8200 I-Spec EV |
| Chain |
Shimano M6100 |
| Cranks | e*thirteen Helix Core e*spec |
| Brakes |
Shimano XT 8220 Hydraulic Disc |
| Handlebar |
OC Mountain Control MC20 Alu SL, Rise 35, Width 800 |
| Stem |
OC Mountain Control MC21, 0º |
| Saddle |
Fizik Aidon 208x145mm manganese rail |
| Seatpost |
OC Mountain Control MC22, 31.6mm, Dropper |
| Bike Weight |
Approx 22kg inc battery |
| Carry Capacity | 135kg inc bike |
| Warranty - Drive System | Avinox System: Two years |
| Warranty - Frame |
Orbea Frame: Lifetime |
| Lights - Front | N.A. Pre-wired |
|---|---|
| Computer Mount | OC Computer Mount CM-05, Garmin/Sigm |
| Mudguards |
N/A |
| Tools |
N/A |
Description
Premium race-ready performance inspired by Orbea's World Cup-winning gravity platform. The Orbea Wild LT H-Team 2027 combines the powerful DJI Avinox M2S drive system with an advanced high polished alloy frame and the same race-proven suspension philosophy that underpins the Rallon. Designed for aggressive trail and enduro riding, it delivers exceptional climbing efficiency, high-speed stability and confidence on the most demanding terrain. The H-Team is the top alloy model in the range and features the same premium Fox 38 Factory suspension package as on the carbon M-TEAM version.
170mm of Fox 38 Factory suspension with Shimano XT drivetrain. Built to handle big hits and fast descents, the Wild LT H-Team features the crisp, fast shifting Shimano XT 12-speed gearing, a Fox 38 Float Factory fork with 170mm of travel, Kashima coating and the latest Grip X2 damper. A custom-tuned Fox Float X2 Factory Trunnion rear shock delivers 170mm of highly adjustable rear travel, providing outstanding traction, support and composure through rock gardens, steep descents and rough trail conditions.
Avinox M2S power with an 800Wh battery for all-day adventures. The Wild LT H-Team is powered by the advanced Avinox M2S drive system, delivering up to 130Nm of torque and responsive assistance exactly when you need it. Like all Orbea Wild LT models it has Orbea's custom RS tune as well as the Avinox app options. Combined with a high-capacity 800Wh battery, it offers impressive range for longer rides.
Contact us to order and for assistance with customosation preferences. See the Wild M- TEAM if you prefer the carbon frame with RS Ecosystem, or the Wild LT H10 if you want a more affordable Wild LT, with Fox 38 Performance suspension.
