| Rider Height (cm) | Bike Frame (cm) | Bike Size |
|---|---|---|
| 153 - 172 | 43.8 | S |
| 164 - 183 | 47.1 | M |
| 176 - 195 | 50.4 | L |
| 187 - 204 | 53.7 | XL |
In Stock
0% FINANCE AVAILABLE

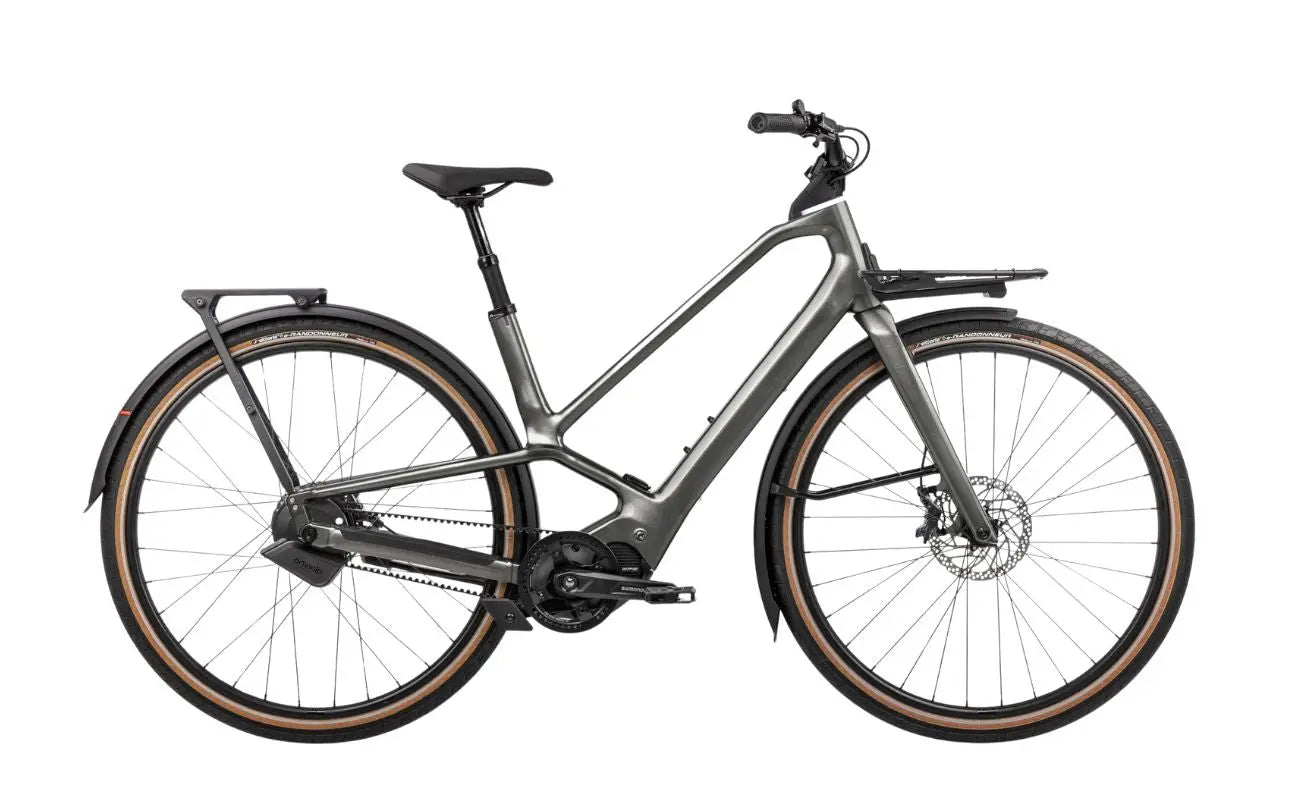

Orbea Diem 10 E-Bike - Custom Order
Full Specification
Orbea Diem 10 E-Bike - Custom Order
Bike Overview
Futuristic ground-breaking new urban design. The Orbea Diem 10 E-Bike is an innovative commuter electric bike which is futuristic in design and light and smooth to ride. Enjoy the best in tech and design with enviolo automatiq gears, carbon belt drive and Orbea's patented Diamond Glide frame, with innovative built in features which offer simplicity with the highest level of function.
Winner 2024 IF Design Award. Patented Diamond Glide Frame. The Diem is a radical-looking ebike showcasing Orbea's patented Diamond Glide frame design and winner of an IF Design Award. As well as being striking, the design maintains the stiffness required for an athletic ride performance with vertical flex to absorb vibrations and soften the ride.
Powered by Shimano EP600 with 630Wh high density battery. The Diem 10 has the compact Shimano EP600 motor which is strong (85Nm), lightweight and offers little resistance when pedalling without power. The clean lines are achieved by routing all cabling through the frame and the frame also houses the large 630Wh high-density battery which is provides up to 9 hours of riding.
Top tech with enviolo automatiq gears, carbon belt drive. Equipped for durability, simplicity and performance with Enviolo’s maintenance-free auto-shifting CVT (constant variable transmission) hub and Gates belt drive.
Intelligent integration of accessories. The Diem has a range of integrated accessories such as lights built into the head tube and seatpost which automatically switch on as light fades, and a custom kickstand incorporated into the chainstay. The top of the stem has a USB-C port, drawing charge from the battery to power accessories on the go. The Diem 10 version also comes with the custom front carrier.
Customise your Diem. The Diem is available with Orbea’s MyO program. Through this, you can specify your Diem with options on accessories, batteries and additional extras.
Contact us to order or for assistance to customise via MYO. Also available in the Diem 20 (in video below) if your prefer a more economical belt drive version and 5-speed gears.
EBike Technology
| System | Shimano |
|---|---|
| Motor | Shimano EP600, 85Nm |
| Battery |
Orbea Internal 630Wh |
| Range | Varies. Up to 9 hours /150km |
| Display |
Shimano EN600 |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
Bike Specification
| Frame |
Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12 Lifetime warranty (if register) |
|---|---|
| Sizes | S: 44, M: 47, L: 49 XL: 54 |
| Colours | Spaceship Green; Ivory White; Glitter Anthracite |
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thru Axle12x100mm |
| Wheel Size | 29" |
| Crankset |
Shimano Steps EM600 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar |
Orbea Urban, Integrated Light, Rise 0, Width 720 Opt: Rise 54, Width 700 |
| Brakes |
Shimano Cues U8020 Hydraulic Disc |
| Cassette |
Gates CDX 34t for Enviolo |
| Rear Derailleur |
Enviolo Automatiq, BT |
| Chain |
Gates CDX Belt |
| Chainring |
Gates CDX 46t w/chainguard |
| Wheels |
Alloy, Tubeless, 25c, 32H |
| Tires |
Schwalbe Marathon, 50-622, Reflective Tape |
| Seatpost |
Suspension Dropper DP01, 31.6mm, Suspension 30mm |
| Seatpost Lever | Shimano SL-MT500 |
| Saddle |
Selle Royal Vivo Ergo |
| Pedals | VP-537 Black |
| Weight | Approx 24.2kg |
Fitted Accessories
| Daylight Running Light |
Orbea integrated, USB-C charging point |
|---|---|
| Front Light | Supernova Starstream Pro, High Beam |
| Rear Light | Orbea Fender integrated, with alert light |
| Lock | No |
| Front Carrier | Orbea RF-01 Alloy, Max. 10Kg wtih Aluminium Front Basket with net |
| Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| Mudguards | Curana Apollo Orbit 60mm |
| Chainguard | Gates CDS |
| Kickstand | Orbea Diem Integrated |
| Bell | Knog OI Classic |
Futuristic ground-breaking new urban design. The Orbea Diem 10 E-Bike is an innovative commuter electric bike which is futuristic in design and light and smooth to ride. Enjoy the best in tech and design with enviolo automatiq gears, carbon belt drive and Orbea's patented Diamond Glide frame, with innovative built in features which offer simplicity with the highest level of function.
Winner 2024 IF Design Award. Patented Diamond Glide Frame. The Diem is a radical-looking ebike showcasing Orbea's patented Diamond Glide frame design and winner of an IF Design Award. As well as being striking, the design maintains the stiffness required for an athletic ride performance with vertical flex to absorb vibrations and soften the ride.
Powered by Shimano EP600 with 630Wh high density battery. The Diem 10 has the compact Shimano EP600 motor which is strong (85Nm), lightweight and offers little resistance when pedalling without power. The clean lines are achieved by routing all cabling through the frame and the frame also houses the large 630Wh high-density battery which is provides up to 9 hours of riding.
Top tech with enviolo automatiq gears, carbon belt drive. Equipped for durability, simplicity and performance with Enviolo’s maintenance-free auto-shifting CVT (constant variable transmission) hub and Gates belt drive.
Intelligent integration of accessories. The Diem has a range of integrated accessories such as lights built into the head tube and seatpost which automatically switch on as light fades, and a custom kickstand incorporated into the chainstay. The top of the stem has a USB-C port, drawing charge from the battery to power accessories on the go. The Diem 10 version also comes with the custom front carrier.
Customise your Diem. The Diem is available with Orbea’s MyO program. Through this, you can specify your Diem with options on accessories, batteries and additional extras.
Contact us to order or for assistance to customise via MYO. Also available in the Diem 20 (in video below) if your prefer a more economical belt drive version and 5-speed gears.
| System | Shimano |
|---|---|
| Motor | Shimano EP600, 85Nm |
| Battery |
Orbea Internal 630Wh |
| Range | Varies. Up to 9 hours /150km |
| Display |
Shimano EN600 |
| Remote | EN600-L |
| Charger | Orbea 2.Generation eBike Smart charger 42V/2-4A |
| Frame |
Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12 Lifetime warranty (if register) |
|---|---|
| Sizes | S: 44, M: 47, L: 49 XL: 54 |
| Colours | Spaceship Green; Ivory White; Glitter Anthracite |
| Fork | Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thru Axle12x100mm |
| Wheel Size | 29" |
| Crankset |
Shimano Steps EM600 |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Handlebar |
Orbea Urban, Integrated Light, Rise 0, Width 720 Opt: Rise 54, Width 700 |
| Brakes |
Shimano Cues U8020 Hydraulic Disc |
| Cassette |
Gates CDX 34t for Enviolo |
| Rear Derailleur |
Enviolo Automatiq, BT |
| Chain |
Gates CDX Belt |
| Chainring |
Gates CDX 46t w/chainguard |
| Wheels |
Alloy, Tubeless, 25c, 32H |
| Tires |
Schwalbe Marathon, 50-622, Reflective Tape |
| Seatpost |
Suspension Dropper DP01, 31.6mm, Suspension 30mm |
| Seatpost Lever | Shimano SL-MT500 |
| Saddle |
Selle Royal Vivo Ergo |
| Pedals | VP-537 Black |
| Weight | Approx 24.2kg |
| Daylight Running Light |
Orbea integrated, USB-C charging point |
|---|---|
| Front Light | Supernova Starstream Pro, High Beam |
| Rear Light | Orbea Fender integrated, with alert light |
| Lock | No |
| Front Carrier | Orbea RF-01 Alloy, Max. 10Kg wtih Aluminium Front Basket with net |
| Rear Carrier | Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg |
| Mudguards | Curana Apollo Orbit 60mm |
| Chainguard | Gates CDS |
| Kickstand | Orbea Diem Integrated |
| Bell | Knog OI Classic |
N/A
N/A
In Stock
0% FINANCE AVAILABLE
Orbea Diem 10 E-Bike - Custom Order
Regular price
$10,199
$10,199
Sale price
Regular price
Unit price
per
See full specification
Size Guide
Ask me anything about this bike
Call 07 2102 9775 or Submit Request
Our Quick Review
"Award-winning design. A striking lighter weight, long range commuter and lesiure ebike with enviolo automatiq gearing and belt drive. "
