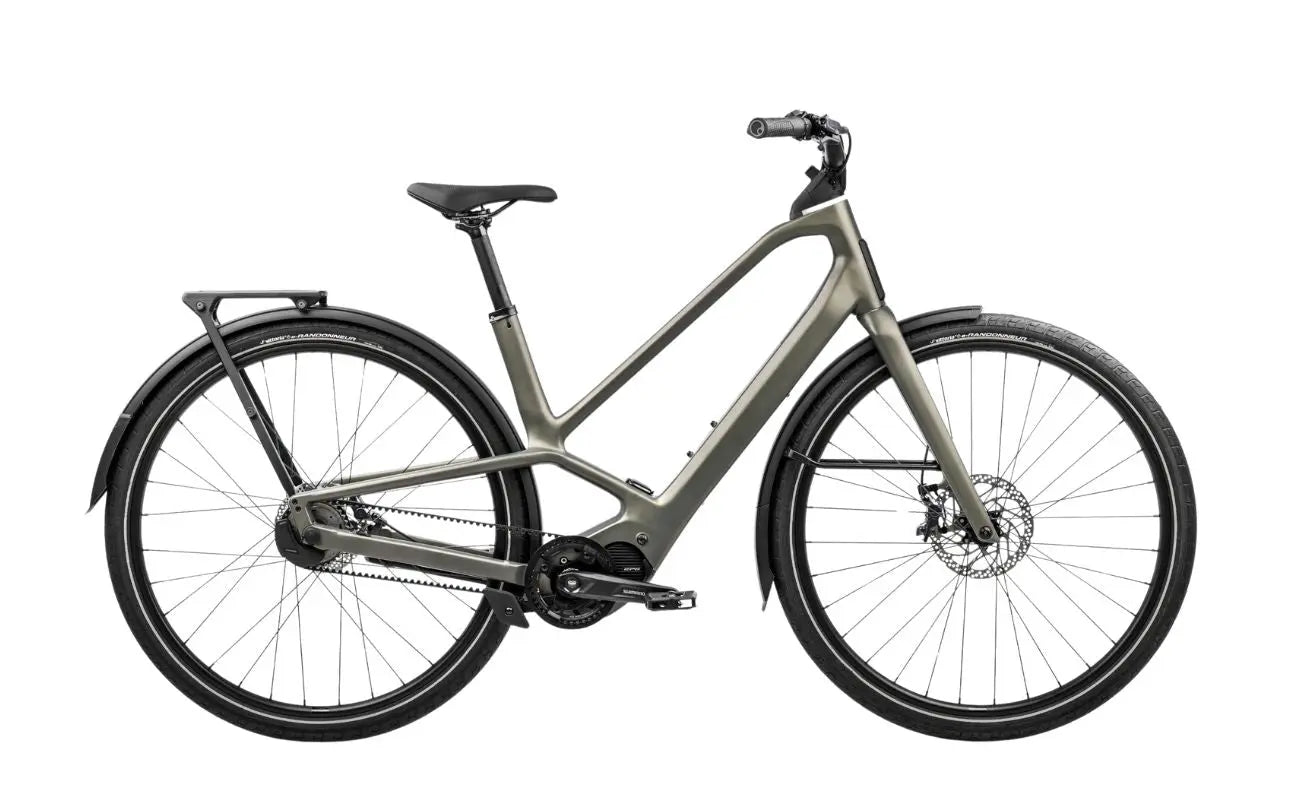

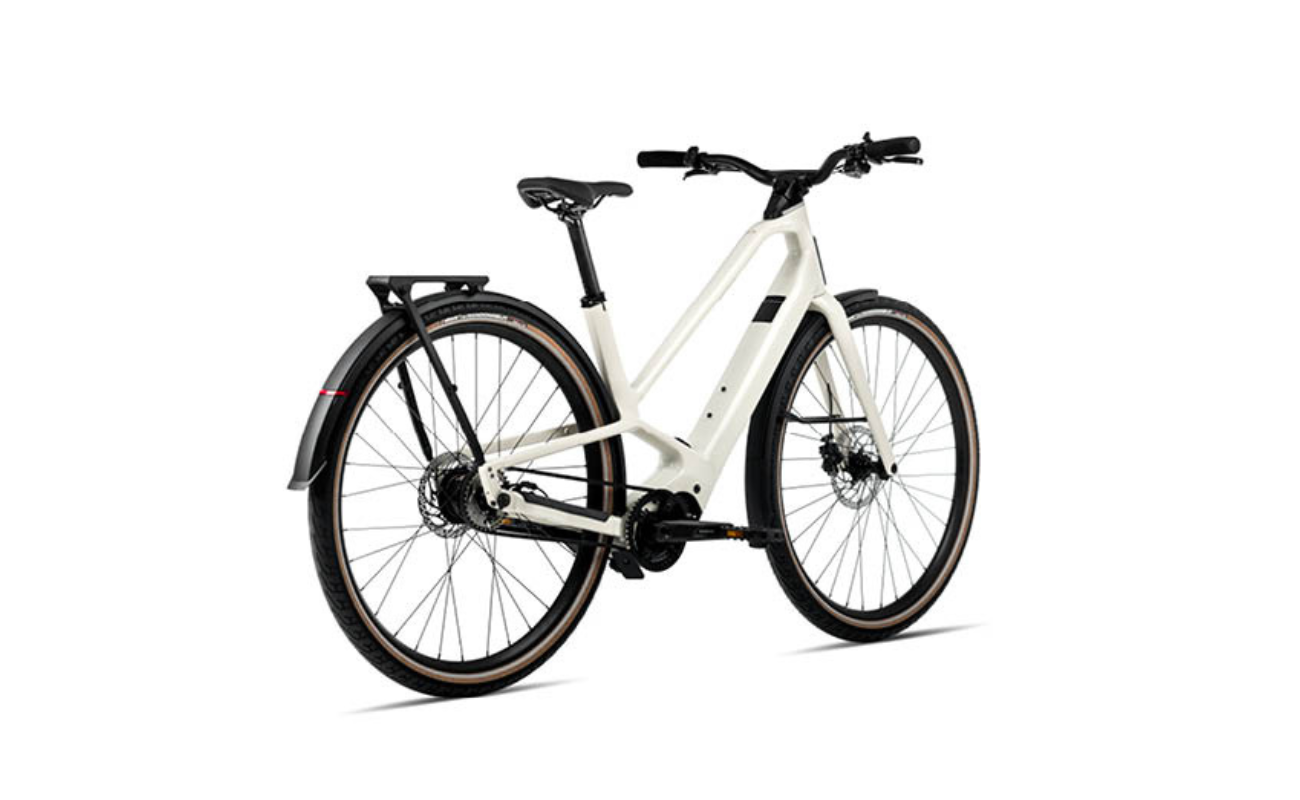

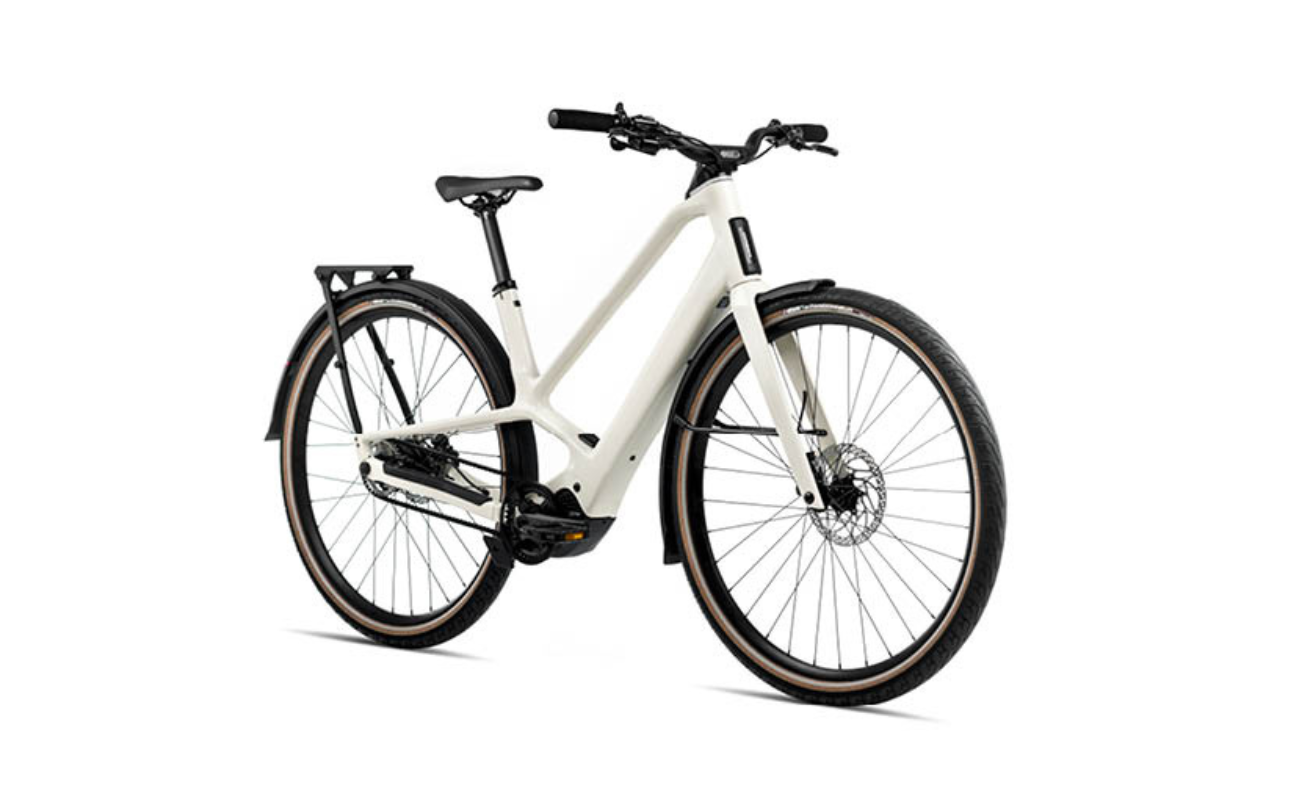

Orbea Diem 20 EBike

Available

Orbea Diem 20 EBike

Regular price $7,999
$7,999 Sale price Regular price
Hand Delivered to your Door. Australia-Wide
Have a question?Call Us 0721029775 or Submit Request
Features & Description
  • The Orbea Diem EBike is a futuristic urban electric bike which showcases Orbea's all-new patented Diamond Glide frame design. It is light in weight, smooth to ride and is powered by the strong and compact Shimano EP600 motor with a long-range 630Wh battery. Enjoy simplicity and low maintenance with carbon belt drive and Shimano Nexus 5-speed, and innovative built in features.

    • Drive System: Shimano EP6 mid-drive 250W
    • Motor: Shimano EP600 , 85Nm
    • Battery: Orbea Internal 630Wh (250Wh extender available)
    • Range: Varies. Up to 9 hours.
    • Quality: Carbon forks, Shimano 5-Speed gears, Carbon belt
    • Brand: Orbea
Shipping and delivery
We offer a range of solutions to deliver your electric bike to you from Instore Collection to Home Delivery to using a commercial courier. Once you place your order our team will be in touch to confirm timeframes and the final details.

Details

Futuristic ground-breaking new urban design. The Orbea Diem 20 EBike is an exciting new futuristic urban electric bike. It is light in weight, smooth to ride and is powered by the Shimano EP600 motor with long-range 630Wh battery. Enjoy simplicity and low maintenance with carbon belt drive and Shimano Nexus 5-speed and a range of practical built-in accessories.

Winner 2024 IF Design Award. Patented Diamond Glide Frame. The Diem is a radical-looking urban ebike showcasing Orbea's patented Diamond Glide frame design. Winner of an IF Design Award. As well as being very striking, the design maintains stiffness and solidity required for housing the mid-mount motor and battery while providing a smooth and athletic ride performance.

Powered by Shimano EP600 with 630Wh high density battery. The Diem 20 has the compact Shimano EP600 motor which is strong (85Nm), lightweight and offers little resistance when pedalling without power. The clean lines are achieved by routing all cabling through the frame and the frame also houses the large 630Wh high-density battery which is claimed to provide up to 9 hours of riding. Plus there is also the option to mount a 250Wh range extender.

Shimano 5-Speed gears with carbon belt drive. Equipped for durability and simplicity and performance with Shimano's Nexus 5-Speed internal hub and Gates belt drive.

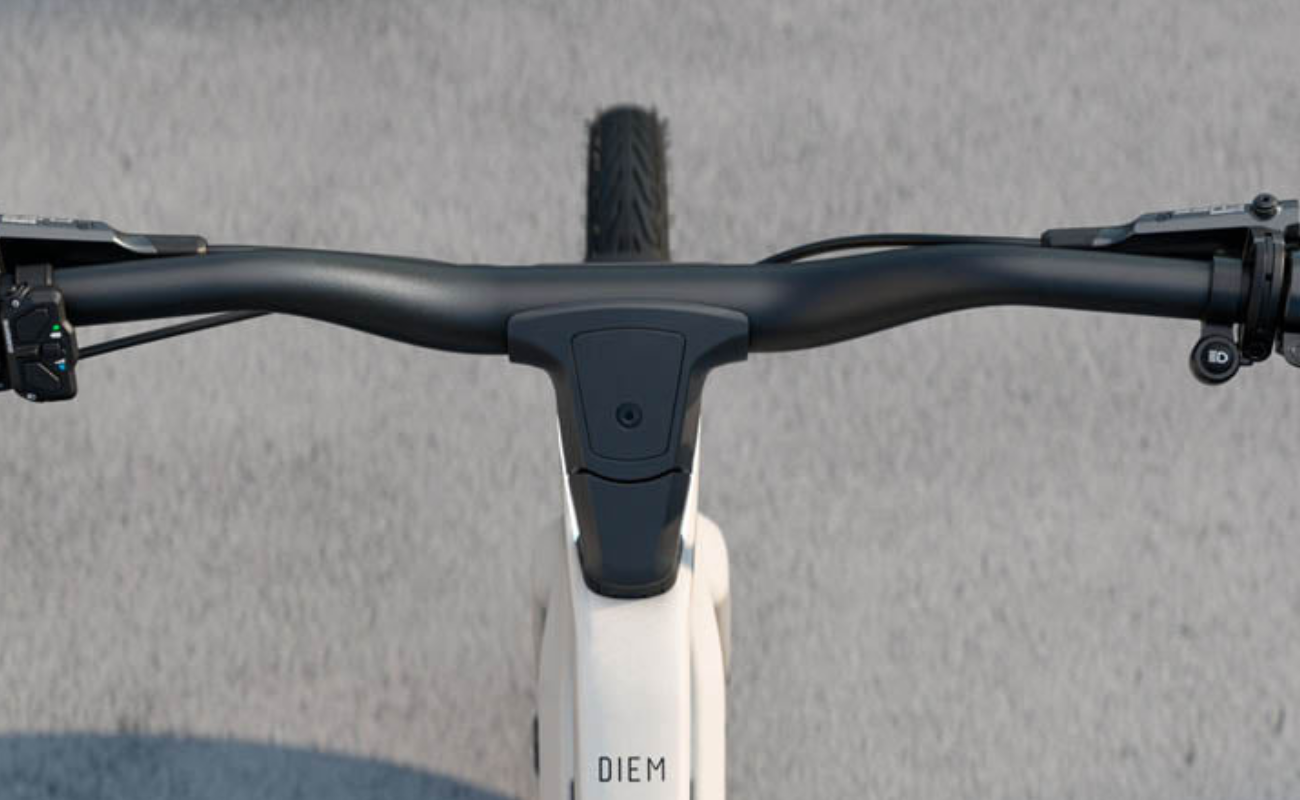

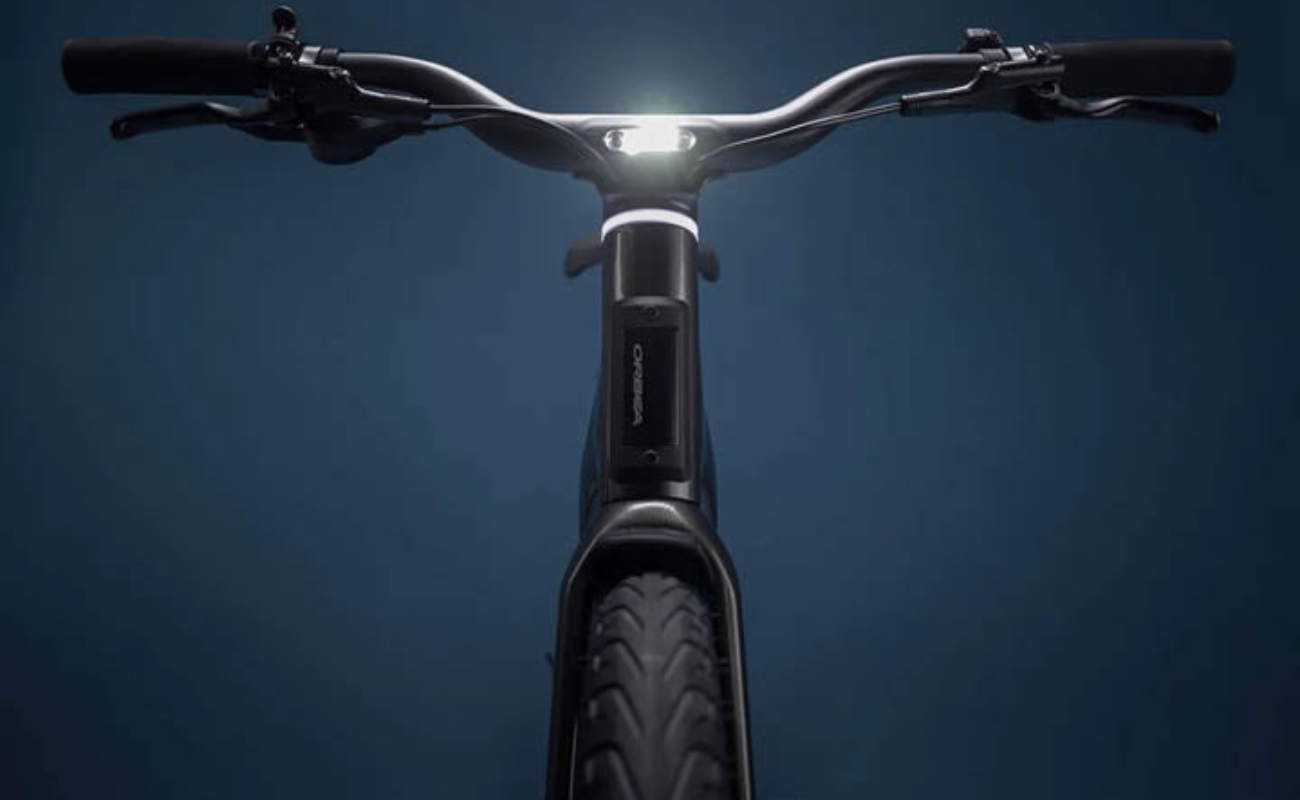

Intelligent integration of accessories. The Diem has a range of integrated accessories such as lights built into the head tube and seatpost which automatically switch on as light fades, and a custom kickstand incorporated into the chainstay. The top of the stem has a USB-C port, drawing charge from the battery to power accessories on the go.

Customise your Diem. The Diem is available with Orbea’s MyO program. Through this, you can specify your Diem with options on accessories, batteries and additional extras. For example, if you want a lighter version, the Diem can be specified with a lightweight 540Wh battery (120km range).

Contact us to order or for assistance to customise via MYO. See the Diem 10 if you prefer Enviolo Automatiq gears and require the front carrier.

System Shimano EP6 mid-drive 250W
Motor Shimano EP600, 85Nm
Battery Orbea Internal 630Wh
Optional 250Wh Range Extender

Range Varies. Up to 9 hours /150km
Display Shimano SC-EM800
Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Frame Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12
Lifetime warranty (if register)
Sizes S: 44, M: 47, L: 49 XL: 54

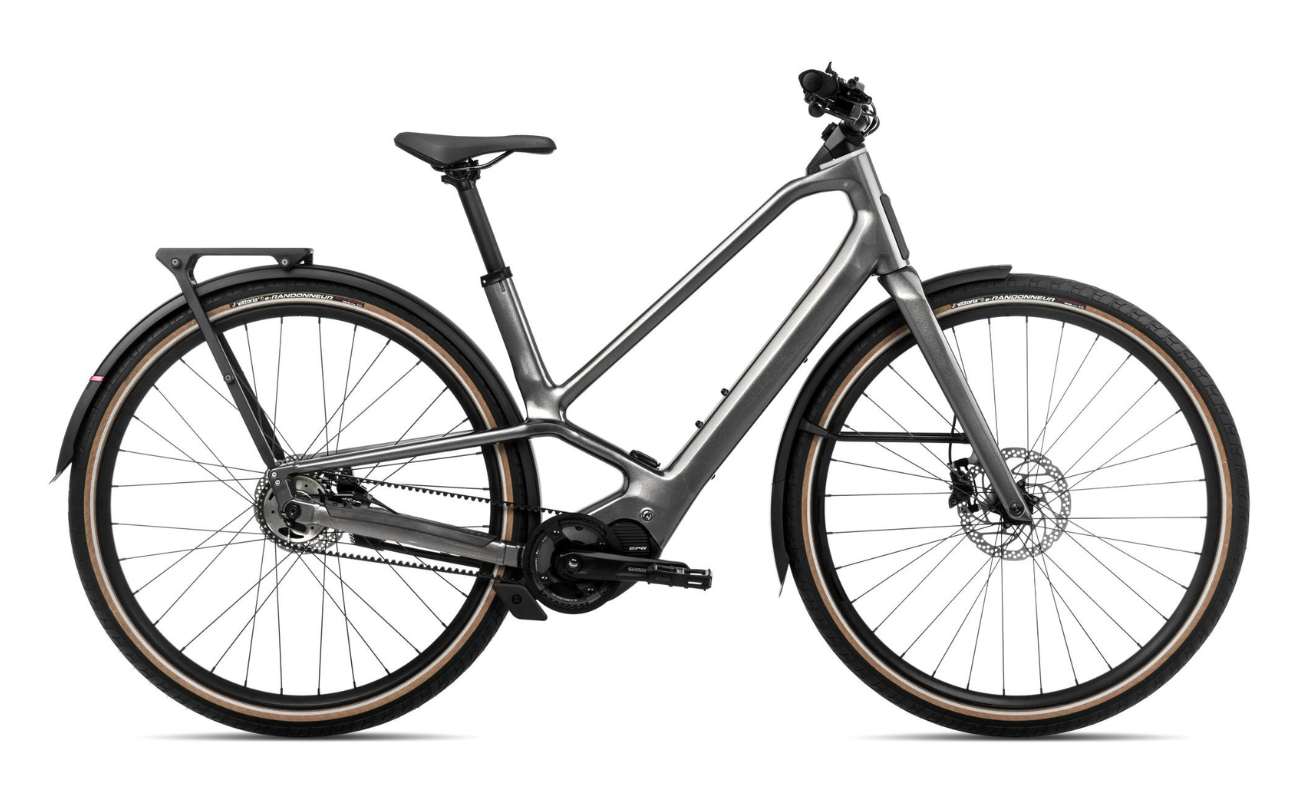

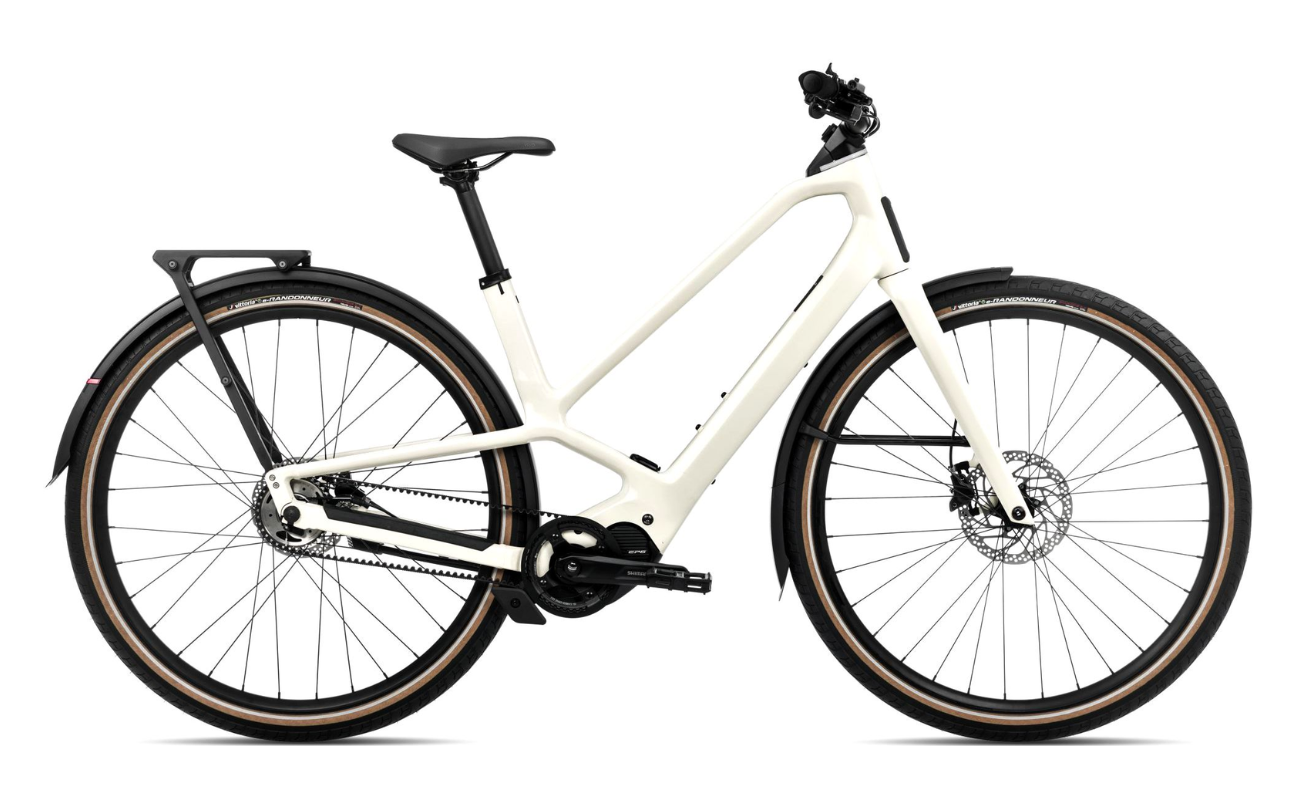

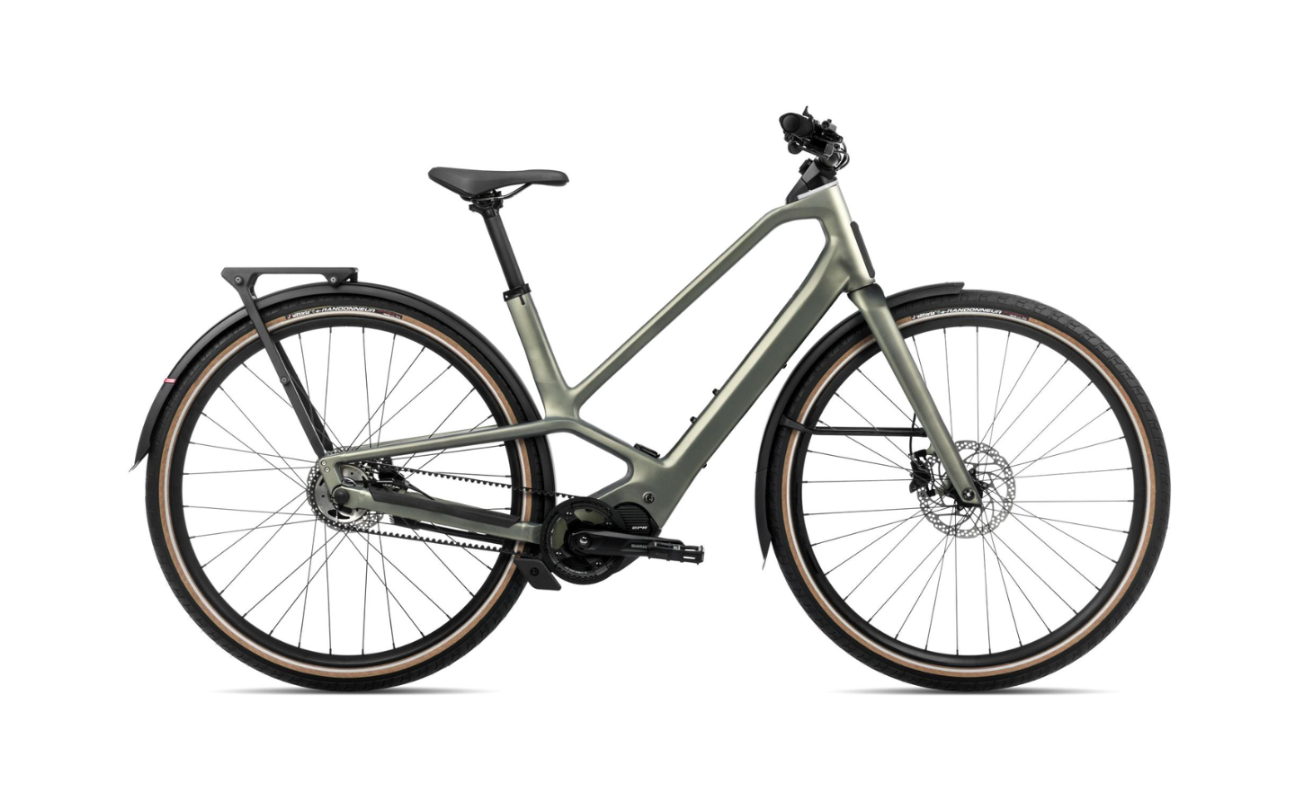

Colours Spaceship Green; Ivory White; Glitter Anthracite
Fork Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thru Axle12x100mm
Wheel Size 29"
Crankset Shimano Steps EM600
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 0, Width 720
Opt: Rise 54, Width 700
Brakes Shimano Cues U8020 Hydraulic Disc
Cassette
Gates CDX 34t for Shimano Inter 5e
Shifter Microshift TN71 for Nexus Inter 5
Rear Derailleur
Shimano Nexus Inter-5
Chain
Gates CDX Belt
Chainring Gates CDX 42t w/chainguard
Wheels
Alloy, Tubeless, 25c, 32H
Tires Vittoria e-Randonneur 50-622, Reflective band
Seatpost
Alloy 31.6x300mm Offset 0
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Weight Approx 23.6kg
Front Light Orbea integrated, USB-C charging point and Supernova Starstream Pro, High Beam
Rear Light Orbea Fender integrated, with alert light
Lock No
Front Carrier Opt: Orbea Front Carrier, 10kg

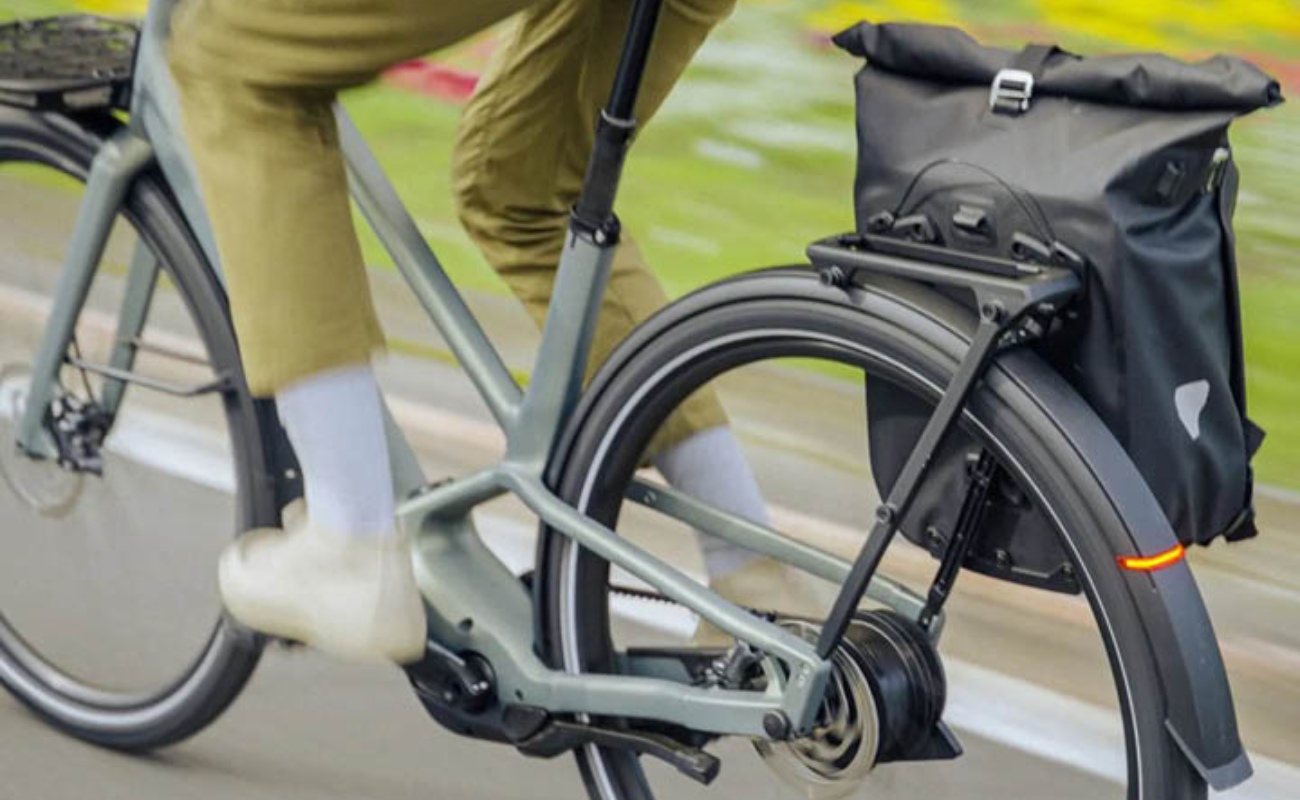

Rear Carrier Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Opt: Orbea RR-02 Alloy, w/Mik HD & Ortlieb QL3.1 system. Max. 30Kg
Mudguards Curana Apollo Orbit 60mm
Chainguard Gates CDS
Kickstand Orbea Diem Integrated
Bell Knog OI Classic
