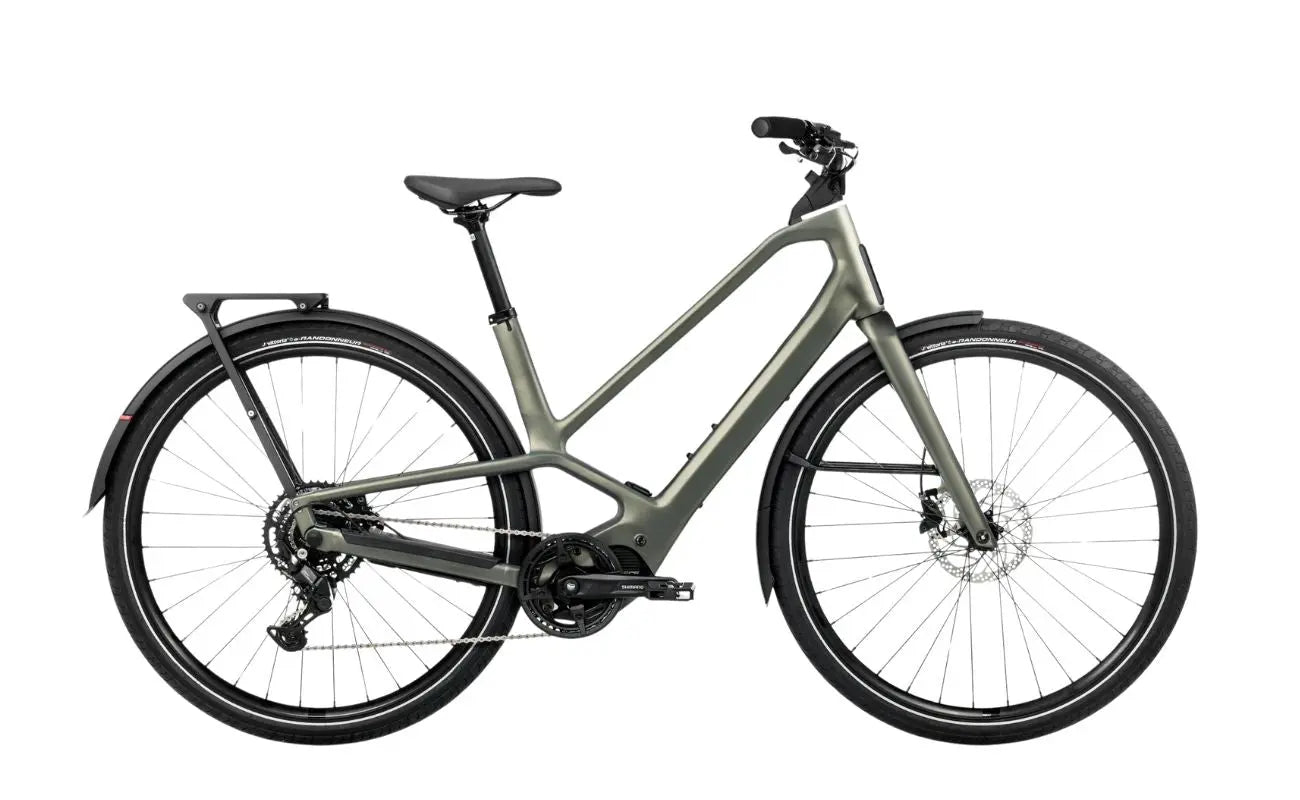

Orbea Diem 30 EBike

Available

Orbea Diem 30 EBike

Regular price $6,599
$6,599 Sale price Regular price
Hand Delivered to your Door. Australia-Wide
Have a question?Call Us 0721029775 or Submit Request
Features & Description
  • The Orbea Diem EBike 30 is the lightest version in the award-winning Diem range. With Orbea's all-new patented Diamond Glide frame design, it is smooth and comfortable to ride and a classy everyday ride. It is powered by the strong and compact Shimano EP600 motor with a large 540Wh battery and has the 9-speed Shimano Cues drivetrain.

    • Drive System: Shimano EP6 mid-drive 250W
    • Motor: Shimano EP600 , 85Nm
    • Battery: Orbea Internal 540Wh (250Wh extender available)
    • Range: Varies. Up to 7 hours.
    • Quality: Carbon forks, Shimano 9-Speed gears with chain, inbuilt lighting
    • Brand: Orbea
Shipping and delivery
We offer a range of solutions to deliver your electric bike to you from Instore Collection to Home Delivery to using a commercial courier. Once you place your order our team will be in touch to confirm timeframes and the final details.

Details

Innovative new urban design. The Orbea Diem 30 is the lightest and most economical version in the award-winning Diem range. With Orbea's all-new patented Diamond Glide frame design, it is smooth and comfortable to ride and a classy everyday ride. It is powered by the strong and compact Shimano EP600 motor with a large 540Wh battery and has the 9-speed Shimano Cues drivetrain and a range of practical built-in accessories.

Winner 2024 IF Design Award. Patented Diamond Glide Frame. The Diem is a radical-looking urban ebike showcasing Orbea's patented Diamond Glide frame design. Winner of an IF Design Award. As well as being very striking, the design maintains stiffness and solidity required for housing the mid-mount motor and battery while providing a smooth and athletic ride performance.

Powered by Shimano EP600 with 540Wh high density battery. The Diem 30 has the compact Shimano EP600 motor which is strong (85Nm), lightweight and offers little resistance when pedalling without power. The clean lines are achieved by routing all cabling through the frame and the frame also houses the large 540Wh high-density battery. Plus there is also the option to mount a 250Wh range extender.

Shimano 9-Speed gears with eGlide chain. Equipped for simplicity and performance with the Shimano Cues 9-Speed gearing system, eGilde chain and Shimano hydraulic disc brakes.

Intelligent integration of accessories. The Diem has a range of integrated accessories such as lights built into the head tube and seatpost which automatically switch on as light fades, and a custom kickstand incorporated into the chainstay. The top of the stem has a USB-C port, drawing charge from the battery to power accessories on the go.

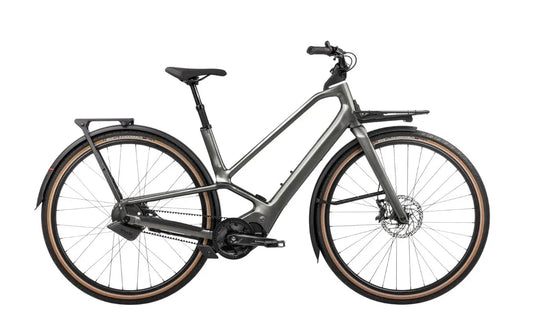

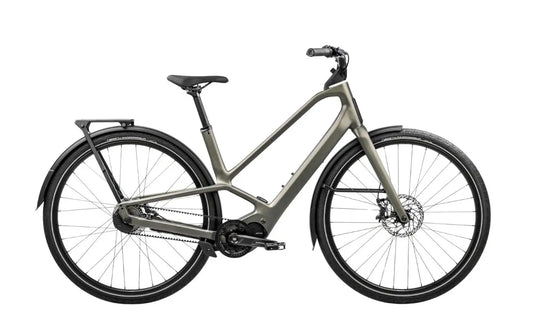

Contact us to order or for assistance to customise via MYO. See the Diem 10 if you prefer Enviolo Automatiq gears and require the front carrier or the Diem 20 if you want a more economical belt drive with 5-speed internal gears.

System Shimano EP6 mid-drive 250W
Motor Shimano EP600, 85Nm
Battery Orbea Interna 540Wh
Optional 250Wh Range Extender

Range Varies. Up to 7 hours /120km
Display n.a
Remote EN600-L
Charger Orbea 2.Generation eBike Smart charger 42V/2-4A
Frame Orbea Diem Hydro High Polished 2024, Flex Tech, 135x9 / 142x12
Lifetime warranty (if register)
Sizes S: 44, M: 47, L: 49 XL: 54
Colours Spaceship Green; Ivory White; Glitter Anthracite
Fork Orbea Diem carbon fork, full carbon, 1" 1/8 - 1" 1/5 , thru axle 12x1, post mount disc mount, Thru Axle12x100mm
Wheel Size 29"
Crankset Shimano Steps EM600
Headset FSA 1-1/2" Integrated Aluminium Cup
Handlebar Orbea Urban, Integrated Light, Rise 54, Width 700
Brakes Shimano MT201 Hydraulic Disc
Cassette
Shimano CS-LG300 11-46t 9-Speed
Shifter Shimano Cues SL-U4000
Rear Derailleur
Shimano Cues U4000 GS Shadow
Chain
KMC eGlide
Chainring Alloy 40t w/chainguard
Wheels
Alloy, Tubeless, 25c, 32H
Tires Vittoria e-Randonneur 50-622, Reflective band
Seatpost
Alloy 31.6x300mm Offset 0
Saddle Selle Royal Vivo Ergo
Pedals VP-537 Black
Weight Approx 23.6kg
Front Light Orbea integrated, USB-C charging point and Supernova Starstream Pro, High Beam
Rear Light Orbea Fender integrated, with alert light
Lock No
Front Carrier Opt: Orbea Front Carrier, 10kg
Rear Carrier Orbea RR-01 Alloy, w/Mik & Mik Side and Ortlieb QL3.1 system. Max. 20Kg
Opt: Orbea RR-02 Alloy, w/Mik HD & Ortlieb QL3.1 system. Max. 30Kg
Mudguards Curana Apollo Orbit 60mm
Kickstand Orbea Diem Integrated
Bell Knog OI Classic
